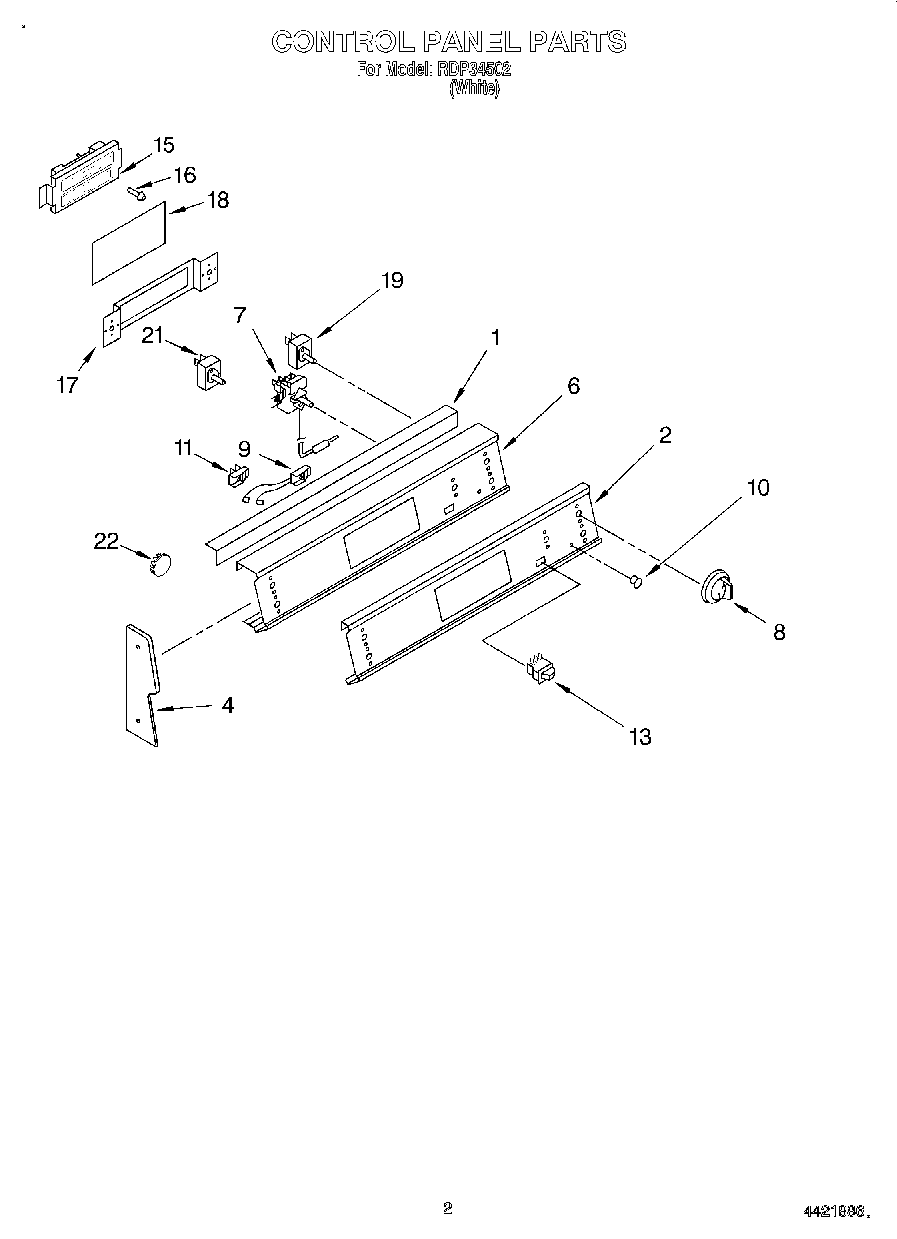

RDP34502 02 – CONTROL PANEL

RDP34502 02 – CONTROL PANEL

Written by

in

RDP34502 02 – CONTROL PANEL

Products

PositionProduct
1Cover, Lamp
2Panel, Control (Overlay)
4End Cap (Left)
4End Cap (Right)
6Panel, Control (Screw, (2) 8 x 3/8)
6Panel, Control
7Thermostat
8Knobs, Control (6)
9Light, Indicator (Oven – Thermostat)
9Light, Indicator (Switch, Selector (2))
10WP9750343 Whirlpool Light Lens
11Light Module
13Switch, Oven Light
15Timer
16Button, Timer (8)
17Bracket, Timer
17WP4159387 Whirlpool Compactor Screw
18Lens, Timer
19WP9750641 Whirlpool Infinite Switch
19WP9750638 Whirlpool Infinite Switch
19Infinite Switch (Screw (8) 8-32 x 3/16)
21Switch, Selector
21W11245710 Whirlpool Refrigerator Screw
22Button, Plug
