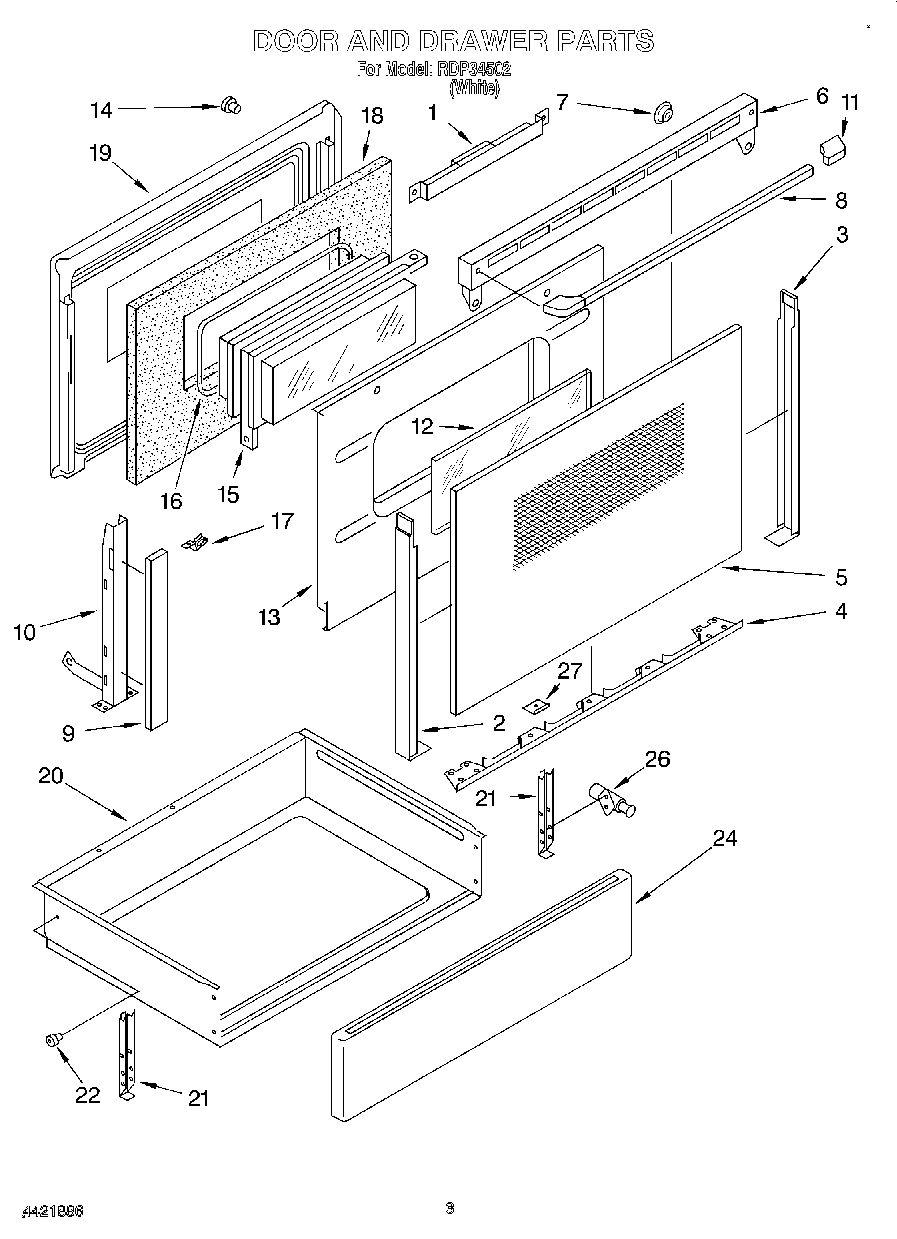

RDP34502 03 – DOOR AND DRAWER

RDP34502 03 – DOOR AND DRAWER

Written by

in

RDP34502 03 – DOOR AND DRAWER

Products

PositionProduct
1Channel, Heat
2Trim, Door-Left (Black)
3Trim, Door-Right (Black)
4Trim, Door Bottom (Black)
5Glass, Door Front (White)
6Vent, Door (Black)
6Vent, Door (Gasket, Vent)
6Vent, Door (Seal, Door Vent Side)
7Spacer, Door Vent
8Handle, Door
9Gasket, Door Glass
10WP9782033 Whirlpool Door Hinge
11End Cap, Handle (R or L)
11screw (2) 10-24 x 5/8
12Baffle, Glass
13Shield, Door
14238614 Whirlpool Bumper Hinge
15Window Pack (2)
16Seal, Window
17Retainer, Glass
18WPW10208653 Whirlpool Insulation
19Liner, Door
20Drawer & Roller
21WP4159387 Whirlpool Compactor Screw
21Bracket, Drawer
22814229 Whirlpool Primary Roller
24Screw (4) 10 x 1/2
24Front, Drawer (White)
26WPL 9780806
26Latch, Drawer
26WP90296 Whirlpool Clip
27Retainer, Glass
