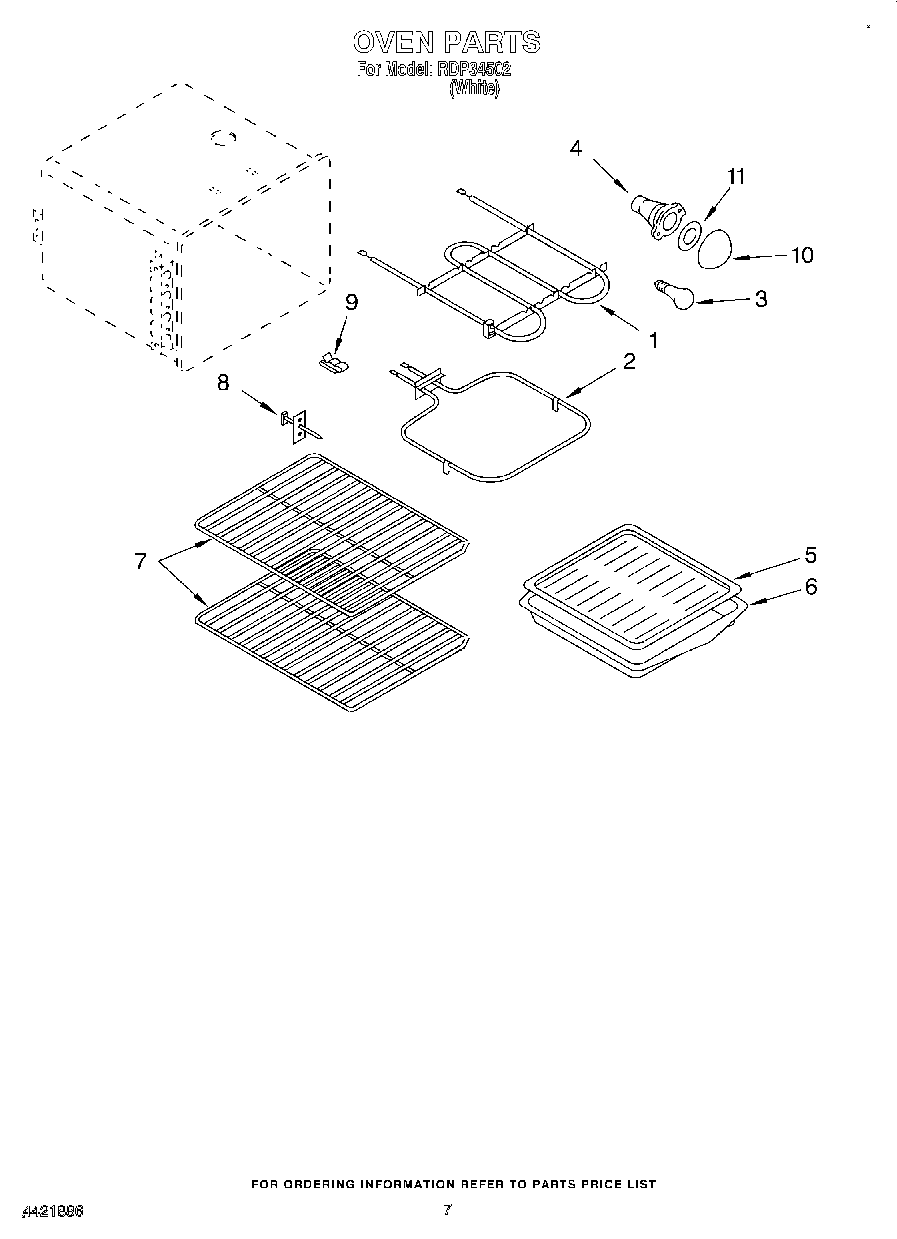

RDP34502 05 – OVEN, LIT/OPTIONAL

RDP34502 05 – OVEN, LIT/OPTIONAL

Written by

in

RDP34502 05 – OVEN, LIT/OPTIONAL

Products

Position	Product
	WPL 9751003
	WPL 9781445
	WPL 9781444
	WPL 9781218
	WPL 9751014
	WPL LIT4317161
	WPL 9781461
	WPL 9781296
	Hanger, Cable
	WPW10339879 Whirlpool Wire Tie
	WPL 9781446
	WPL 9750744
	WPL LIT9781383
	Label, Instruction (Lamp Cover)
	Wiring Diagram
	WPL LIT9781382
	PT400 Whirlpool Range Power Cord
1	Element, Broil
2	340184 Whirlpool Screw
2	Screw
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
5	Grill, Broiler
6	Pan, Broiler
7	Rack, Standard
8	Limit Switch, Saftey
8	WP4159387 Whirlpool Compactor Screw
9	98005642 Whirlpool Clip
10	WP9781049 Whirlpool Light Lens
11	Wire (14 Ga. 150 c Orange)
11	Wire (14 Ga. 150 c Green)
11	Wire (14 Ga. 150 c Brown)
11	Wire (14 Ga. 150 c Yellow)
11	Insulation, Rear
11	Insulation, Wrap
11	Grease
11	8212471 Whirlpool Oven Paint
11	1
11	Wire (14 Ga. 200 c Brown)
11	18 Ga. 80~c Rating (Red)
11	Wire (12 Ga. 150 c Black)
11	Golden Harvest (Uncut)
11	Wire (14 Ga. 150 c Blue)
11	WPL 72112
11	Platinum (Uncut)
11	Enamal, Toast (1 Qt. Uncut)
11	Paint, Spray (13 Oz.) (Platinum)
11	Toast
11	Golden Harvest
11	72113 Whirlpool Touch-Up Paint
11	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
11	Almond (Uncut)
11	WP72107 Whirlpool Touchup
11	799344 Whirlpool Refrigerator Paint
11	72017 Whirlpool Appliance Touch-Up Paint White
11	350956 Whirlpool Spray Assembly
11	350942 Whirlpool Spray Paint
11	511873 Whirlpool Refrigerator Paint
11	WPL 799832
11	242831 Whirlpool Oven Wire
11	WP3184533 Whirlpool Range Light Lens Gasket
11	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
11	Paint, Spray 13 Oz. (Avocado)
11	paint, spray 13 oz. (coffee)
11	Paint, Touch-Up 1/2 Oz. (Coffee)
11	72109 Whirlpool Dacor Avocado Touch-Up Paint
11	285006 Whirlpool Spray
11	Wire, 25“ Roll (White 14 GA.)
11	Wire, 25` Roll (Red 14 Ga.)
11	Wire, 25` Roll (Black 14 Ga.)
11	WA906B Whirlpool Cooktop Glass Scraper
11	FOIL, ALUMINUM OVEN (18“ X 25 )
11	350930 Whirlpool White Spray Paint
