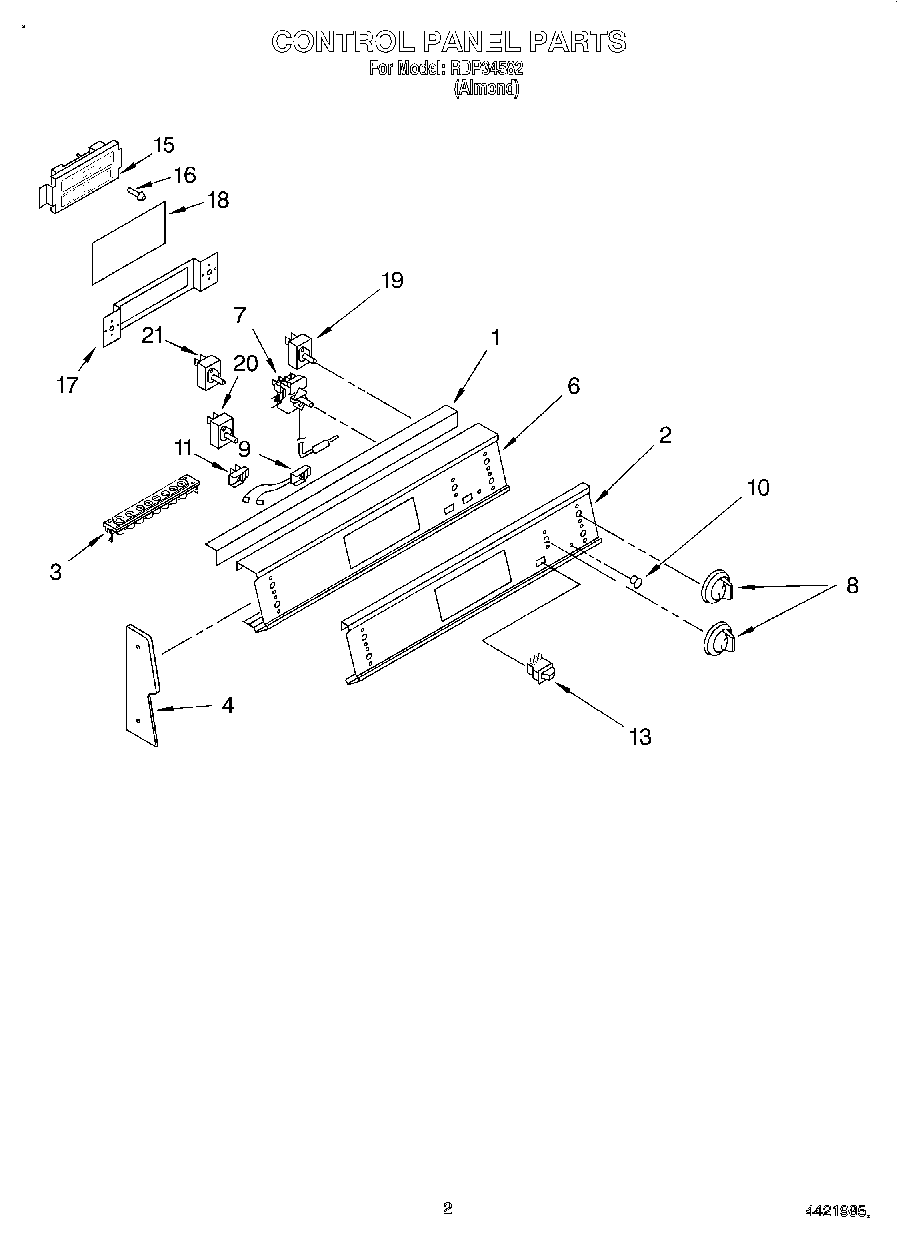

RDP34582 02 – CONTROL PANEL

Products

PositionProduct
1Cover, Lamp
2Panel, Control (Overlay)
3WP112432 Whirlpool Nut Assembly
3Screw, (2) 10-16 x 1
3WP8203546 Whirlpool Terminal Block
4End Cap (Right)
4End Cap (Left)
6Panel, Control (Screw, (2) 8 x 3/8)
6Panel, Control
7Thermostat
8Knobs, Control (6)
9Light, Indicator (Switch, Selector (2))
9Light, Indicator (Oven – Thermostat)
10WP9750343 Whirlpool Light Lens
11Light Module
13Switch, Oven Light
15Timer
16Button, Timer (8)
17Bracket, Timer
17WP4159387 Whirlpool Compactor Screw
18Lens, Timer
19WP9750638 Whirlpool Infinite Switch
20WP9750641 Whirlpool Infinite Switch
20WP3400882 Whirlpool Screw
21W11245710 Whirlpool Refrigerator Screw
21Switch, Selector
