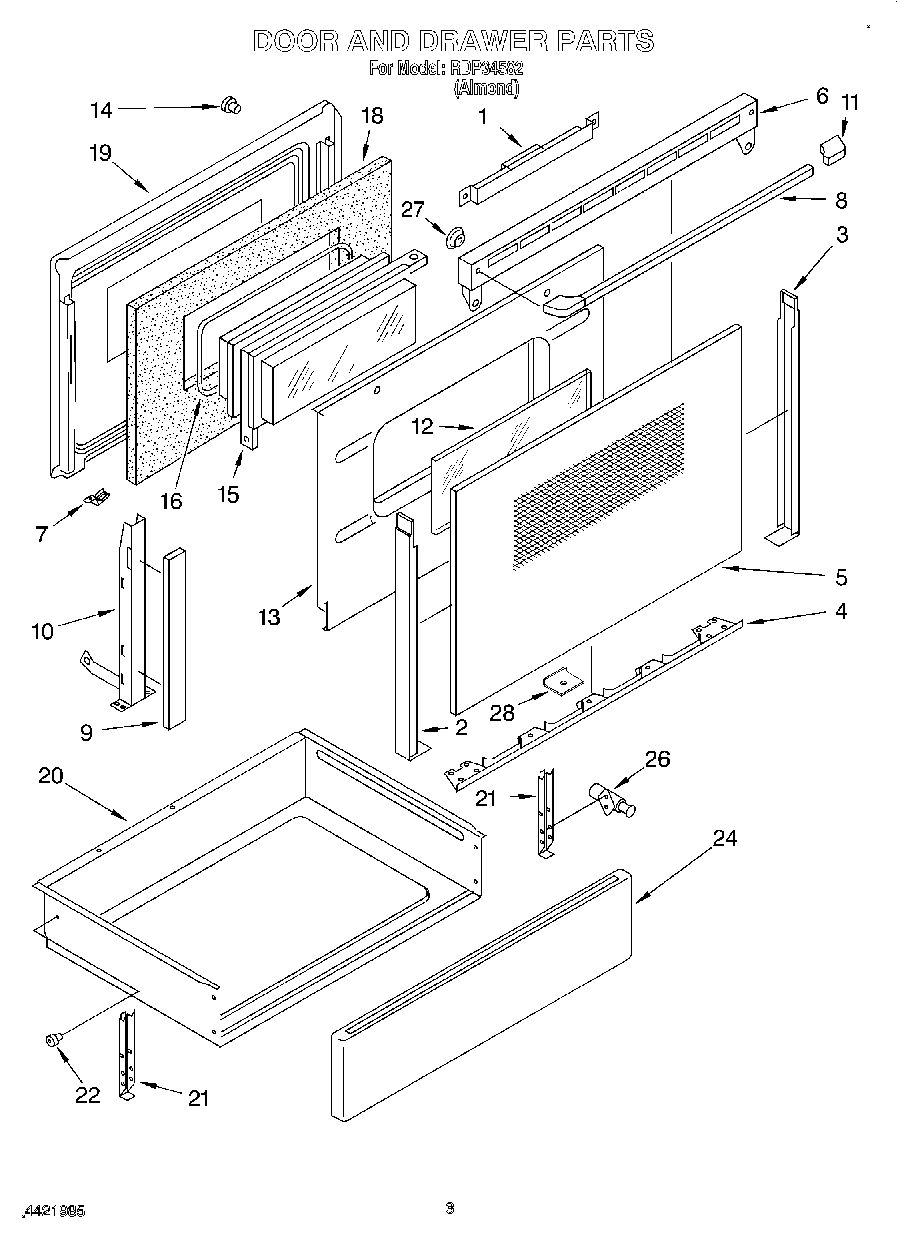

RDP34582 03 – DOOR AND DRAWERadmin2025-04-26T08:45:58+00:00RDP34582 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Channel, Heat |
| 2 | Trim, Door-Left (Black) |
| 3 | Trim, Door-Right (Black) |
| 4 | Trim, Door Bottom (Black) |
| 5 | Glass, Door Front (White) |
| 6 | Vent, Door (Black) |
| 6 | Vent, Door (Gasket, Vent) |
| 6 | Back Splash (Screw (4) 10AB x 1/2``) |
| 6 | Vent, Door (Seal, Door Vent Side) |
| 7 | Retainer, Glass |
| 8 | Handle, Door |
| 9 | Gasket, Door Glass |
| 10 | WP9782033 Whirlpool Door Hinge |
| 11 | screw (2) 10-24 x 5/8 |
| 11 | End Cap, Handle (R or L) |
| 12 | Baffle, Glass |
| 13 | Shield, Door |
| 14 | 238614 Whirlpool Bumper Hinge |
| 15 | Window Pack (2) |
| 16 | Seal, Window |
| 18 | WPW10208653 Whirlpool Insulation |
| 19 | Liner, Door |
| 20 | Drawer & Roller |
| 21 | Bracket, Drawer |
| 21 | WP4159387 Whirlpool Compactor Screw |
| 22 | 814229 Whirlpool Primary Roller |
| 24 | Front, Drawer (Almond) |
| 24 | Screw (4) 10 x 1/2 |
| 26 | WPL 9780806 |
| 26 | Latch, Drawer |
| 27 | Spacer, Door Vent |
| 28 | Retainer, Glass |
