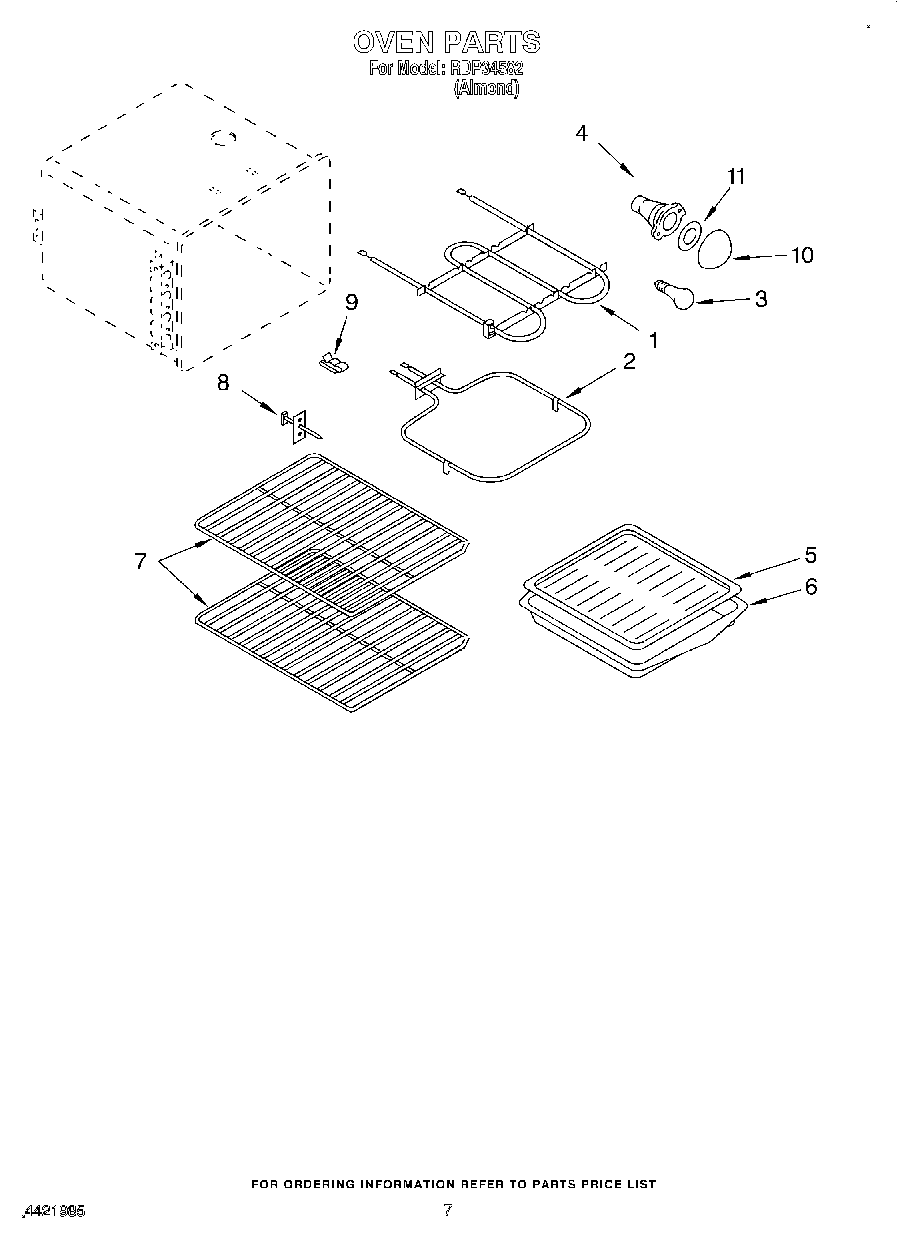

RDP34582 05 – OVEN, OPTIONAL

RDP34582 05 – OVEN, OPTIONAL

Written by

in

RDP34582 05 – OVEN, OPTIONAL

Products

Position	Product
1	Element, Broil
2	Screw
2	340184 Whirlpool Screw
2	ELMNT-BAKE
3	RANGE ONLY 40W 120V APPL BULB
4	W11594027 Whirlpool Range Oven Light Socket
6	4396923 Whirlpool Broil Pan Set Gray Porcelain
7	Rack, Standard
8	WP4159387 Whirlpool Compactor Screw
8	Limit Switch, Saftey
9	98005642 Whirlpool Clip
10	WP9781049 Whirlpool Light Lens
11	Wire (14 Ga. 150 c Yellow)
11	Wire (14 Ga. 150 c Orange)
11	Wire (14 Ga. 150 c Green)
11	Wire (14 Ga. 150 c Brown)
11	Wire (14 Ga. 150 c Blue)
11	WP3184533 Whirlpool Range Light Lens Gasket
11	242831 Whirlpool Oven Wire
11	WPL 9781540
11	Hanger, Cable
11	Wire (12 Ga. 150 c Black)
11	WPL 9781461
11	WPL 9781446
11	WPL 9781445
11	WPL 9781444
11	WPL 9781218
11	WPL 9751014
11	WPL 9751003
11	Grease
11	8212471 Whirlpool Oven Paint
11	Leveler (Thinner) (2oz.)
11	WPL 9750744
11	Washer (2)
11	1
11	Wire (14 Ga. 200 c Brown)
11	18 Ga. 80~c Rating (Red)
11	PT400 Whirlpool Range Power Cord
11	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
11	Enamal, Toast (1 Qt. Uncut)
11	Paint, Spray (13 Oz.) (Platinum)
11	Toast
11	Golden Harvest (Uncut)
11	Golden Harvest
11	SCREW
11	72113 Whirlpool Touch-Up Paint
11	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
11	Almond (Uncut)
11	WP72107 Whirlpool Touchup
11	799344 Whirlpool Refrigerator Paint
11	72017 Whirlpool Appliance Touch-Up Paint White
11	350956 Whirlpool Spray Assembly
11	Platinum (Uncut)
11	WPL 72112
11	350942 Whirlpool Spray Paint
11	Paint, Spray 13 Oz. (Avocado)
11	paint, spray 13 oz. (coffee)
11	Paint, Touch-Up 1/2 Oz. (Coffee)
11	72109 Whirlpool Dacor Avocado Touch-Up Paint
11	285006 Whirlpool Spray
11	WPW10339879 Whirlpool Wire Tie
11	Wire, 25“ Roll (White 14 GA.)
11	Wire, 25` Roll (Red 14 Ga.)
11	Wire, 25` Roll (Black 14 Ga.)
11	FOIL, ALUMINUM OVEN (18“ X 25 )
11	WPW10208653 Whirlpool Insulation
11	WPL 799832
11	511873 Whirlpool Refrigerator Paint
11	350930 Whirlpool White Spray Paint
