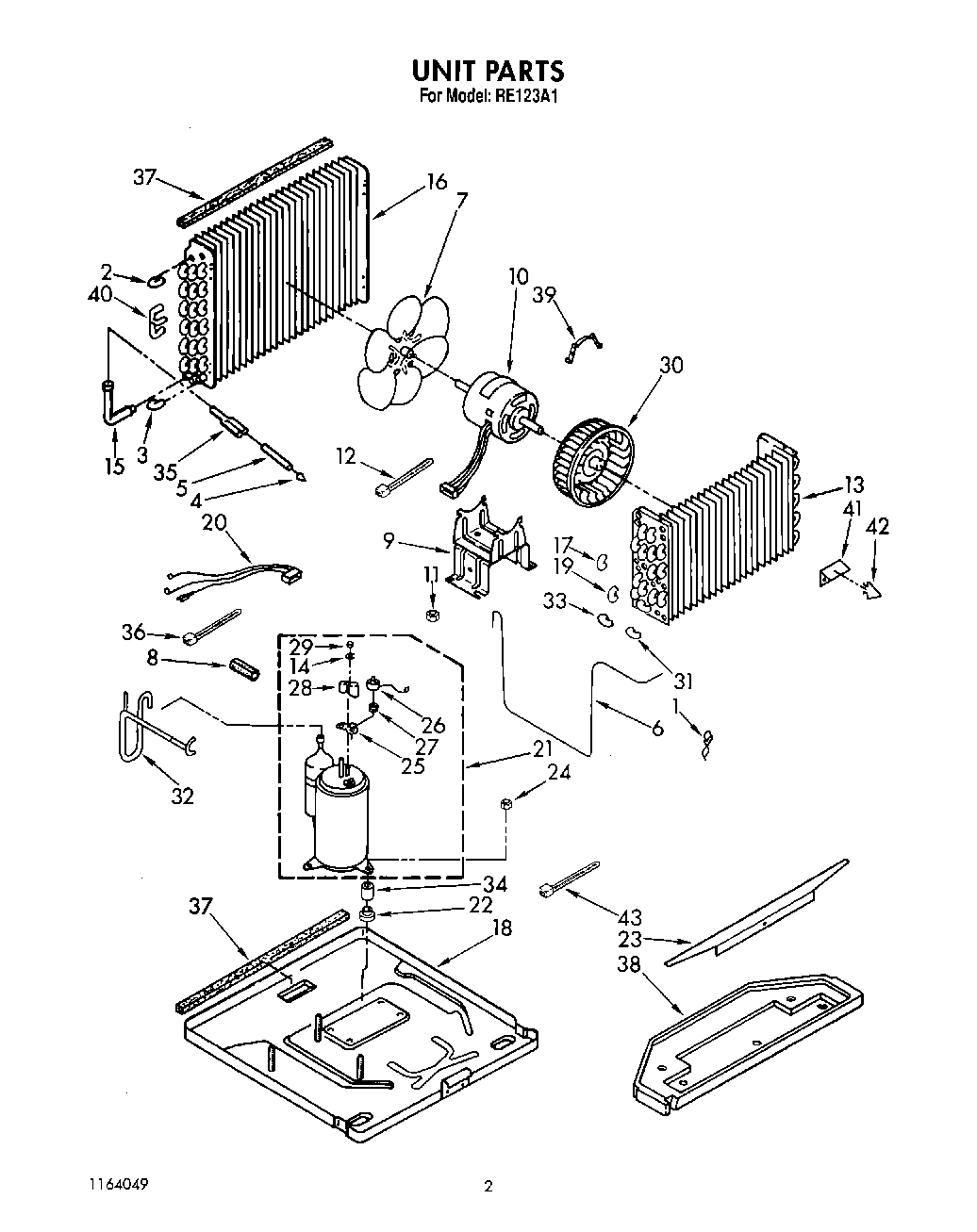

RE123A1 02 – UNIT, LITERATURE

Products

Position	Product
	Use & Care Guide
	Wiring Diagram
	Tech Sheet
	Instructions, Installation
	List, Repair Parts
1	Clamp (2)
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Item 4)
6	Tube, Restrictor (2)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
13	Evaporator
14	Gasket, Nut
15	Tube, 90~ Connect
16	Condenser
17	Bend, Return Evaporator (4)
18	Base
19	Return Bend (2)
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Cover, Pan
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Bend, Return Evaporator (11)
32	Tube, Suction
33	Bend, Return Evaporator (4)
34	Sleeve (3)
35	Tube, Flow Divider
37	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Return Bend 3-Way
41	Anticipator
42	Clip, Anticipator
43	WPW10339879 Whirlpool Wire Tie
