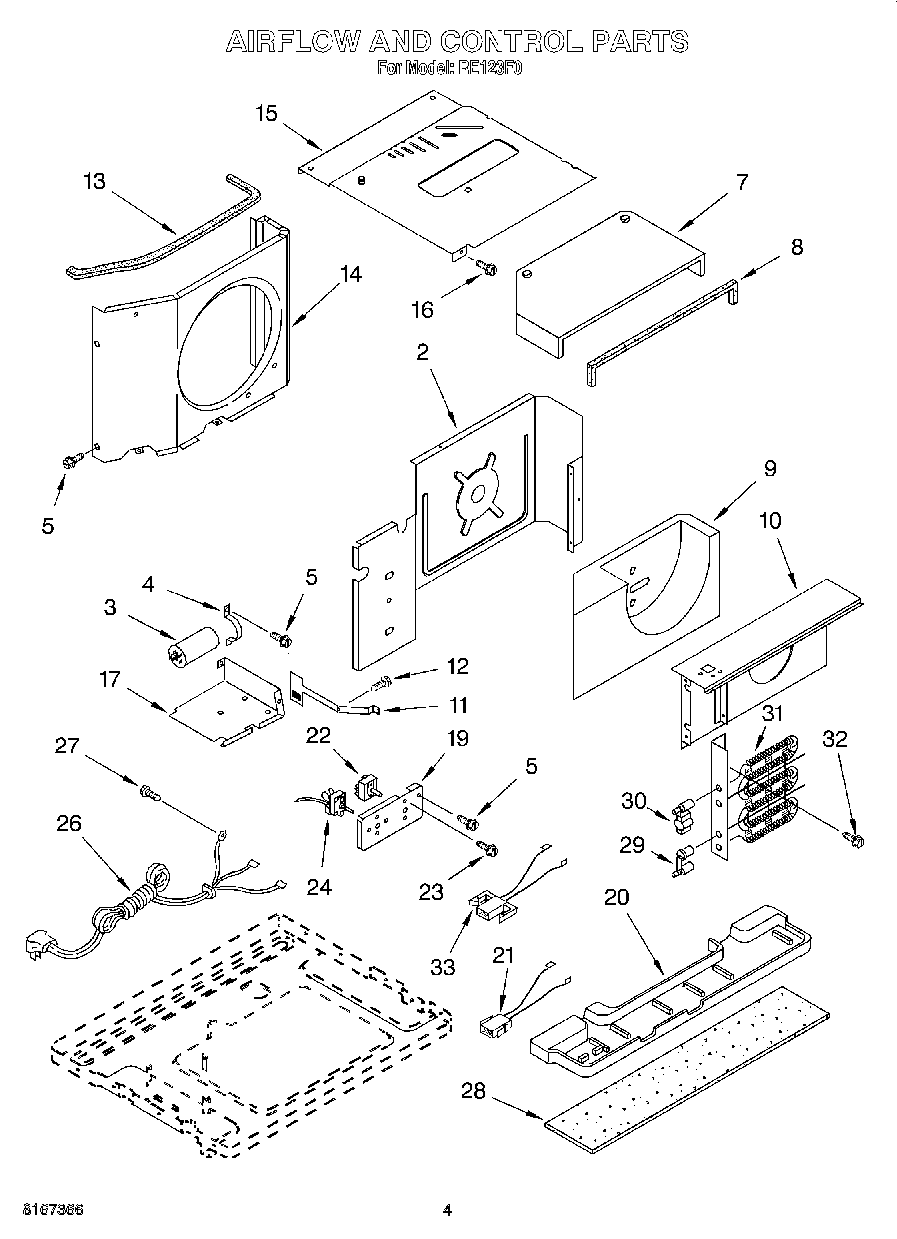

RE123F0 03 – AIR FLOW AND CONTROL

Products

Position	Product
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	WP489069 Whirlpool Compactor Screw
7	Hood, Air Housing
8	WP854334 Whirlpool Air Conditioner Sealing Strip
9	Housing, Air
10	Shroud, Evaporator
11	Door, Exhaust
12	Screw, 8-18 x .437
13	Seal, Condenser Shroud
14	Shroud, Condenser
15	Cover, Unit
16	Screw, 8 x 3/8
17	Box, Control
19	Panel, Control
20	Pan, Drain
21	Harness, Heater Plug
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Thermostat
26	Cable, Appliance
28	Insulation, Drain Pan
29	Fuse, Link
30	Limit, Switch
31	Element, Heating
32	Screw 8-18 x .295
33	Heater, Harness Receptacle
