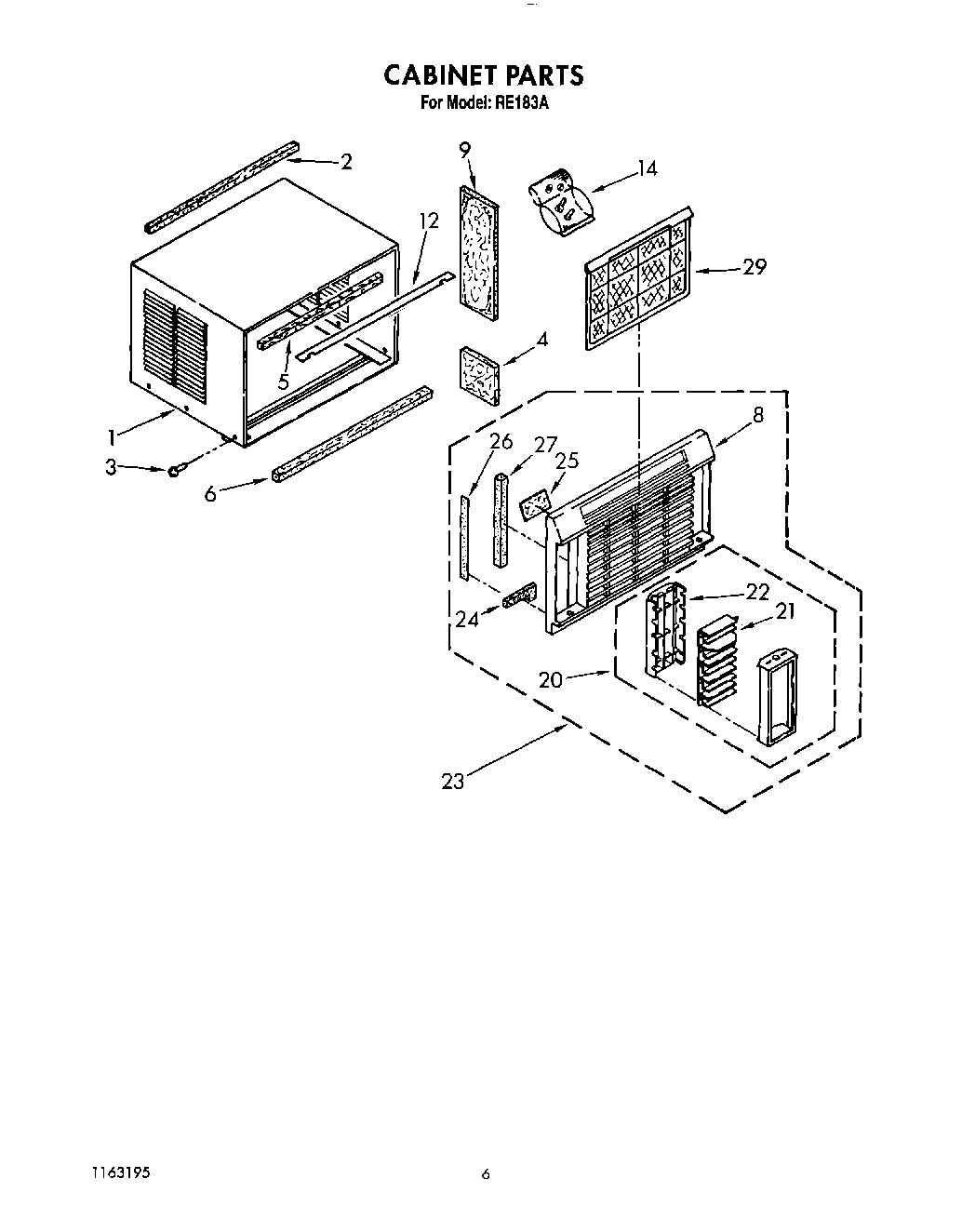

RE183A 04 – CABINET

RE183A 04 – CABINET

Written by

in

RE183A 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Seal, Top
6Seal
8Cabinet Front
9Insulation, Cabinet Side (2)
12Seal
14Bag, Accessory
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Left Side)
24Seal (Right Side)
25Seal (Left Side)
25Seal (Right Side)
26WP854334 Whirlpool Air Conditioner Sealing Strip
27Seal (2)
29Filter
