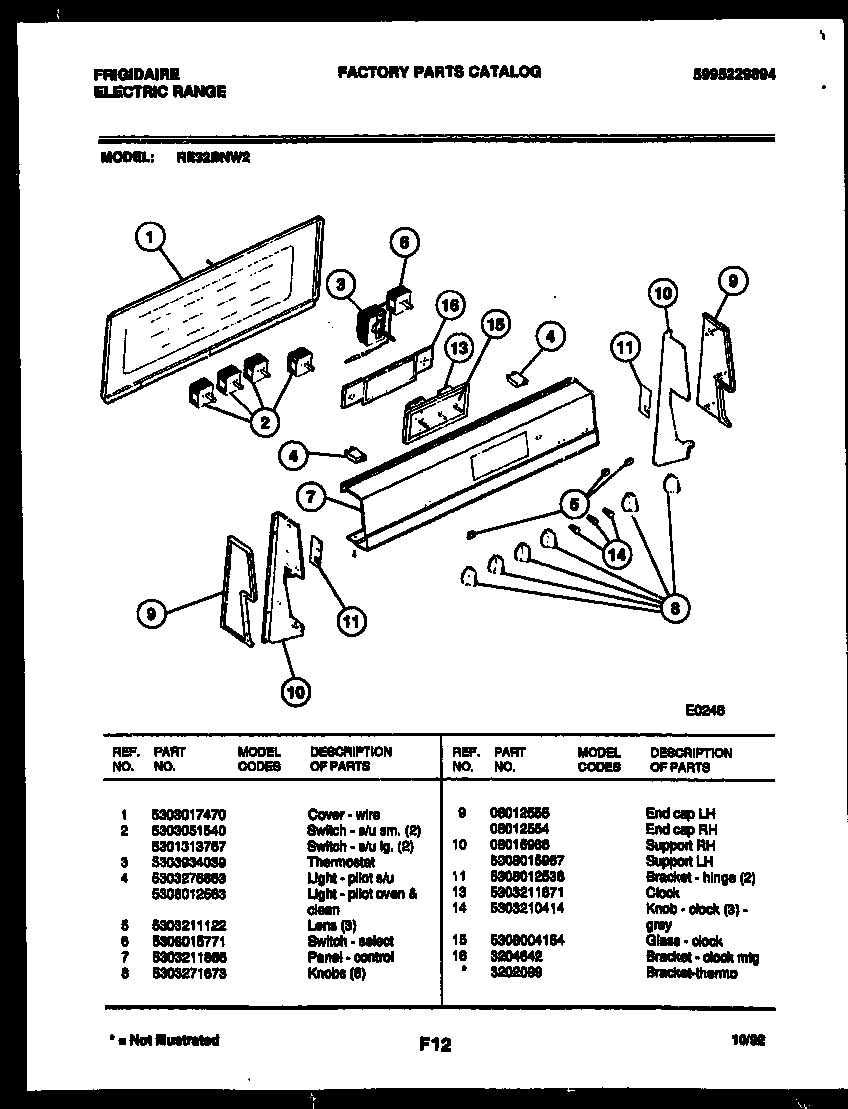

RE32BNW2 02 – CONTROL PANEL

Products

Position	Product
*68932	BRACKET-THERMOSTAT
1	COVER, WIRE.
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	THERMOSTAT
4	LIGHT - PILOT S/U
4A	LIGHT-PILOT OVEN & CLEAN
5	LENS (3)
6	WCI 5308015771
7	WCI 5303211866
8	KNOBS (6)
9	WCI 08012555
9A	WCI 08012554
10	SUPPORT RH
10A	SUPPORT - LH
11	BRACKET, HINGE (2)
13	WCI 5303211871
14	KNOB - CLOCK (3) - GREY
15	WCI 5308004154
16	BRACKET-MTG CLOCK
