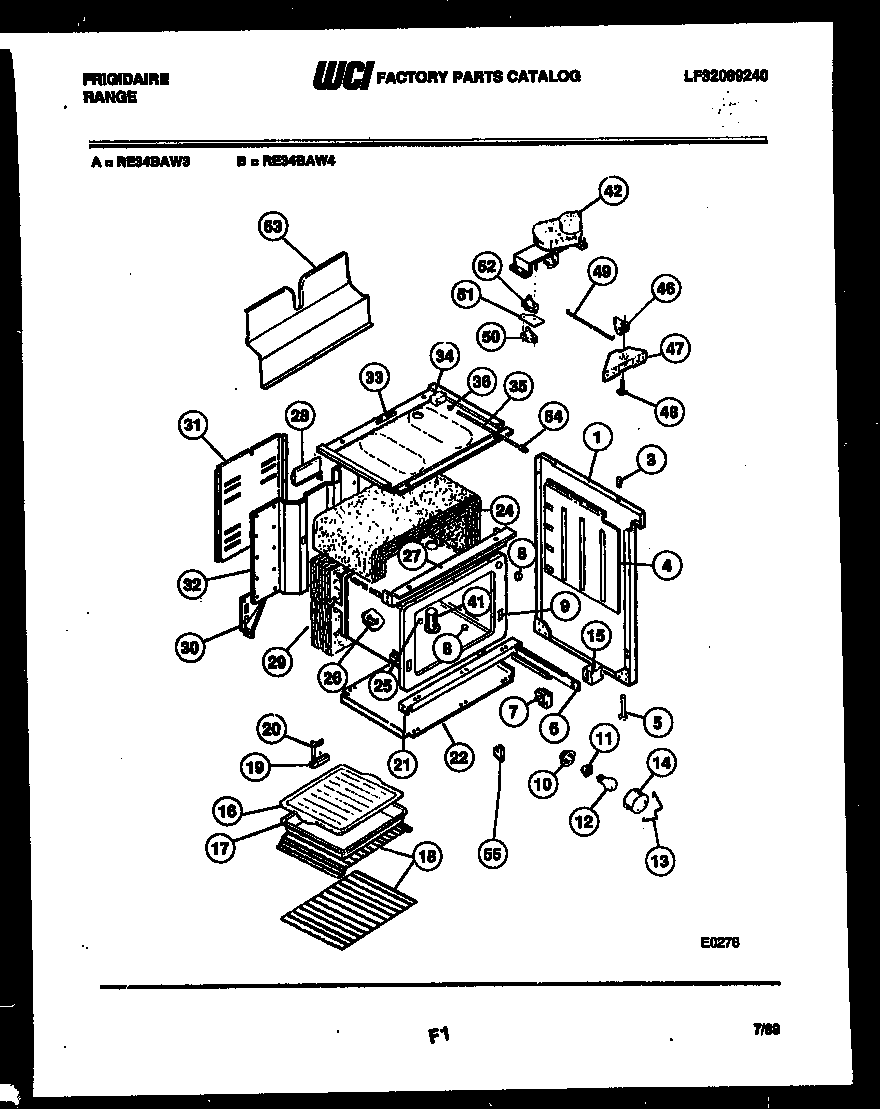

RE34BAA4 06 – BODY PARTS

Products

Position	Product
*22830	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 08012533
1A	WCI 08012534
3	BUMPER – COOKTOP (4)
4	WCI 08012235
5	LEG, LEVELLER (4)
6A	WCI 08015747
6	WCI 08015746
7	WCI 08003103
8	PLUG BUTTON – OVEN LIGHT HOLE
9	OVEN LINER
10	CUP – OVEN LIGHT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 08011087
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 3205234
17	WCI 3205232
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3203574
25	WCI 08003144
26	BRKT-THERMO BULB
27	WCI K1325168
28	WCI 08015742
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER – WIRE
32	WCI 3017575
33	WCI 08012542
34	SWITCH – DOOR
35	WCI 08007445
36	WCI 08007444
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	WCI 08015744
47	WCI 08008696
48	WCI 08003184
49	WCI 08015748
50	WCI 08003092
51	WCI 08003090
52	WCI 3007889
53	WCI 3017602
54	WCI 08067758
55	WCI 3051810
