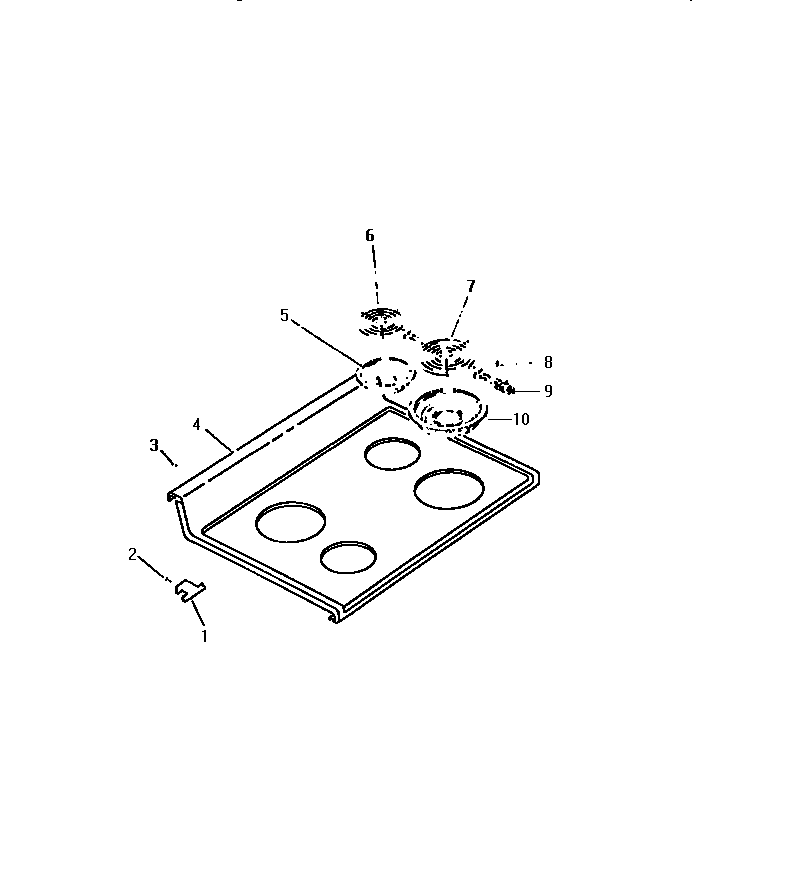

RE34BAH2 09 – COOKTOP – Aparts

RE34BAH2 09 – COOKTOP

Products

Position	Product
1	WCI 8012537
2	SCREWS (2)
3	SCREW, GROUND WIRE
4	WCI 8012525
5	PAN, 6`` DRIP (2)
6	SURFACE UNIT, 6`` (2)
7	SURFACE UNIT, 8`` (2)
8	SCREWS (4)
9	RECEPTACLE (4)
10	PAN, 8`` DRIP (2)
