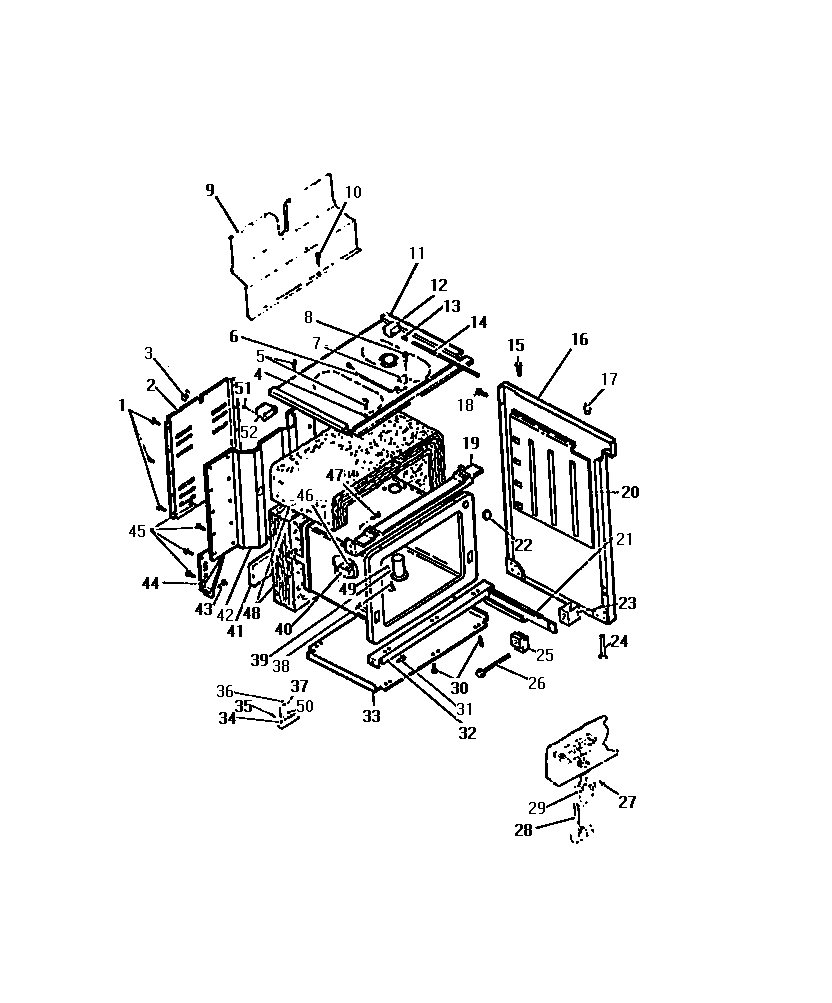

RE34BAH2 17 – OVEN LINER, SIDE PANELS – Aparts

RE34BAH2 17 – OVEN LINER, SIDE PANELS

Products

Position	Product
2	WCI 8015750
3	WASHERS (2)
4	WASHERS (2)
6	WCI 8003079
7	WCI 8003316
9	WCI 8015738
11	WCI 8012542
12	WCI 8003081
13	WCI 8007444
14	WCI 8007445
15	SCREWS (2)
16A	PANEL, LH SIDE, WHEAT
16	PANEL, RH SIDE, WHEAT
17	BUMPERS (4)
19	WCI 8012242
20	WCI 8012235
21A	RAIL, LH DRAWER
21	RAIL, RH DRAWER
22	WCI 8002852
23	SPACERS (2)
24	SCREWS LEVELING (4)
25	GUIDES (2)
26	SCREWS (2)
29	WCI 8015862
32	WCI 8002872
33	WCI 8015751
34	BLOCK
35	SCREWS (2)
36	SCREW, GROUND WIRE
37	WCI 8003146
38	SCREWS (2)
39	WCI 8012574
40	WCI 8002854
41	WCI 8015742
42	WCI 8015749
44	GUSSETS, RH
44A	GUSSETS, LH
46	SCREW
49	WCI 8003144
50	WCI 8003148
51	SCREWS (2)
52	WCI 8015752
