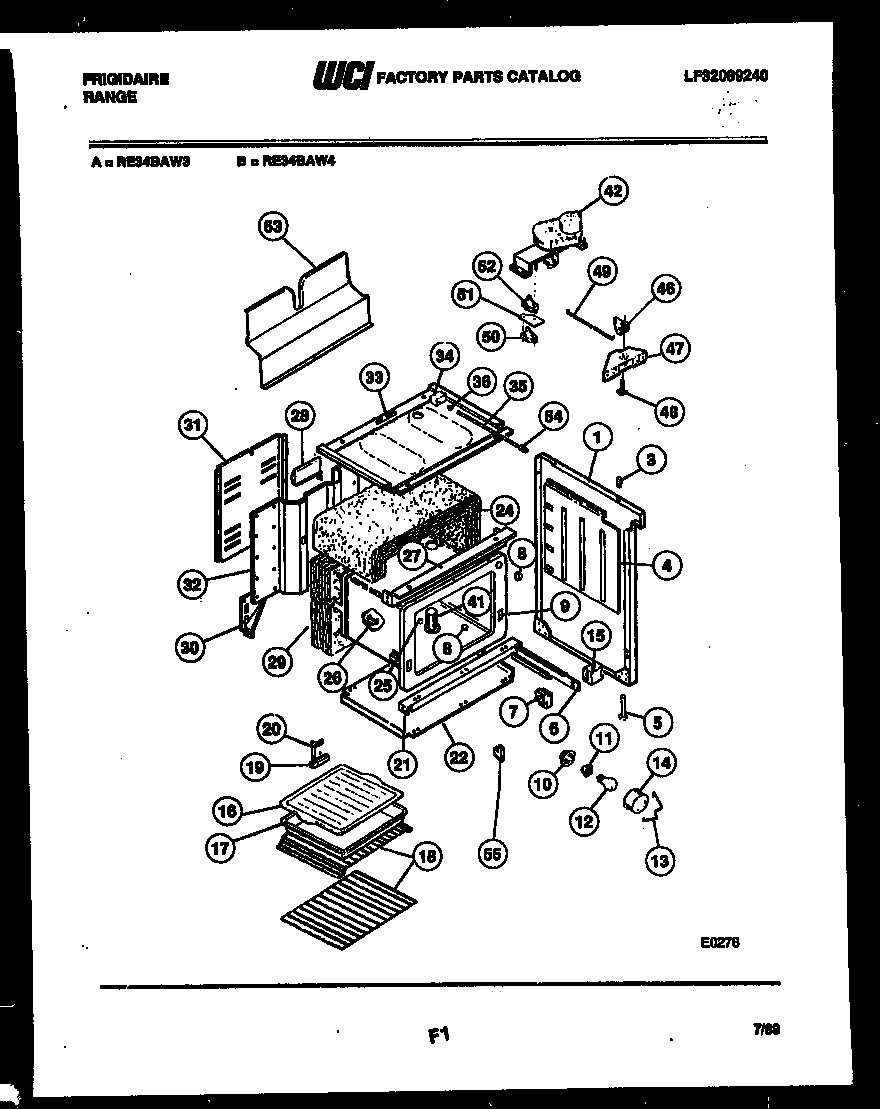

RE34BAH3 06 – BODY PARTS

Products

Position	Product
1A	WCI 08012536
1	SIDE PANEL-RH WHEAT
3	BUMPER – COOKTOP (4)
4	WCI 08012235
5	WCI 08003583
6A	WCI 08015747
6	WCI 08015746
7	WCI 08003103
8	PLUG BUTTON – OVEN LIGHT HOLE
9	OVEN LINER
10	CUP – OVEN LIGHT
11	316116400 Frigidaire Oven Light Socket
12	WCI 08000171
13	WCI 08011087
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	WCI 08005314
17	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
18	316067902 Frigidaire Oven Rack
18A	RACK-OFFSET
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL – OVEN SUPPORT LOWER
22	WCI 3017394
25	WCI 08003144
26	BRKT-THERMO BULB
27	WCI 08012242
28	WCI 08015742
29	INSULATION-OVEN BACK
30A	WCI 3017482
30	WCI 3017481
31	COVER – WIRE
32	WCI 3017575
33	WCI 08012542
34	SWITCH – DOOR
35	WCI 08007445
36	WCI 08007444
41	TUBE-OVEN VENT
42	MOTOR-LATCH
46	WCI 08015744
47	WCI 08008696
48	WCI 08003184
49	WCI 08015748
50	WCI 08003092
51	WCI 08003090
52	WCI 3007889
53	WCI 3017602
54	WCI 08067758
55	WCI 3051810
