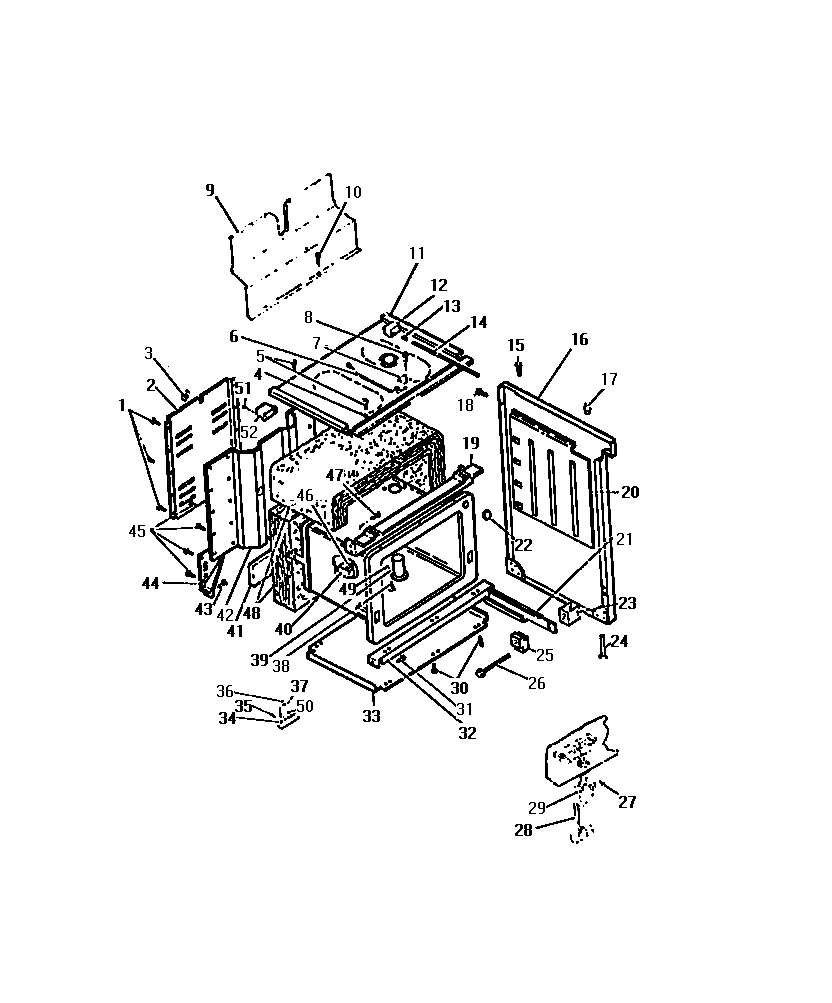

RE34BAW2 17 – OVEN LINER, SIDE PANELSadmin2025-04-26T08:46:41+00:00RE34BAW2 17 – OVEN LINER, SIDE PANELS
Products
| Position | Product |
|---|
| 2 | WCI 8015750 |
| 3 | WASHERS (2) |
| 4 | WASHERS (2) |
| 6 | WCI 8003079 |
| 7 | WCI 8003316 |
| 9 | WCI 8015738 |
| 11 | WCI 8012542 |
| 12 | WCI 8003081 |
| 13 | WCI 8007444 |
| 14 | WCI 8007445 |
| 15 | SCREWS (2) |
| 16A | PANEL, END, LH, WHITE |
| 16 | PANEL, END RH, WHITE |
| 17 | BUMPERS (4) |
| 19 | WCI 8012242 |
| 20 | WCI 8012235 |
| 21 | RAIL, RH DRAWER |
| 21A | RAIL, LH DRAWER |
| 22 | WCI 8002852 |
| 23 | SPACERS (2) |
| 24 | SCREWS LEVELING (4) |
| 25 | GUIDES (2) |
| 26 | SCREWS (2) |
| 29 | WCI 8015862 |
| 32 | WCI 8002872 |
| 33 | WCI 8015751 |
| 34 | BLOCK |
| 35 | SCREWS (2) |
| 36 | SCREW, GROUND WIRE |
| 37 | WCI 8003146 |
| 38 | SCREWS (2) |
| 39 | WCI 8012574 |
| 40 | WCI 8002854 |
| 41 | WCI 8015742 |
| 42 | WCI 8015749 |
| 44 | GUSSETS, RH |
| 44A | GUSSETS, LH |
| 46 | SCREW |
| 49 | WCI 8003144 |
| 50 | WCI 8003148 |
| 51 | SCREWS (2) |
| 52 | WCI 8015752 |
