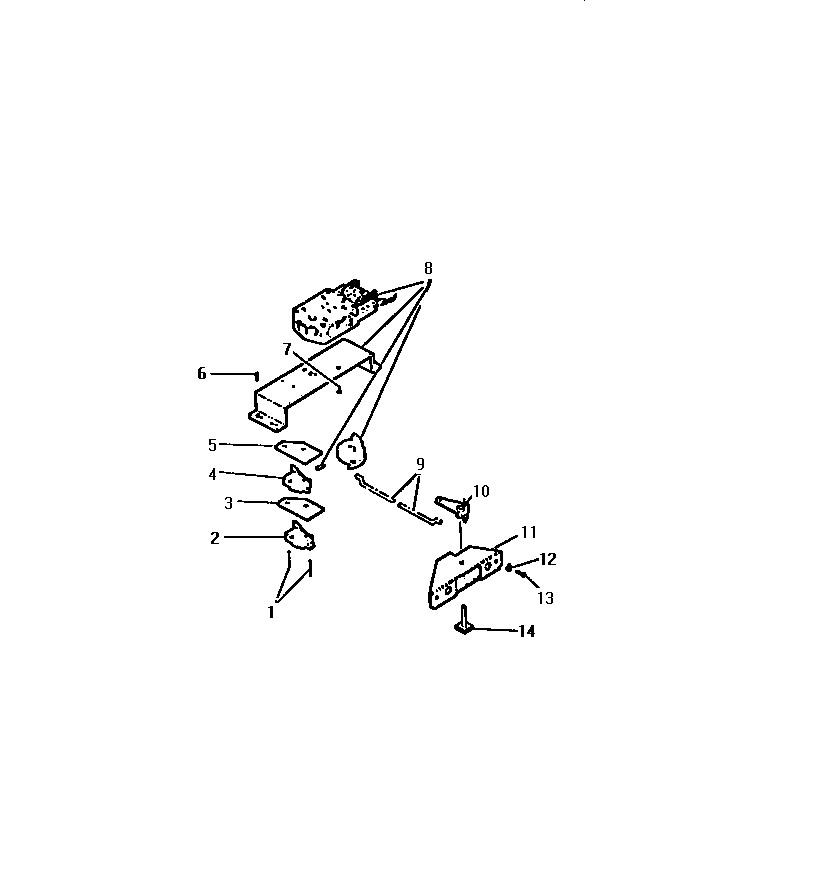

RE34BAW2 18 – LATCH MECHANISM
Products
| Position | Product |
|---|---|
| 1 | SCREWS (2) |
| 4 | WCI 8006582 |
| 5 | WCI 8003090 |
| 6 | SCREWS (2) |
| 7 | SCREWS (2) |
| 8 | ASSEMBLY, MOTOR |
| 9 | WCI 8015748 |
| 10 | WCI 8015744 |
| 11 | WCI 8008696 |
| 12 | WASHERS (2) |
| 13 | SCREWS (2) |
| 14 | PINS (2) |
