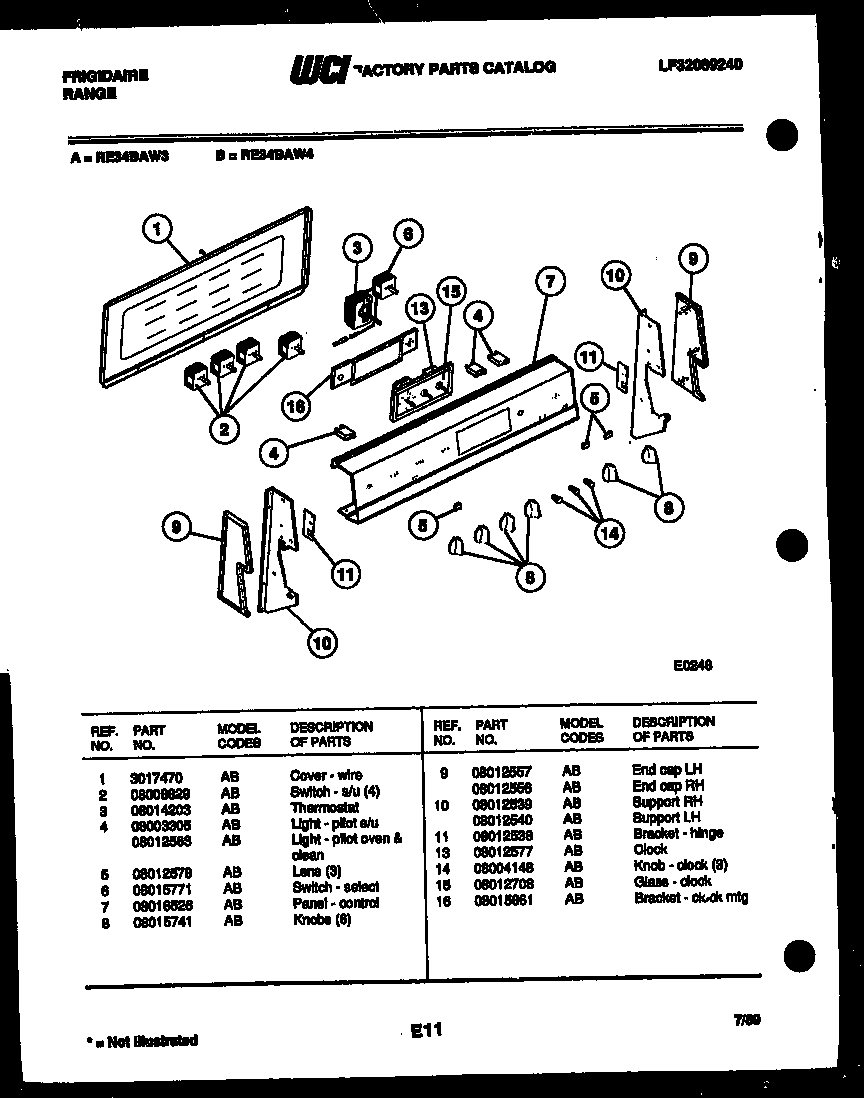

RE34BAW4 02 – CONTROL PANEL

Products

Position	Product
1	WCI 3017470
2	WCI 08008829
3	THERMOSTAT
4	WCI 08003305
4A	WCI 08012563
5	LENS (3)
6	SWITCH-SELECTOR
7	WCI 08016526
8	WCI 08015741
9A	WCI 08012556
9	WCI 08012557
10	SUPPORT RH
10A	SUPPORT LH
11	WCI 08012538
13	WCI 08012577
14	WCI 3016387
15	WCI 08012708
16	BRACKET-MTG CLOCK
