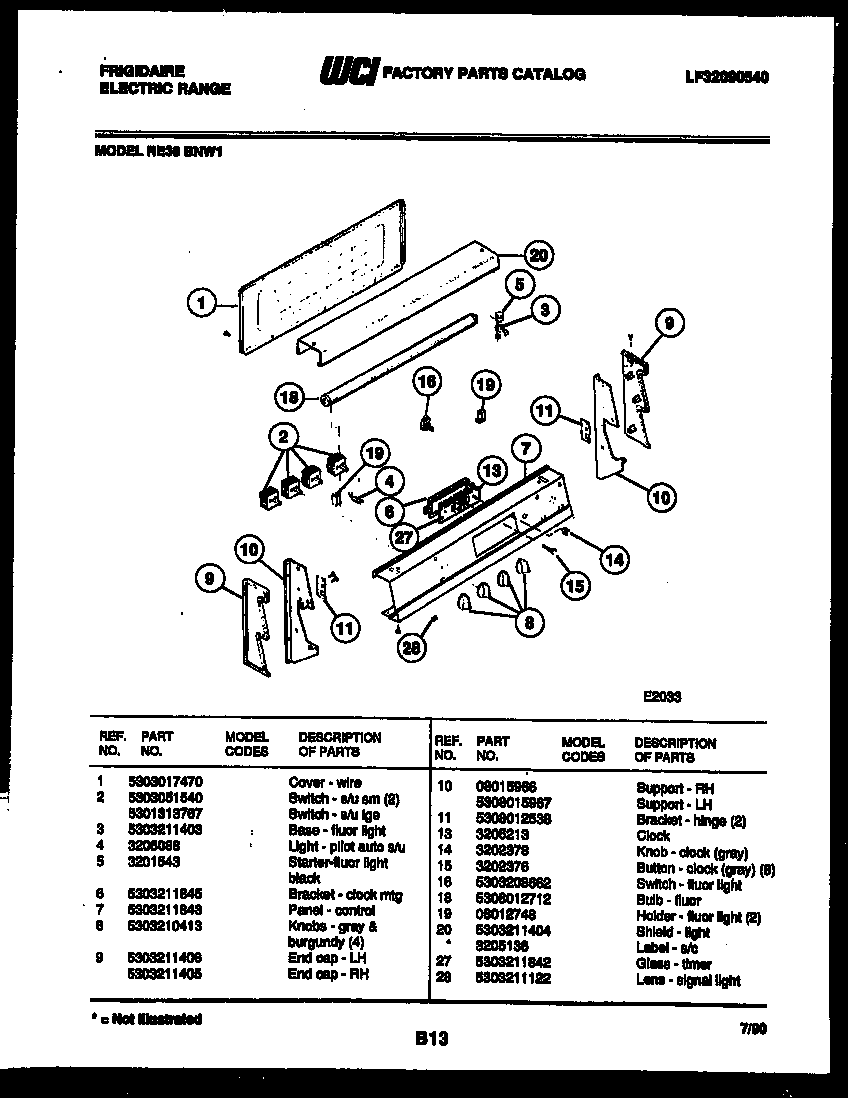

RE36BNW1 03 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	WCI 5303211403
4	IND LITE SURF UNIT
5	WCI 3201543
6	BRACKET – CLOCK MTG
7	WCI 5303211843
8	KNOBS-GRAY & BURGUNDY (6)
9A	WCI 5303211405
9	WCI 5303211406
10A	WCI 530801567
10	SUPPORT RH
11	BRACKET, HINGE (2)
13	WCI 3205213
14	KNOB – CLOCK (GRAY)
15	BUTTON – CLOCK (GRAY) (8)
16	5308015487 Frigidaire Switch-Oven Light
18	LAMP-FLUORESCENT, BACKGROUND
19	RECEPTACLE-LAMP, RH / LH
20	WCI 5303211404
20A	WCI 3205136
27	WCI 5303211842
28	LENS (3)
