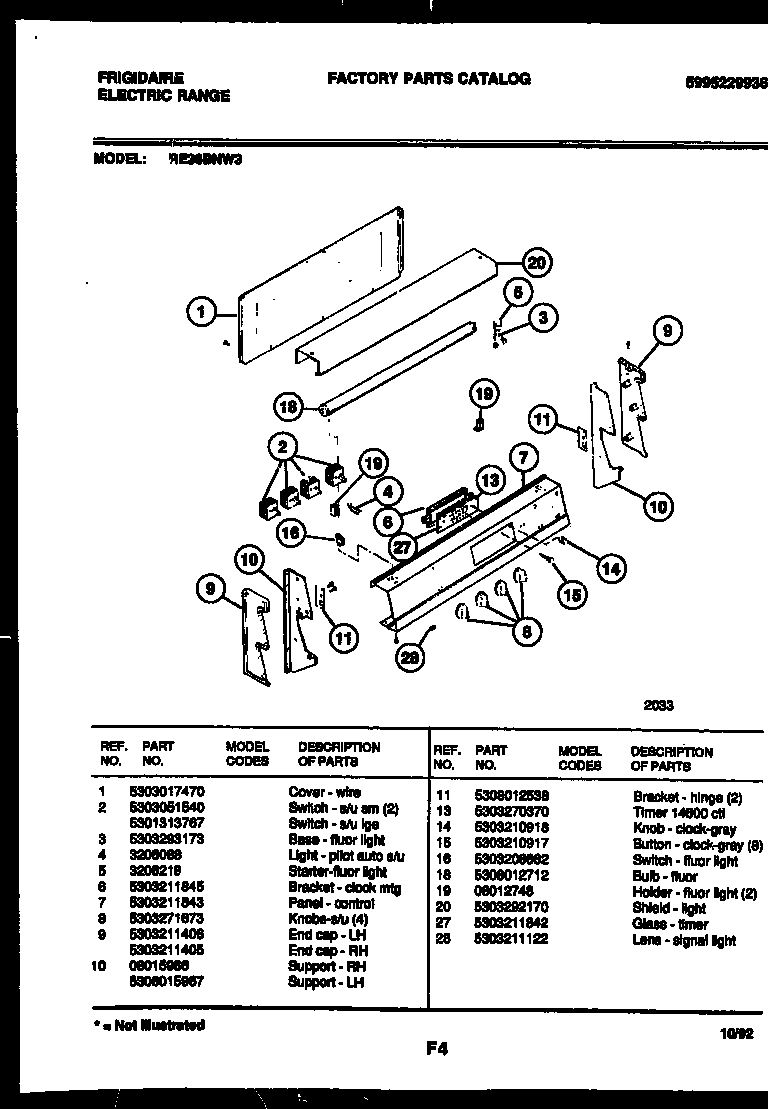

RE36BNW3 03 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2A	5303935086 Frigidaire Oven Top Burner Switch Kit
3	RECEPTACLE-STARTER
4	IND LITE SURF UNIT
5	STARTER-LAMP
6	BRACKET – CLOCK MTG
7	WCI 5303211843
8	KNOBS (6)
9A	WCI 5303211405
9	WCI 5303211406
10A	SUPPORT – LH
10	SUPPORT RH
11	BRACKET, HINGE (2)
13	TIMER 14600 CTL
14	KNOB – CLOCK-GRAY
15	BUTTON-CLOCK GRAY (8)
16	5308015487 Frigidaire Switch-Oven Light
18	LAMP-FLUORESCENT, BACKGROUND
19	RECEPTACLE-LAMP, RH / LH
20	TRIM-BACKGUARD, TOP
27	WCI 5303211842
28	LENS (3)
