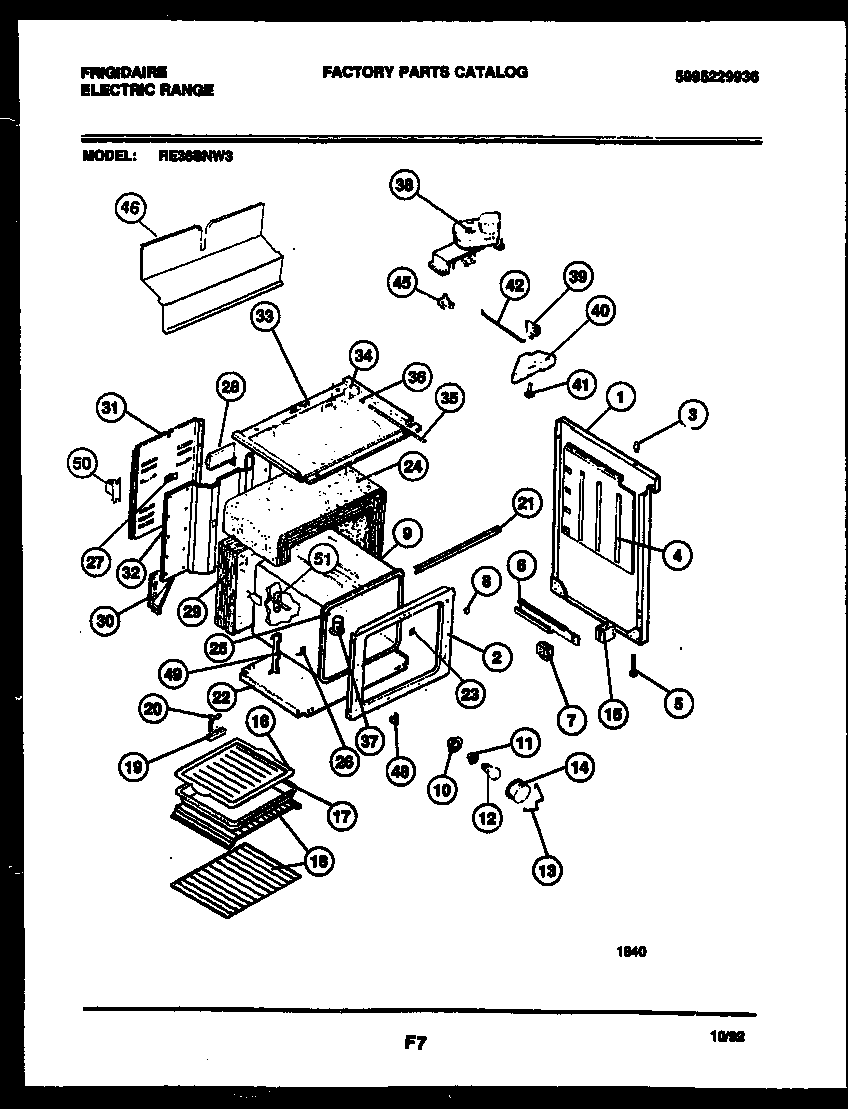

RE36BNW3 06 – BODY PARTS

Products

Position	Product
*68864	WCI 1910021099
1	SIDE PANEL, RH WHITE
1A	SIDE PANEL, LH WHITE
2	FRONT – OVEN
3	BUMPER, COOKTOP (4)
4	RETAINER, INSULATION (2)
5	SCREW-LEVELING (4)
6A	RAIL, DRAWER LH
6	WCI 5308015746
7	GUIDE-DRAWER FRNT (2)
8	BUTTON-PLUG
9	OVEN LINER
10	WCI 5303271606
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	RETAINER-LENS
14	5304524341 Frigidaire Lens
15	SPACER, DRAWER RAIL (2)
16	GRILLE – BROILER
17	WCI 5303292688
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE=GROUND STRAP
21	WCI 5303207391
22	WCI 3206275
23	WCI 3202082
24	INSULATION, OVEN WRAP
25	PLUG BUTTON (NON-ILLUSTRATED)
26	WCI 3201632
27	WCI 3016281
28	WCI 3051634
29	INSULATION
30A	WCI 3017482
30	WCI 3017481
31	WIRE, COVER
32	PANEL-BACK
33	PANEL – SUBTOP
34	SWITCH, DOOR
35	WCI 08007445
36	WCI 08007444
37	TUBE-OVEN VENT
38	WCI 5303269766
39	LATCH-DOOR
40	HOUSING-DOOR LATCH
41	AXLE – HINGE (2)
42	WCI 3051649
45	WCI 5303273248
45A	WCI 5303273247
46	WCI 3206095
48A	ANTI-TIP KIT, (NON-ILLUSTRATED)
48	WCI 3019063
49	WCI 3201631
50	BALLAST-LAMP (NON-ILLUSTRATED)
51	316217002 Frigidaire Oven Temperature Probe
