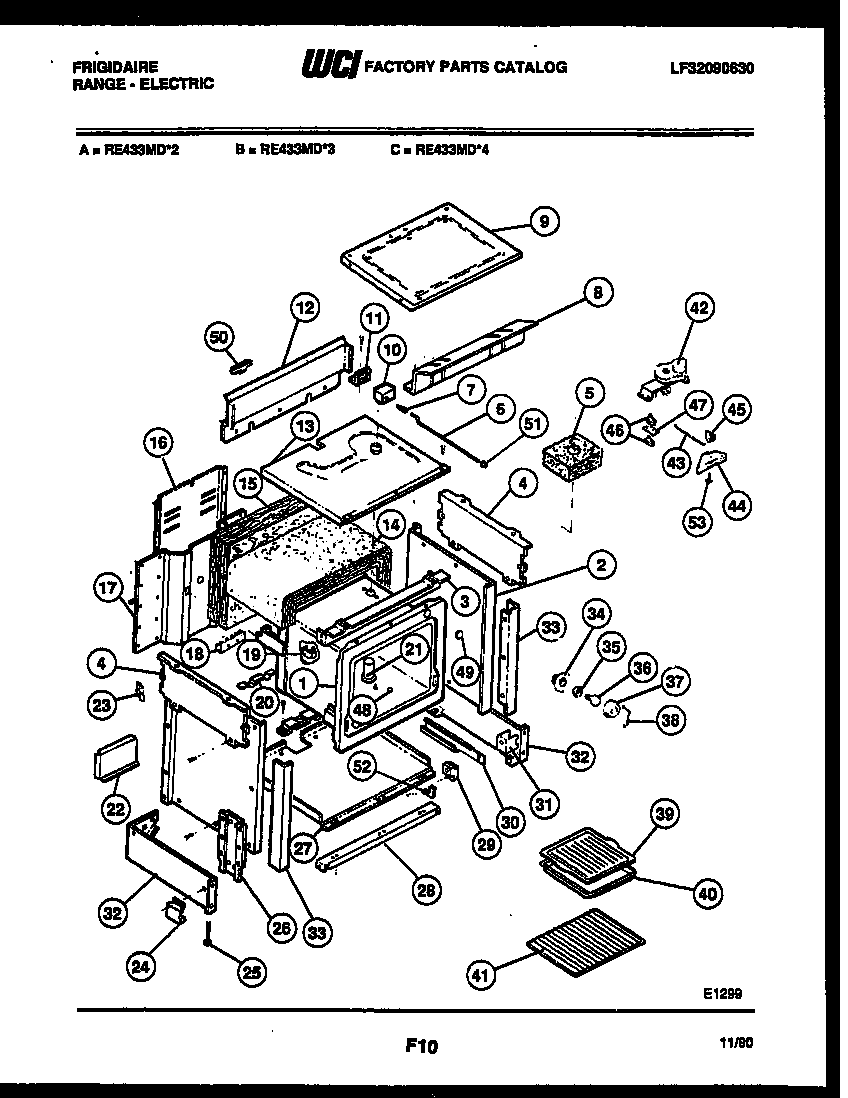

RE433MDB2 02 – BODY PARTS

Products

Position	Product
1	LINER, OVEN
2	SHIELD-INSULATION (2)
3	WCI 3206425
4	WCI 5308015935
5	INSUL.-VENT TUBE
6	ROD-SWITCH
7	WCI 08007444
8	WCI 5305113502
9	WCI 5303051553
11	BRACKET-DOOR SW
12	BACK-UPPER
13	SHIELD-INSUL. TOP
14	INSULATION-OVEN BACK
15	INSULATION
16	PANEL - WIRE COVER
17	BACK
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	BRACKET-THERMO BULB (2)
20	WCI 08015961
21	VENT TUBE
23	PLATE-FILLER
24	SHIELD-TOE (2)
25	SCREW-LEVELING (4)
26	WCI 5305080001
27	SHIELD-BOTTOM
28	WCI 08012722
29	GUIDE-DRAWER FRNT (2)
30A	GLIDE - DWR LH
30	GLIDE - DWR RH
31	SPACER-DRWR GLIDE (2)
32	WCI 5301324082
32A	WCI 5301324083
33	WCI 3051777
34	HOUSING - LIGHT
35	316116400 Frigidaire Oven Light Socket
36	316538904 Frigidaire Oven Lamp Light
37	5304524341 Frigidaire Lens
38	RETAINER-LENS
39	WCI 5303131356
40	PAN-BROILER
41	316067902 Frigidaire Oven Rack
41A	RACK-OFFSET
42	LATCH, MOTOR
43	WCI 3051649
44	HOUSING-DOOR LATCH
45	LATCH-DOOR
46A	SWITCH, DOOR
46	SW-DOOR LATCH (2)
47	WCI 08003090
48	BUTTON-PLUG
49	BUTTON-PLUG
50	BRACKT-HNG SUPT
51B	INSULATION-LINER (NON-ILLUSTRATED)
51A	ANTI-TIP KIT
51	WCI 3051251
52	WCI 3051810
53	WCI 08012004
