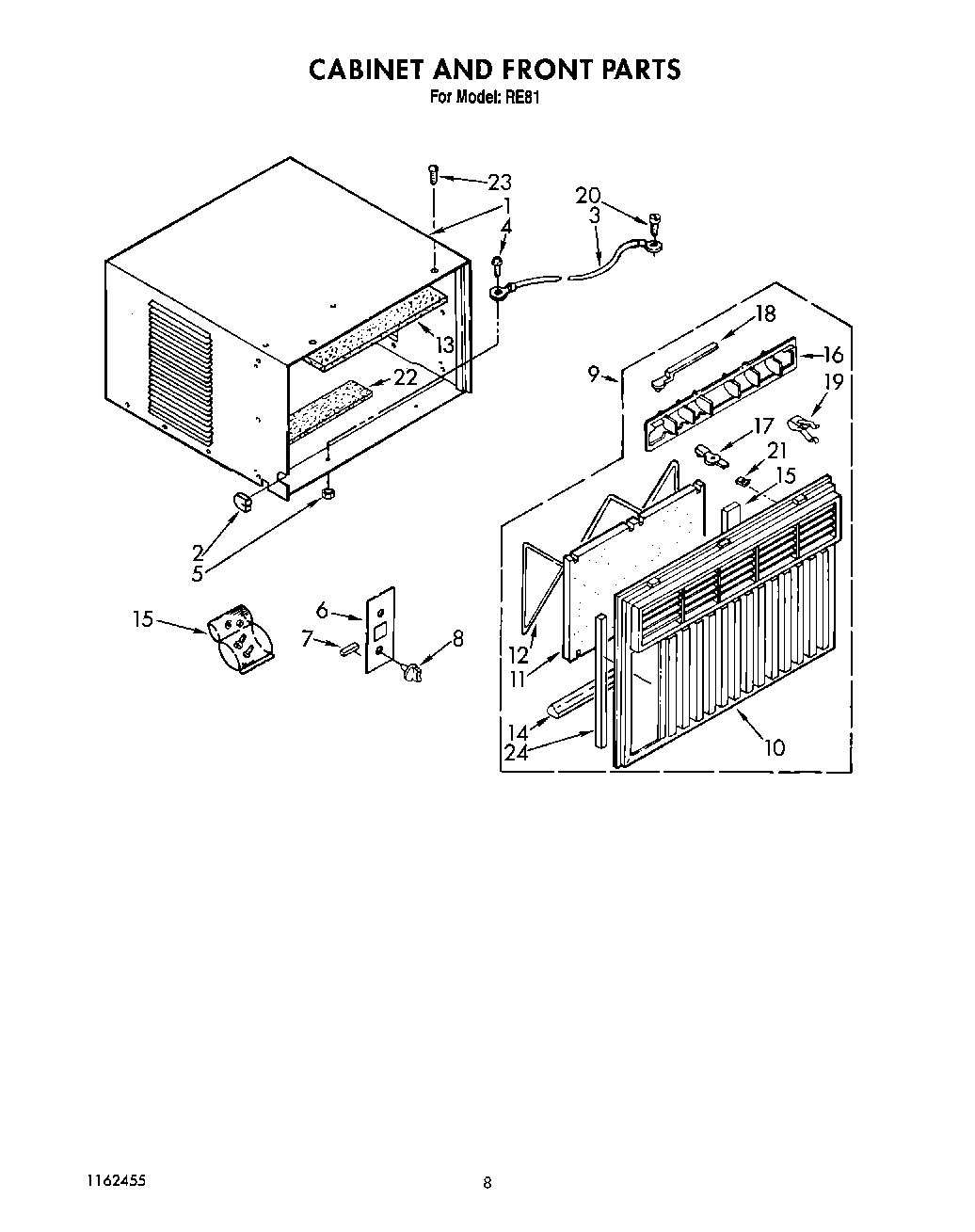

RE81 05 – CABINET AND FRONT

RE81 05 – CABINET AND FRONT

Written by

in

RE81 05 – CABINET AND FRONT

Products

PositionProduct
1Cabinet
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
5WP486255 Whirlpool Air Conditioner Nut
6Plate, Escutcheon
7Spacer, Escutcheon Plate (3)
8Knob, Control (3)
9Front Assembly, Cabinet (Complete)
10Front, Cabinet
11Filter
12Retainer, Filter
13Insulation, Cabinet (Top)
13WPL 647848
13WPL 647847
14Seal
14WP854334 Whirlpool Air Conditioner Sealing Strip
15Bag, Accessory
16Louver, Vertical
17Handle, Vertical Louver
18Link, Vert. Louver (2)
19Detent Spring (2)
20Screw, 8 x 3/8
21Clip, Cabinet Front (2)
22Seal
23Screw (2)
24Seal
