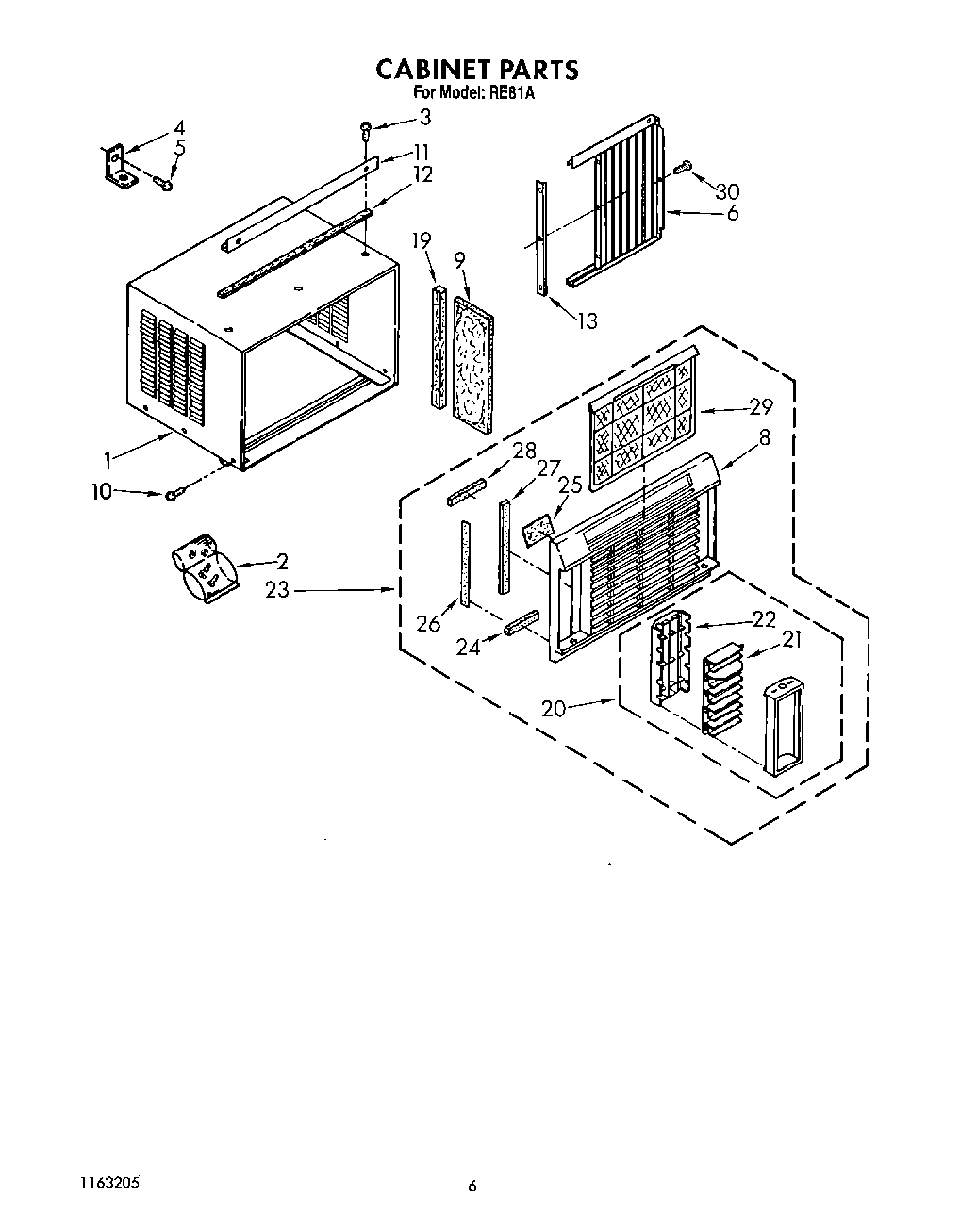

RE81A 04 – CABINET

RE81A 04 – CABINET

Written by

in

RE81A 04 – CABINET

Products

PositionProduct
1Cabinet
2Accessory, Bag
4Bracket
5Screw, Wood 8-15 x .750
6Curtain (Right Side)
6Curtain (Left Side)
8Cabinet Front
9Insulation (2)
10WP489069 Whirlpool Compactor Screw
11Chanel, Top
12Seal, Cabinet Top
13Retainer, Curtain
19Seal
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal, (2)
25Seal, Front
26Seal, Front – Sides (2)
27Seal (2)
28WP854334 Whirlpool Air Conditioner Sealing Strip
29Filter
30Screw, 8-18 x 3/8
