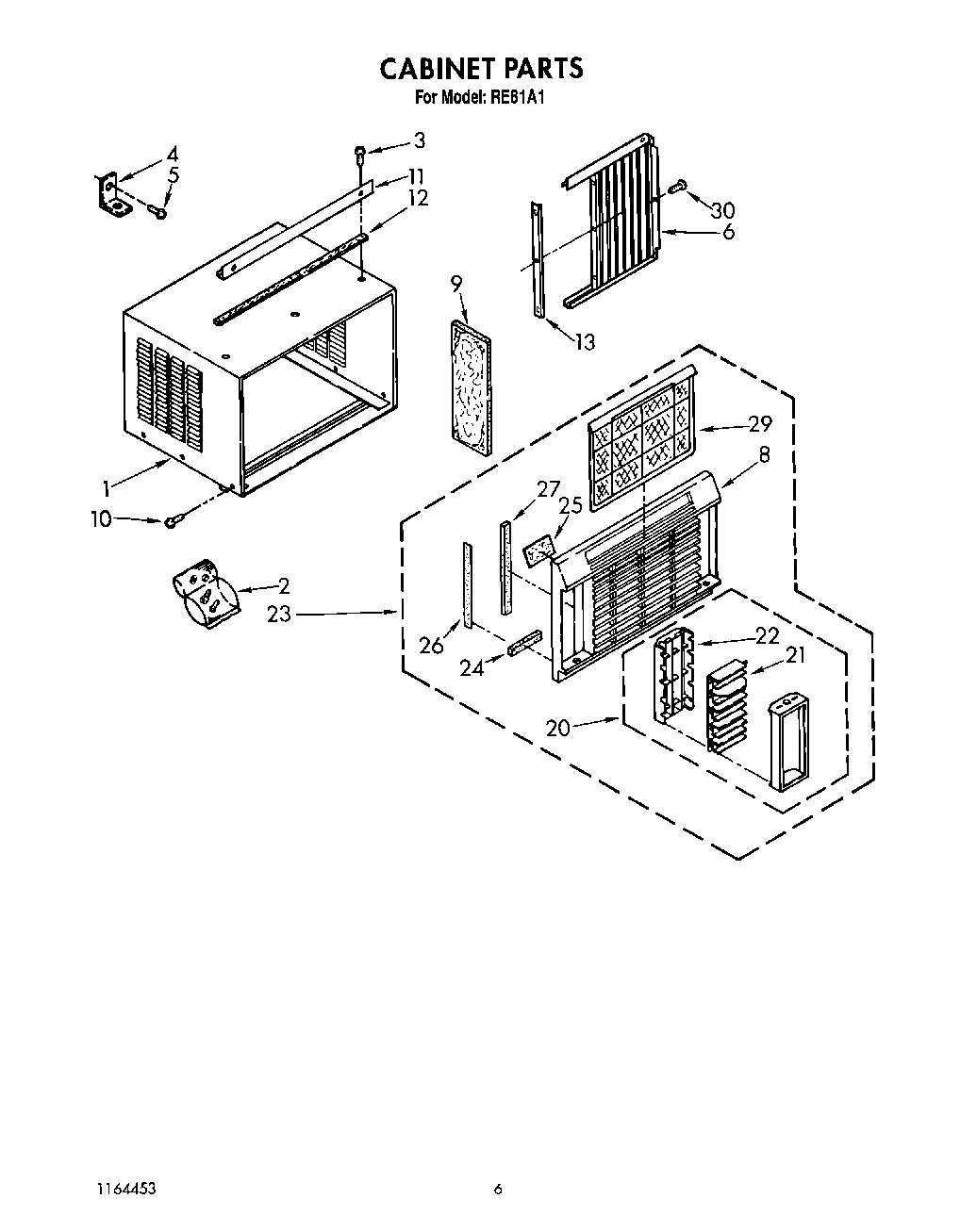

RE81A1 04 – CABINET

Products

Position	Product
1	Cabinet
2	Accessory, Bag
4	Bracket
5	Screw, Wood 8-15 x .750
6	Curtain (Left Side)
6	Curtain (Right Side)
8	Cabinet Front
9	Seal, Side (2)
10	WP489069 Whirlpool Compactor Screw
11	Chanel, Top
12	Gasket, Meeting Rail
13	Retainer, Curtain
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal, (2)
25	Seal, Front
26	Seal, Front – Sides (2)
27	Seal, Front
29	Filter
30	Screw, 8-18 x 3/8
