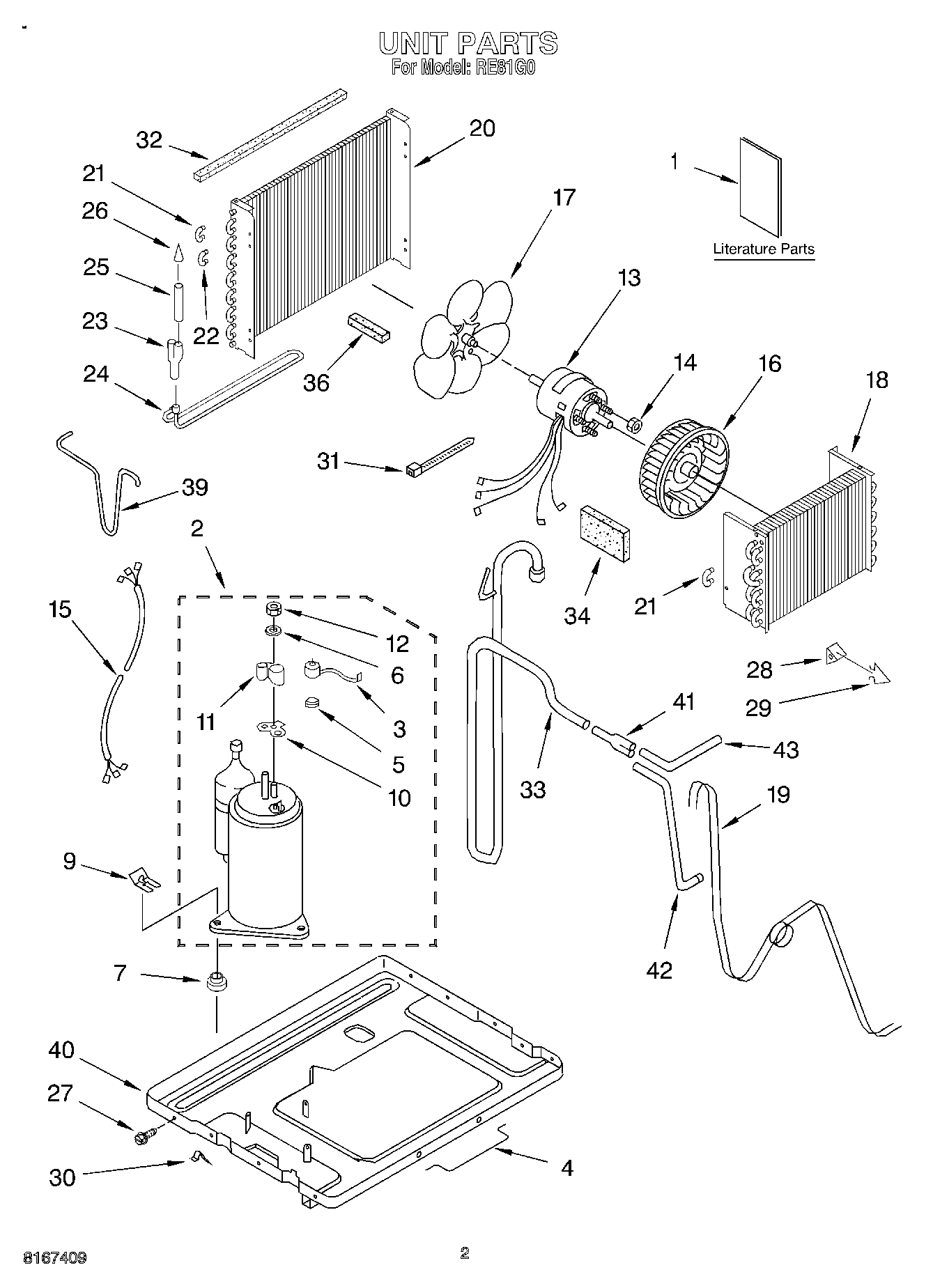

RE81G0 02 – UNIT, LITERATURE

Products

Position	Product
1	Use & Care Guide
1	LITERATURE PARTS (Wiring Diagram)
2	4317916 Whirlpool Air Conditioner Compressor
3	WP1161170 Whirlpool Air Conditioner Overload
4	Handle, Base
5	Spring, Overload
6	Gasket, Nut
7	Grommet
9	Clip, Compressor
10	WP950035 Whirlpool Cover Gasket
11	WP950036 Whirlpool Cover Assembly
12	WP950027 Whirlpool Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Wiring Harness, Compressor
16	Wheel, Blower
17	Blade, Fan
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Bend, Return Evaporator (4) Condenser (4)
22	Bend, Return Condenser (4)
23	Tube, Flow Divider
24	Tube, Wet Loop
25	Tube, Outlet (Includes No. 26)
26	Strainer
27	Screw, 8 x 3/8
28	Anticipator
29	Clip, Anticipator
30	Clamp (2)
31	WPW10339879 Whirlpool Wire Tie
33	Tube, Suction (Includes 41, 42, and 43)
34	Insulation, Suction Tube
36	WP854334 Whirlpool Air Conditioner Sealing Strip
39	Tube, Discharge
40	Base
41	Tube, Flow Divider
42	Tube, Outlet (Bottom)
43	Tube, Outlet (Top)
