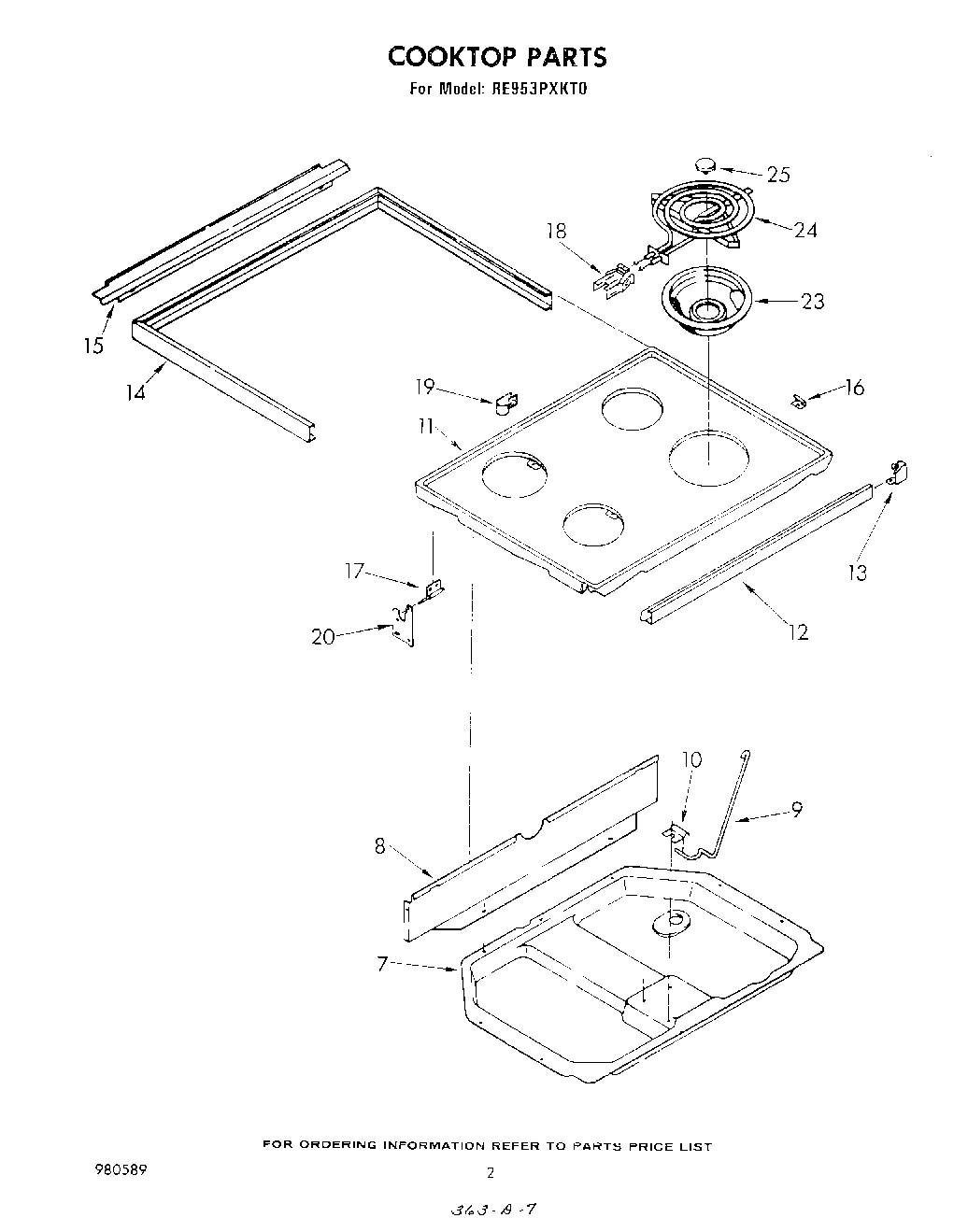

RE953PXKT0 02 – COOK TOP

Products

Position	Product
7	burner box
8	Shield, Wiring
9	SCREW
9	Rod, Cooktop
10	WP3390631 Whirlpool Screw
10	Retainer, Cooktop
11	Clip (2)
11	cooktop, chrome
12	trim, cooktop front
13	end cap trim r.h.
13	Screw, 8A x 3/8 (2)
13	Clip (4)
13	end cap trim l.h.
14	trim, cooktop side & rear
14	W11693756 Whirlpool Screw Assembly
15	trim, rear
16	bracket, cooktop (6)
16	WP308685 Whirlpool Microwave Screw
17	Hinge, Leaf Cooktop R.H.
17	Hinge, Leaf Cooktop L.H.
18	BURNER RECEPTACLE KIT
18	WP313808 Whirlpool Screw
19	WP308605 Whirlpool Refrigerator Clamp
19	WP965173 Whirlpool Dishwasher Screw
20	hinge (2)
20	WP308544 Whirlpool Screw
23	DRIP BOWL 8" W/HOLE CHROME
23	WPW10196406 Whirlpool 6" Chrome Drip Bowl
24	WP660533 Whirlpool Oven 8" Surface Element
24	WPY04100165 Whirlpool Surface Element
25	medallion
