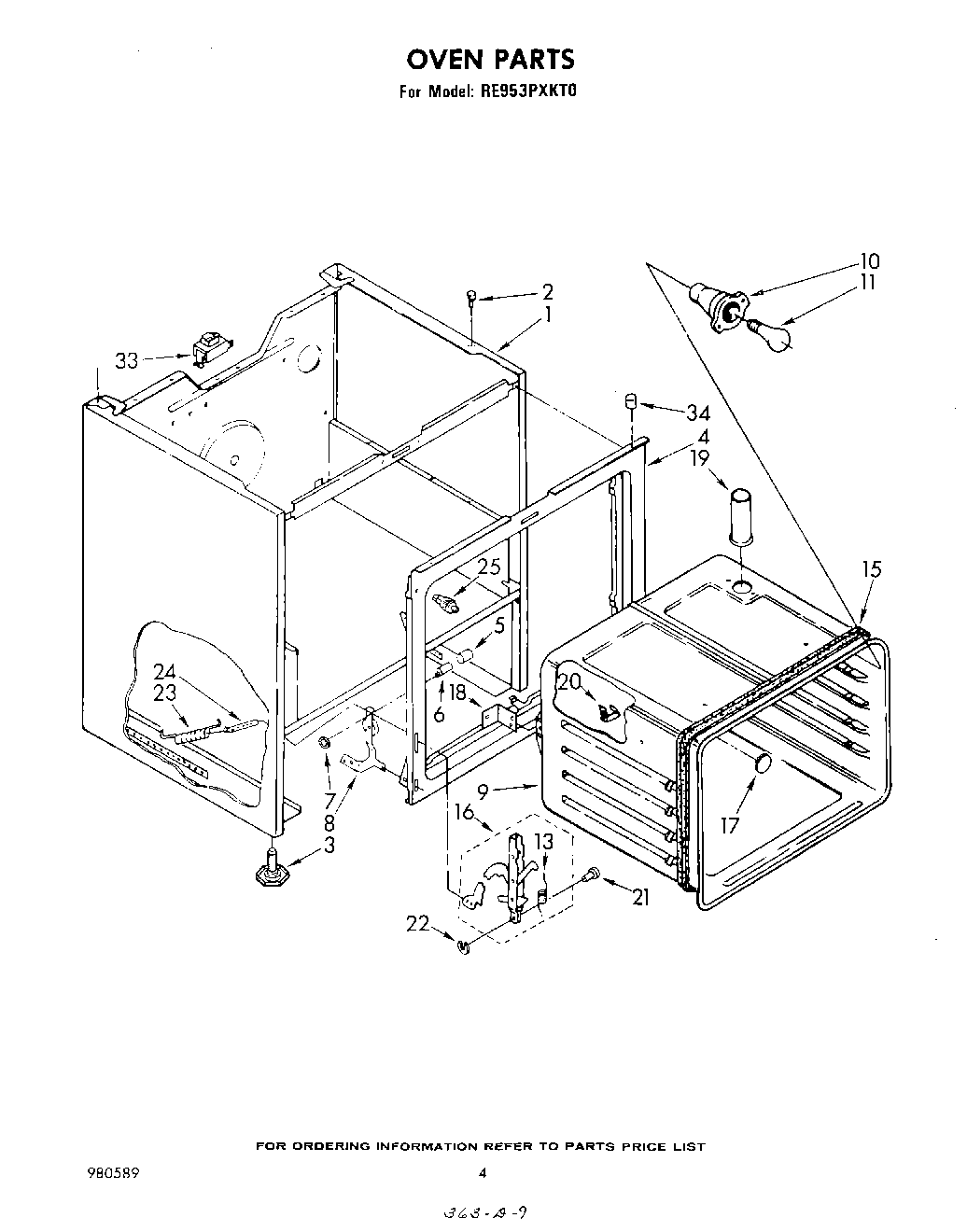

RE953PXKT0 03 – OVEN

Products

Position	Product
1	main chassis (almond)
2	238614 Whirlpool Bumper Hinge
3	WP233550 Whirlpool Leveling Feet
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	SCREW
8	Hinge (R.H.)
8	Hinge (L.H.)
9	oven (30“ continous clean)
9	Screw (3)
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
10	Screw (10-12 x .875)
11	RANGE ONLY 40W 120V APPL BULB
13	Spring, Door Stop
15	Heat Seal
16	Channel Arm (2)
17	Plug Button
18	W10841059 Whirlpool Screw
18	Bracket, Oven (Mounting)
19	vent, oven
19	WP308685 Whirlpool Microwave Screw
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	Spring, Oven Door (2)
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
33	Ballast (Alt.)
33	Ballast (Alt.)
34	Screw, 8-32 x 5/16 (2)
34	locator, cooktop
