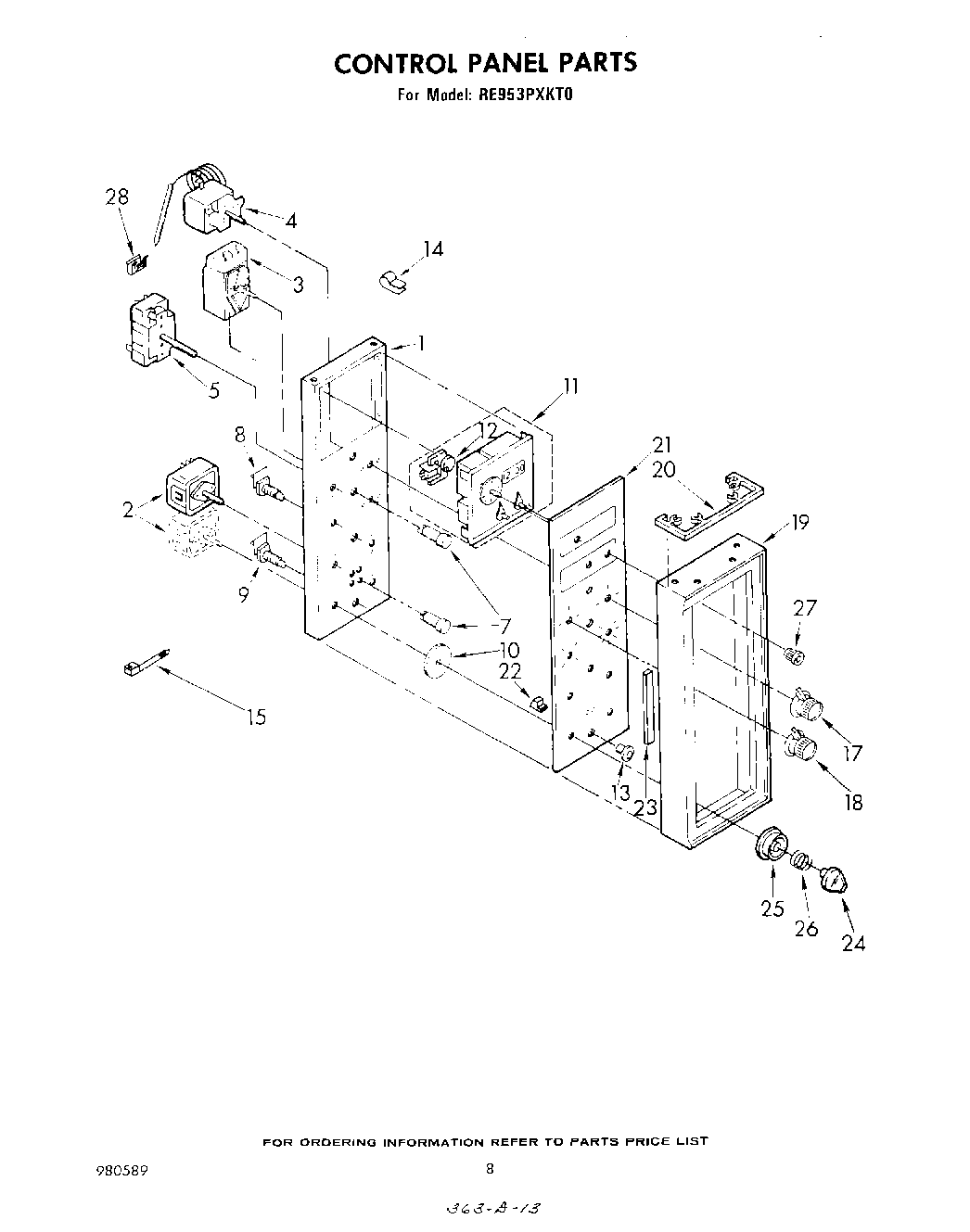

RE953PXKT0 05 – CONTROL PANEL

Products

Position	Product
1	Plug Button
1	panel, control
2	switch, infinite (4)
3	thermostat, oven (pyro)
4	Thermostat (Upper Oven)
4	screw, 6-32 x 1/4 (2)
5	Switch, Selector (4 Position)
5	Screw, 8-32 x 3/16 (2)
7	Light, Indicator 250V (6)
8	Switch, Fluorescent Light
9	nut, 3/8 x 27
9	Switch, Oven Light
10	Skirt, Knob (4)
11	WP488627 Whirlpool Refrigerator Screw
11	timer, digital (includes illus. 12)
11	WP486754 Whirlpool Compactor Screw
12	Motor, Timer
13	bezel, switch (2)
14	488946 Whirlpool Air Conditioner Clamp
14	WP308605 Whirlpool Refrigerator Clamp
14	Strain Relief (3)
14	SCREW
14	WP308685 Whirlpool Microwave Screw
15	WPW10339879 Whirlpool Wire Tie
17	Knob, Thermostat
18	Knob, Selector
19	frame, control panel
20	filler, control panel
20	Screw,
21	Glass, Control Panel
22	retainer, glass (10)
23	Seal, Foam
24	knob, control
25	bezel control knob (4)
26	spring, bezel (4)
27	knob, timer
28	Speed Clip
28	Screw, 10A x 2
