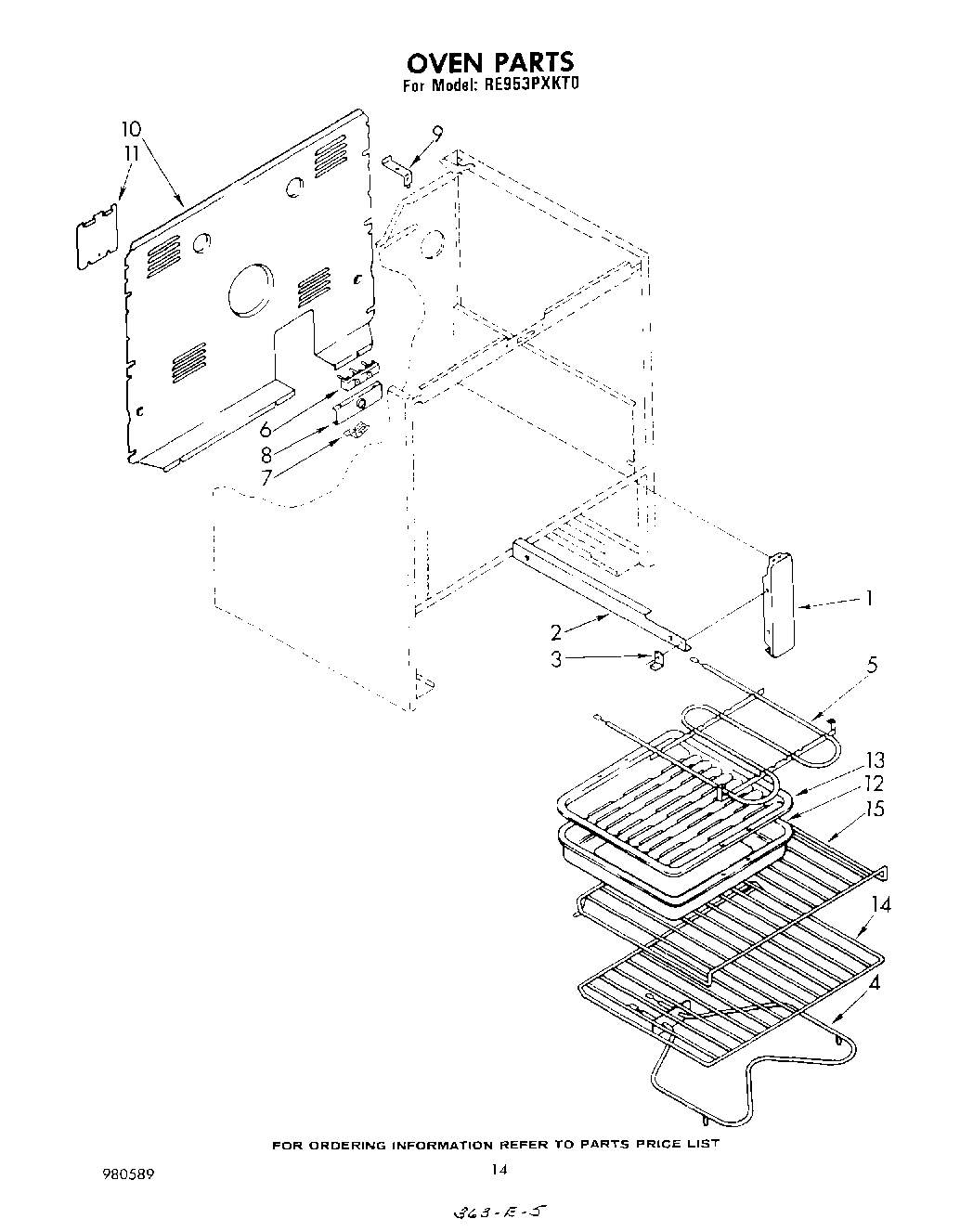

RE953PXKT0 08 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

RE953PXKT0 08 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Written by

in

RE953PXKT0 08 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Products

Position	Product
	Rotisserie Kit
	Enamel, Coffee (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, New Avocado (1 Qt. Uncut)
	Almond (Uncut)
	511873 Whirlpool Refrigerator Paint
	Golden Harvest (Uncut)
1	Bracket, Mounting (2)
2	WP308685 Whirlpool Microwave Screw
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	W10841059 Whirlpool Screw
7	SCREW
7	WPL 308498
8	Bracket, Service
9	WPL 309102
10	Cover, Rear
11	Cover, Service
11	WP308544 Whirlpool Screw
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	Grease
15	Wire (14 Ga. 150 c Yellow)
15	18 Ga. 80~c Rating (Red)
15	Wire (14 Ga. 200 c Brown)
15	WPL 980589
15	1
15	Leveler (Thinner) (2oz.)
15	WPL 311428
15	WPL 308500
15	WPL 308494
15	WPL 799351
15	Wire (14 Ga. 150 c Orange)
15	WPL 308172
15	Wire, 25` Roll (Black 14 Ga.)
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	WPW10208653 Whirlpool Insulation
15	350930 Whirlpool White Spray Paint
15	WPL 799832
15	350942 Whirlpool Spray Paint
15	Golden Harvest
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	WP72107 Whirlpool Touchup
15	72017 Whirlpool Appliance Touch-Up Paint White
15	Wire, 25` Roll (Red 14 Ga.)
15	Wire, 25“ Roll (White 14 GA.)
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Brown)
15	Wire (14 Ga. 150 c Blue)
15	242831 Whirlpool Oven Wire
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	Touch-Up Oven (1 Oz.)
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	285006 Whirlpool Spray
15	350956 Whirlpool Spray Assembly
