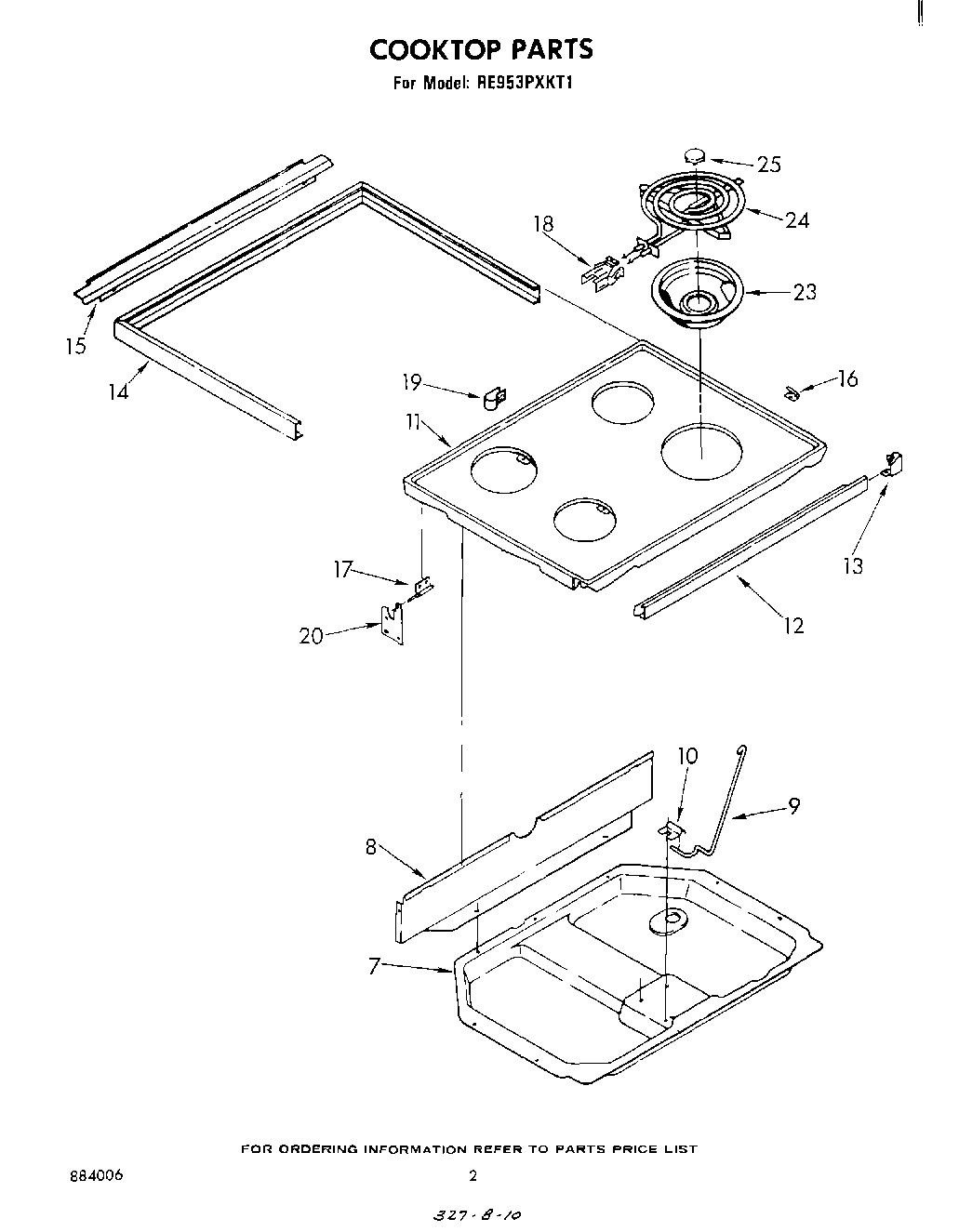

RE953PXKT1 02 – COOKTOP

Products

PositionProduct
7burner box
8Shield, Wiring
9SCREW
9Rod, Cooktop
10WP3390631 Whirlpool Screw
10Retainer, Cooktop
11Clip (2)
11cooktop, chrome
12trim, cooktop front
13end cap trim r.h.
13Screw, 8A x 3/8 (2)
13Clip (4)
13end cap trim l.h.
14W11693756 Whirlpool Screw Assembly
14trim, cooktop side & rear
15trim, rear
16bracket, cooktop (6)
17Hinge, Leaf Cooktop L.H.
17Hinge, Leaf Cooktop R.H.
17WP308685 Whirlpool Microwave Screw
18WP313808 Whirlpool Screw
18BURNER RECEPTACLE KIT
19WP965173 Whirlpool Dishwasher Screw
19WP308605 Whirlpool Refrigerator Clamp
20hinge (2)
20WP308544 Whirlpool Screw
23DRIP BOWL 8" W/HOLE CHROME
23WPW10196406 Whirlpool 6" Chrome Drip Bowl
24WP660533 Whirlpool Oven 8" Surface Element
25medallion
