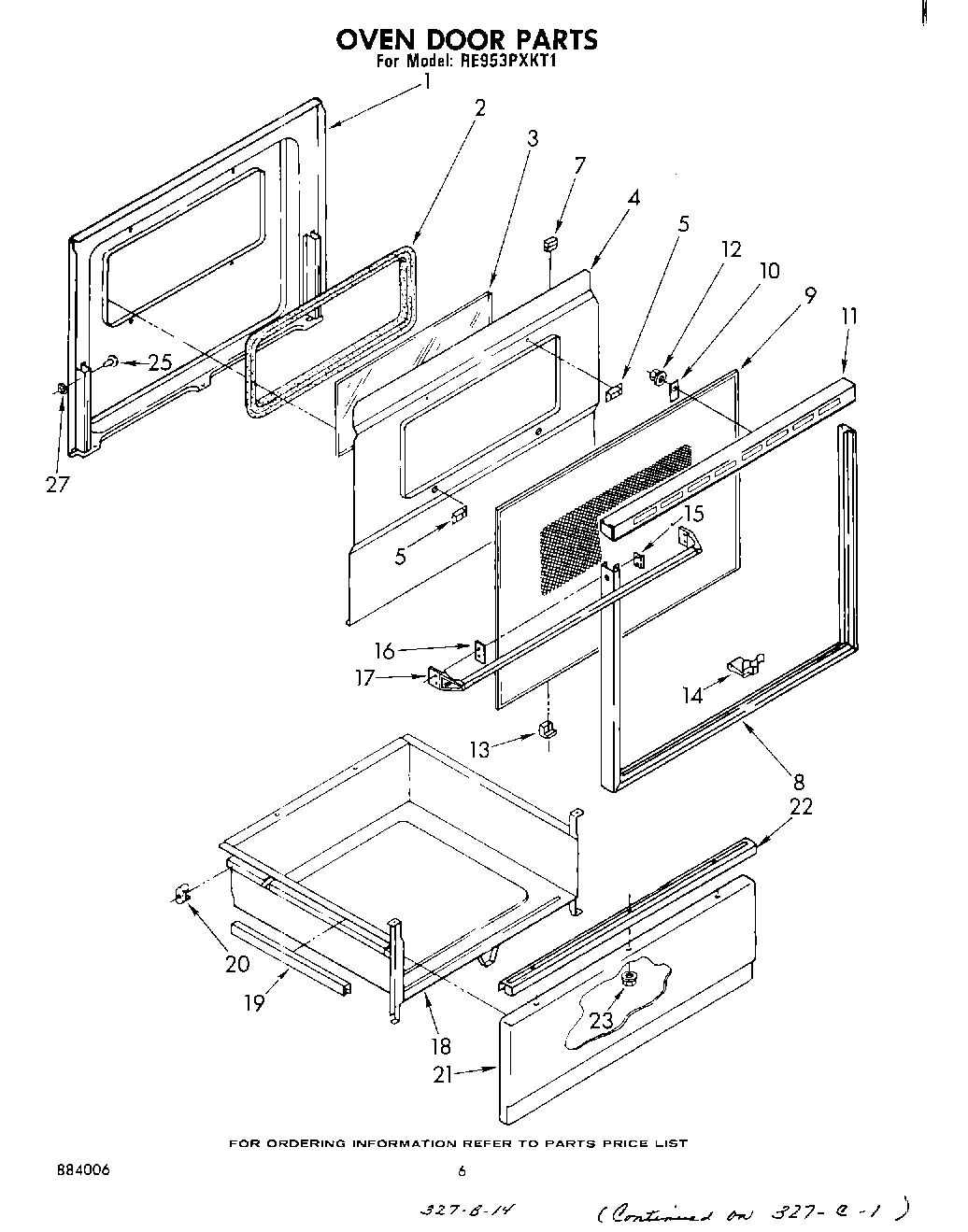

RE953PXKT1 04 – OVEN DOORadmin2025-04-26T08:45:45+00:00RE953PXKT1 04 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | liner, door |
| 1 | Clip (2) |
| 1 | Screw (3) |
| 2 | seal, pano glass |
| 3 | glass, inner 30`` |
| 4 | baffle, insulation |
| 5 | spacer, insulation baffle (4) |
| 7 | channel, rubber (4) |
| 8 | frame, door 30`` |
| 9 | Glass, Outer |
| 10 | hold down, glass (2) |
| 11 | Screw, 10A x 1/2 (2) (Black) |
| 11 | Top, Door Frame |
| 12 | WP90296 Whirlpool Clip |
| 13 | Seal, Foam |
| 14 | clip, glass (10) |
| 15 | screw (3) |
| 16 | Spacer, Door Handle (2) |
| 17 | Handle, Oven Door |
| 17 | WP912618 Whirlpool Dishwasher Screw |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | WP308685 Whirlpool Microwave Screw |
| 20 | Glide, Rear (2) |
| 21 | Panel, Drawer (Screw, 8-32 (3)) |
| 21 | Panel Drawer (Black) |
| 22 | Handle, Drawer |
| 23 | WP486255 Whirlpool Air Conditioner Nut |
| 25 | pin, wedge (2) |
| 27 | pushnut (2) |
