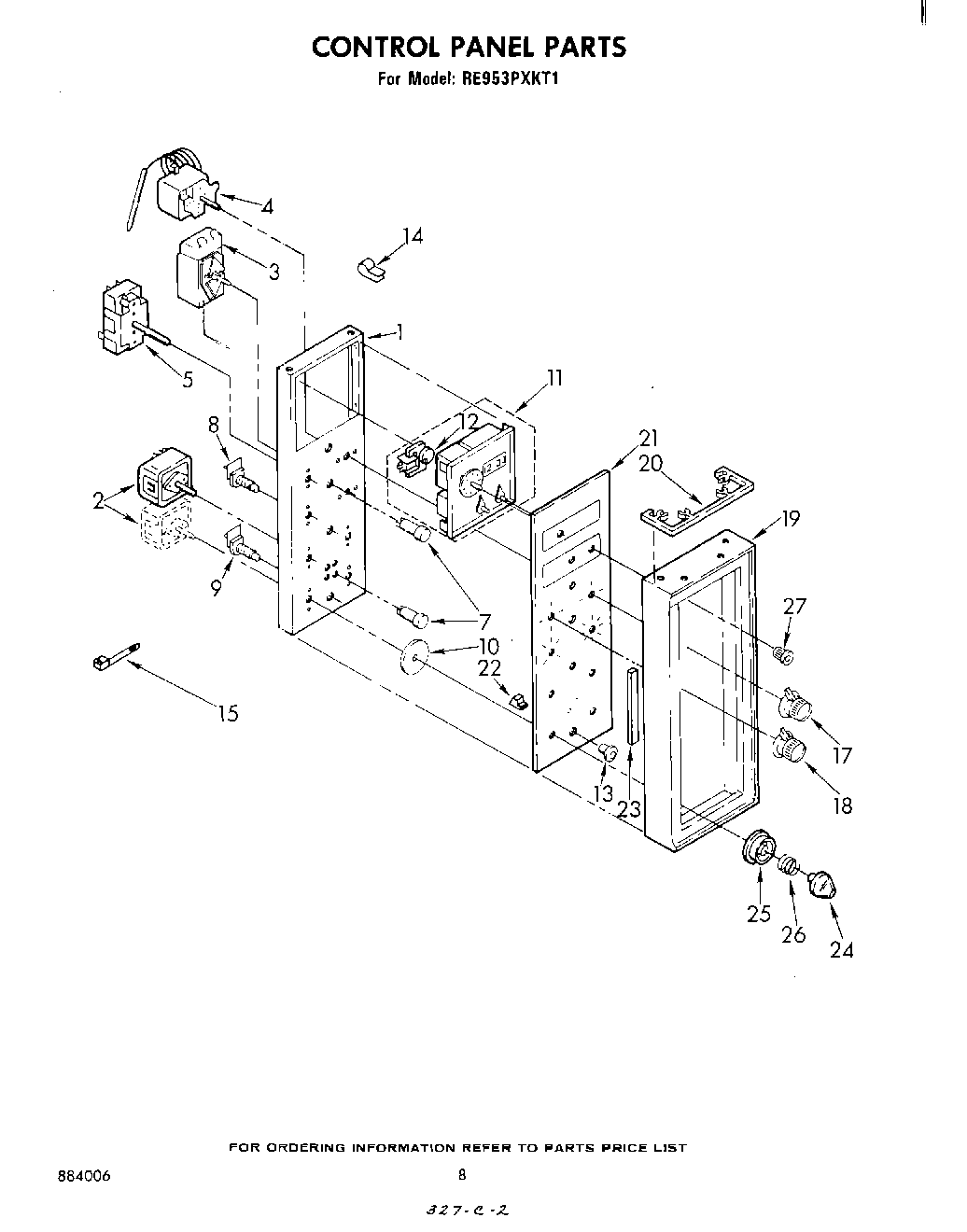

RE953PXKT1 05 – CONTROL PANEL

Products

Position	Product
1	Plug Button
1	panel, control
2	switch, infinite (4)
3	thermostat, oven (pyro)
4	screw, 6-32 x 1/4 (2)
4	Thermostat (Upper Oven)
5	Switch, Selector (4 Position)
5	Screw, 8-32 x 3/16 (2)
7	Light, Indicator 250V (6)
8	Switch, Fluorescent Light
9	Switch, Oven Light
9	nut, 3/8 x 27
10	skirt, knob (4)
11	WP488627 Whirlpool Refrigerator Screw
11	WP486754 Whirlpool Compactor Screw
11	timer, digital (includes illus. 12)
12	Motor, Timer
13	bezel, switch (2)
14	488946 Whirlpool Air Conditioner Clamp
14	WP308605 Whirlpool Refrigerator Clamp
14	Strain Relief (3)
14	WP308685 Whirlpool Microwave Screw
14	SCREW
15	WPW10339879 Whirlpool Wire Tie
17	Knob, Thermostat
18	Knob, Selector
19	Screw, 10A x 2
19	frame, control panel
20	Screw,
20	filler, control panel
21	glass, control panel
22	retainer, glass (10)
23	Seal, Foam
24	knob, control
25	bezel control knob (4)
26	spring, bezel (4)
27	knob, timer
