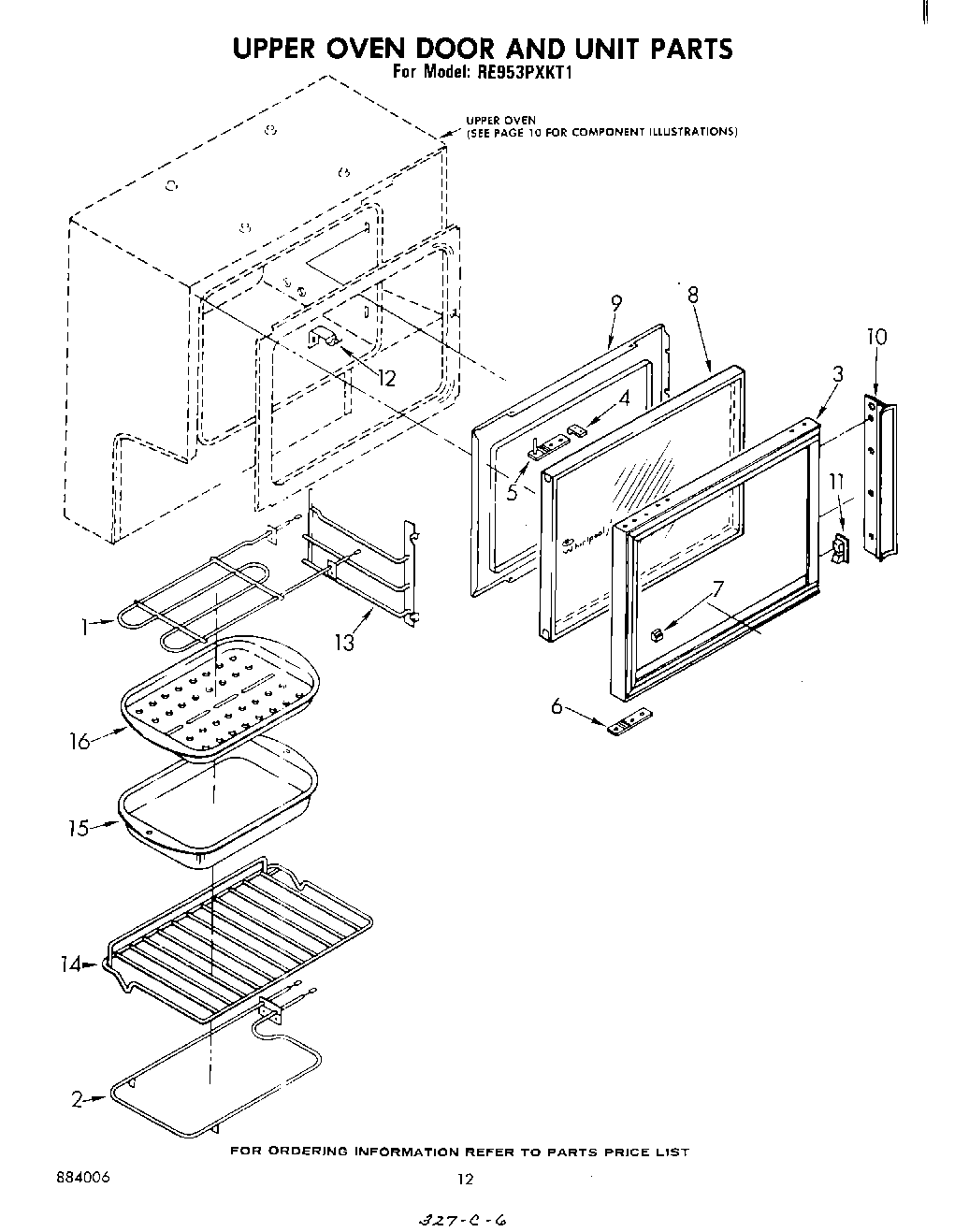

RE953PXKT1 07 – UPPER OVEN DOOR AND UNIT

Products

Position	Product
1	unit, broil
2	Screw, 10-32 x 3/4
2	unit, bake
3	frame, door
3	Broil Stop
5	washer
5	plate, hinge
6	screw, 10-24 x 3/8 (2)
6	plate hinge plated (2)
6	Washer (2)
7	Cushion, Window (9)
8	window, oven door
9	Speed Nut (6)
9	liner, door
10	Grill, Bottom (Screw (3))
10	handle, connoisseur
10	WP488627 Whirlpool Refrigerator Screw
11	catch, door
12	panel, top (screw, 10a x 3/8 (3))
12	spring, broil stop
13	support, oven rack (2)
14	rack, upper oven
15	4396923 Whirlpool Broil Pan Set Gray Porcelain
