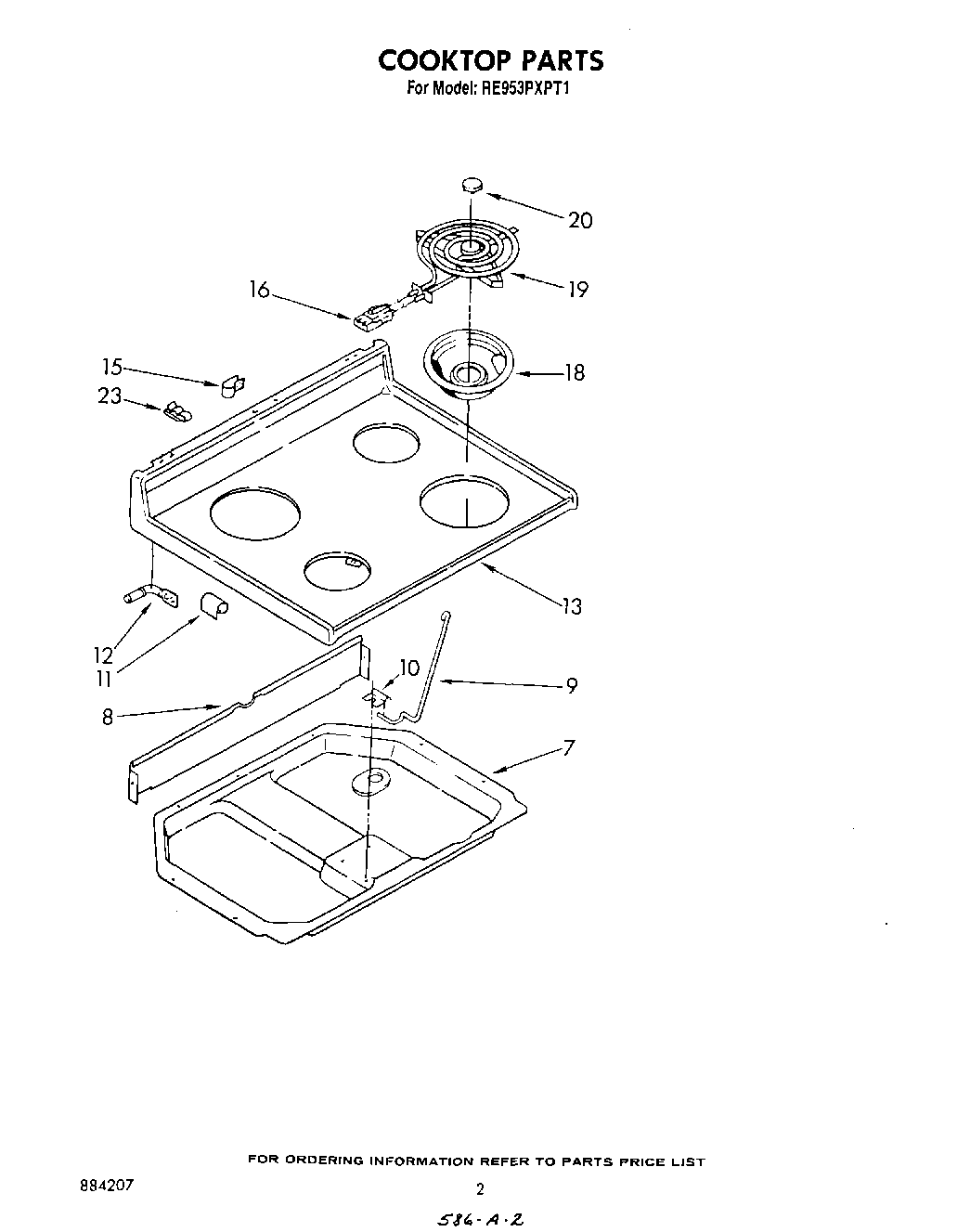

RE953PXPT1 02 – COOK TOP

RE953PXPT1 02 – COOK TOP

Written by

in

RE953PXPT1 02 – COOK TOP

Products

PositionProduct
7Burner Box
8Shield, Wiring
9Rod, Cooktop
10Retainer, Cooktop
10WP3390631 Whirlpool Screw
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
12SCREW
13WP308685 Whirlpool Microwave Screw
13Cooktop (Chrome)
15WP965173 Whirlpool Dishwasher Screw
15WP308605 Whirlpool Refrigerator Clamp
16WP313808 Whirlpool Screw
16BURNER RECEPTACLE KIT
18DRIP BOWL 8" W/HOLE CHROME
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
19WP660533 Whirlpool Oven 8" Surface Element
19WPY04100165 Whirlpool Surface Element
20Medallion (4)
23Clip, Tube
