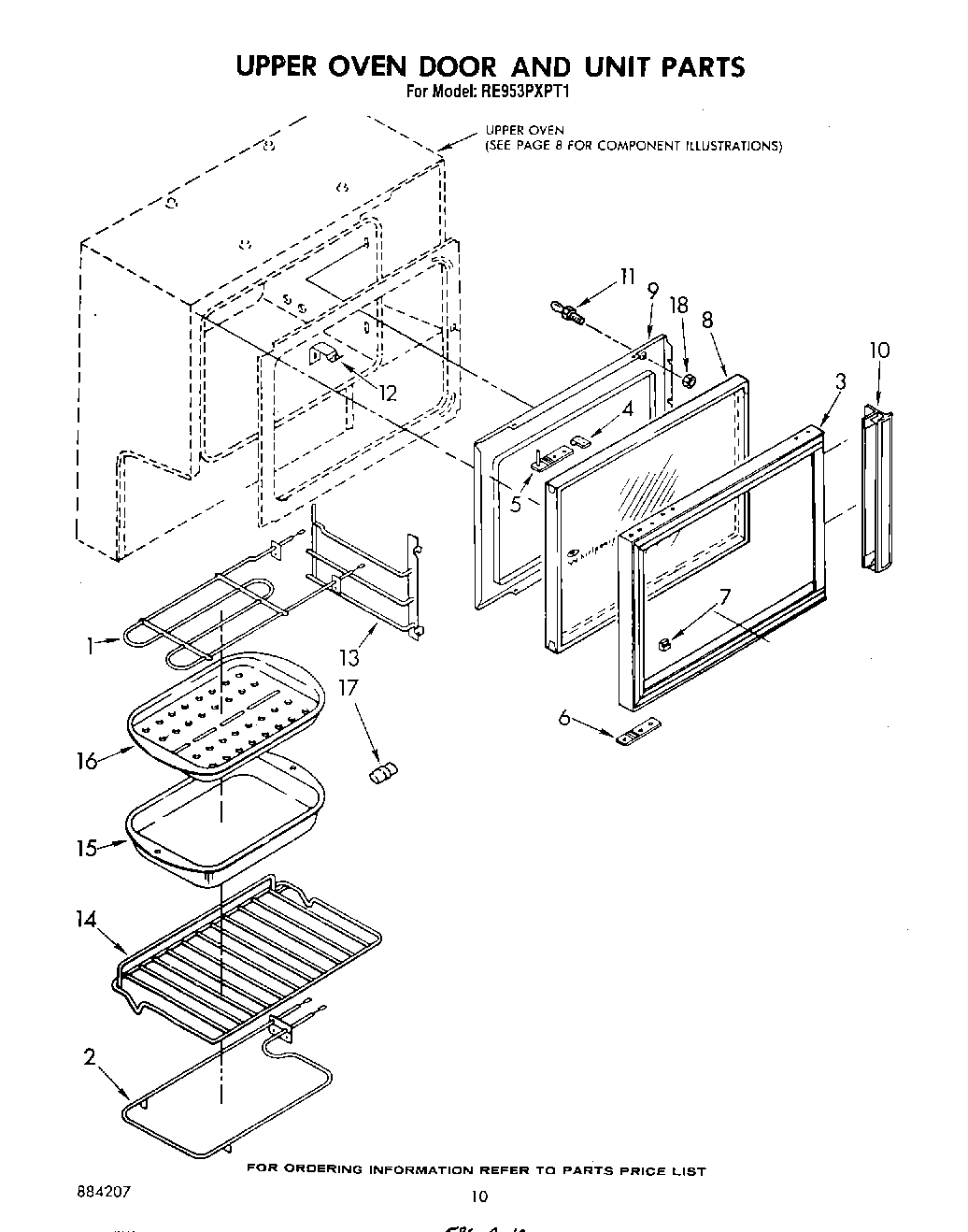

RE953PXPT1 07 – UPPER OVEN DOOR AND UNIT

Products

Position	Product
1	unit, broil
2	unit, bake
2	Screw, 10-32 x 5/8 (4)
3	Frame, Door
4	Broil Stop
5	plate, hinge
6	Washer (2)
6	plate hinge plated (2)
7	Cushion, Window (9)
8	window, oven door
9	Liner, Door
10	WP488627 Whirlpool Refrigerator Screw
10	Handle,
10	Screw
11	Catch, Door
12	spring, broil stop
12	panel, top (screw, 10a x 3/8 (3))
13	support, oven rack (2)
14	rack, upper oven
15	4396923 Whirlpool Broil Pan Set Gray Porcelain
17	WP75614 Whirlpool Connector
18	WP488130 Whirlpool Air Conditioner Nut
