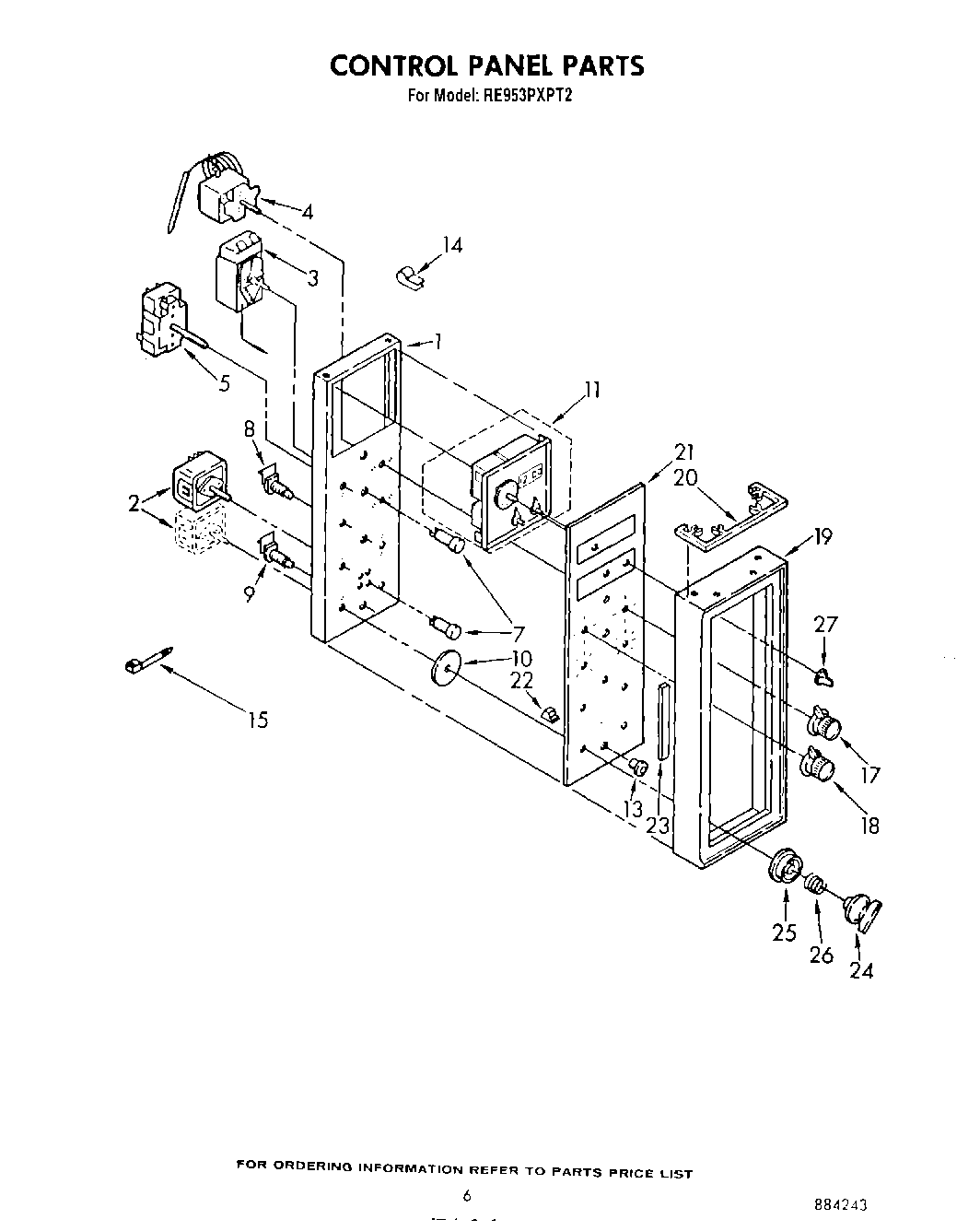

RE953PXPT2 05 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
1	Plug Button
2	switch, infinite (4)
3	thermostat, oven (pyro)
4	Thermostat (Upper Oven)
5	Screw, 8-32 x 3/16 (2)
5	Switch, Selector (4 Position)
7	Light, Indicator 250V (6)
8	Switch, Fluorescent Light
9	Lockwasher
9	Switch, Oven Light
10	Skirt, Knob (4)
11	Timer, Digital (Includes Illus. 12)
11	WP313808 Whirlpool Screw
11	WP488627 Whirlpool Refrigerator Screw
11	SCREW
13	Bezel Switch (1)
14	WP3390631 Whirlpool Screw
14	Strain Relief
15	WPW10339879 Whirlpool Wire Tie
17	Knob, Thermostat
18	Screw
18	Knob, Selector
18	WP688805 Whirlpool Spring Clip
19	Screw, 10A x 2
19	Frame, Control Panel
20	Screw,
20	filler, control panel
21	Glass, Control Panel
22	retainer, glass (10)
23	Seal, Foam
24	Knob, Control (4)
25	bezel control knob (4)
26	spring, bezel (4)
27	WP3169181 Whirlpool Knob
27	Spring (3)
