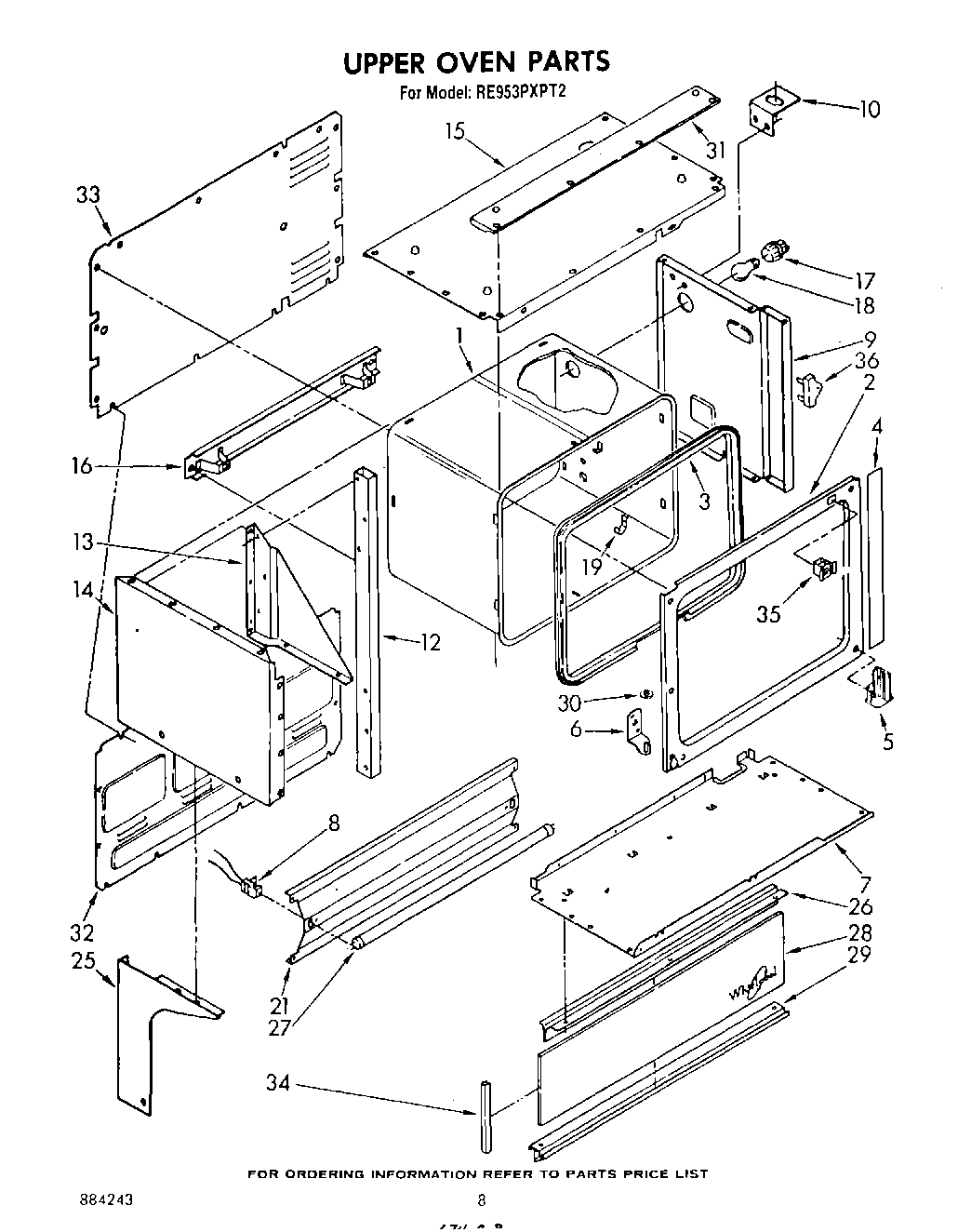

RE953PXPT2 06 – UPPER OVEN

RE953PXPT2 06 – UPPER OVEN

Written by

in

RE953PXPT2 06 – UPPER OVEN

Products

PositionProduct
Screw (10-12 x .875)
1Oven (Continuous Clean)
2Frame, Front
3seal, door
4shield, upper oven
5latch plate (upper oven)
6screw, 10-24 x 3/8 (2)
6bracket, hinge
7Bottom Panel
7Channel, Rubber (4)
8Socket Assembly R.H.
8Socket Assembly L.H.
9baffle
10Bracket, Receptacle
12Support, Tubing L.H.
12Support, Tubing R.H.
13Gusset, L.H.
13Gusset, R.H.
14Panel, Side L.H. (Almond)
14panel, side l.h. (almond panel, side r.h.)
15WP965173 Whirlpool Dishwasher Screw
15Panel, Top (Almond)
15panel, top (screw, 10a x 3/8 (3))
16Nut, Retainer (2)
16support, oven
16bolt (2)
17Socket, Oven Light
17Socket, Oven Light (Alt.)
17Socket, Oven Light (Alt.)
18RANGE ONLY 40W 120V APPL BULB
1998005642 Whirlpool Clip
21Panel, Backguard
25WPL 246134
25WPL 330197
25WPL 330203
26WP488627 Whirlpool Refrigerator Screw
26WPL 313320
27WP95292 Whirlpool Fluorescent Light Bulb
28WPL 313322
29WPL 313321
29WP90767 Whirlpool Screw
30WPL 306615
31WPL 327916
32WPL 308112
33SCREW
33WPL 309507
34WPL 313319
35WPL 313793
36WP3196548 Whirlpool Thermal Fuse
