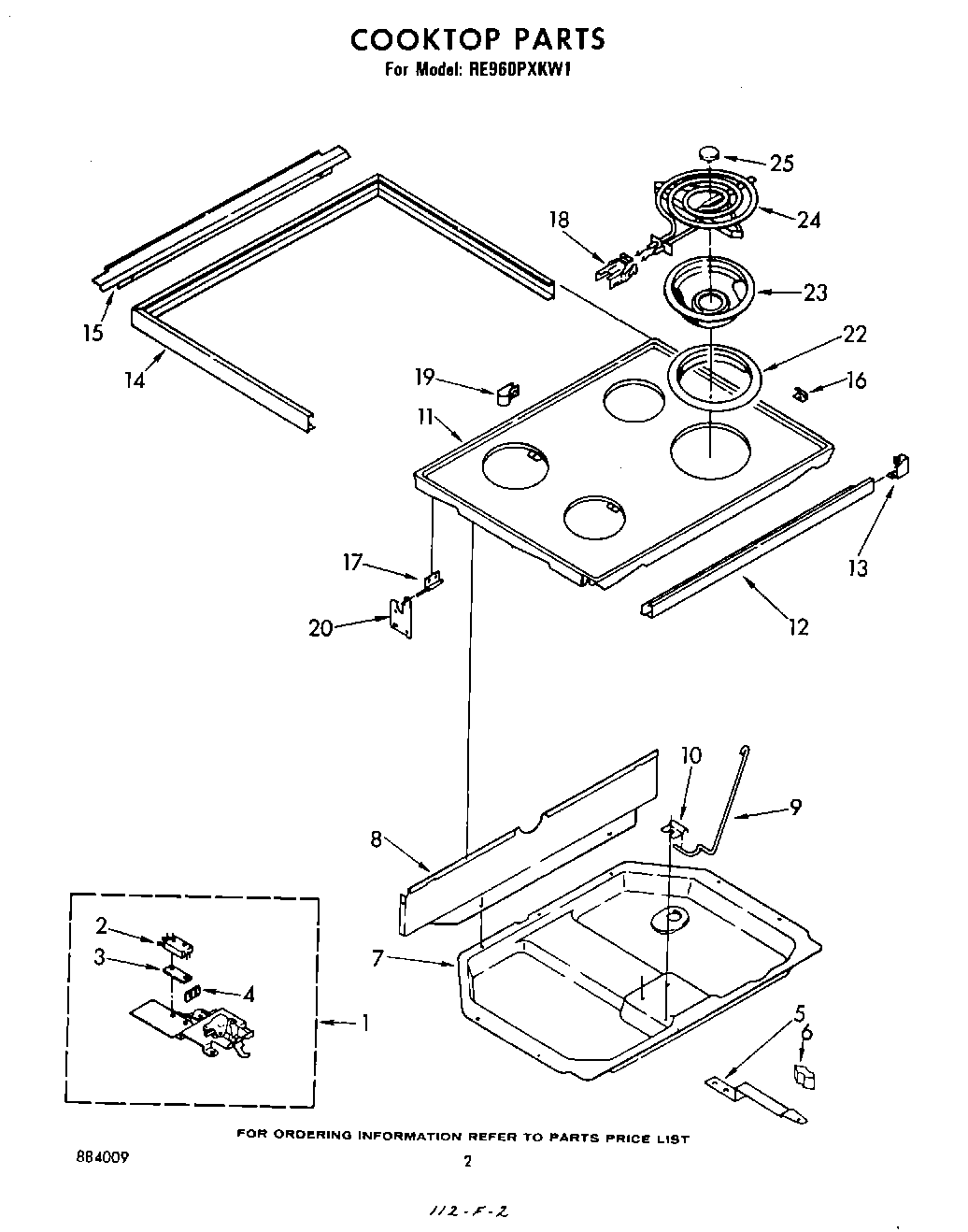

| 1 | Latch Assembly |
| 2 | Screw |
| 2 | Safety Switch |
| 3 | Insulator, Switch |
| 4 | Terminal |
| 5 | Screw (3) |
| 5 | Handle, Latch |
| 5 | Screw |
| 5 | WP488627 Whirlpool Refrigerator Screw |
| 6 | Knob, Latch |
| 7 | burner box |
| 8 | Shield, Wiring |
| 9 | Rod, Cooktop |
| 9 | SCREW |
| 10 | WP3390631 Whirlpool Screw |
| 10 | Retainer, Cooktop |
| 11 | Cooktop (White) |
| 11 | Cooktop (Almond) |
| 11 | Cooktop (Golden Harvest) |
| 11 | Clip (2) |
| 12 | trim, cooktop front |
| 13 | Clip (4) |
| 13 | end cap trim l.h. |
| 13 | end cap trim r.h. |
| 13 | Screw, 8A x 3/8 (2) |
| 14 | W11693756 Whirlpool Screw Assembly |
| 14 | trim, cooktop side & rear |
| 15 | trim, rear |
| 16 | WP308685 Whirlpool Microwave Screw |
| 16 | bracket, cooktop (6) |
| 17 | Hinge, Leaf Cooktop R.H. |
| 17 | Hinge, Leaf Cooktop L.H. |
| 18 | BURNER RECEPTACLE KIT |
| 18 | WP313808 Whirlpool Screw |
| 19 | WP308605 Whirlpool Refrigerator Clamp |
| 19 | WP965173 Whirlpool Dishwasher Screw |
| 20 | hinge (2) |
| 20 | WP308544 Whirlpool Screw |
| 22 | W10854470 Whirlpool Trim Ring |
| 22 | W10858781 Whirlpool Trim Ring |
| 23 | W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set |
| 24 | WPY04100165 Whirlpool Surface Element |
| 24 | WP660533 Whirlpool Oven 8" Surface Element |
| 25 | medallion |
