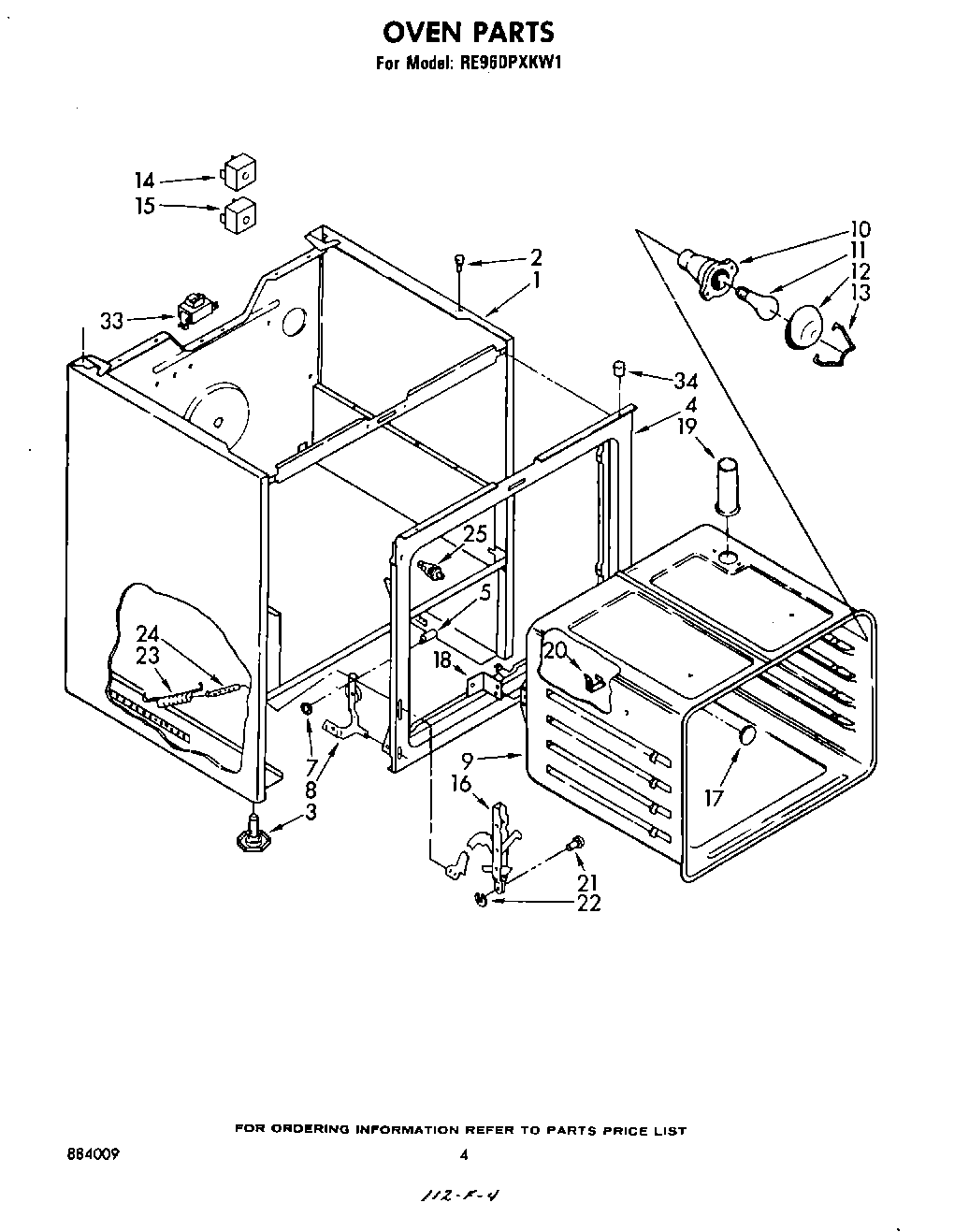

| 1 | Griddle Cover (Almond 1633L1A, L2A) |
| 1 | main chassis (almond) |
| 1 | Lining-Compartment Door (16331A,2A |
| 2 | 238614 Whirlpool Bumper Hinge |
| 3 | WP233550 Whirlpool Leveling Feet |
| 4 | Frame, Front |
| 5 | Pin, Hinge Ear (2) |
| 7 | Pushnut (2) |
| 8 | Hinge (L.H.) |
| 8 | Hinge (R.H.) |
| 8 | SCREW |
| 9 | Oven (30`` Pyro) |
| 9 | Screw (3) |
| 10 | Socket, Oven Light (Alt.) |
| 10 | Socket, Oven Light (Alt.) |
| 10 | Screw (10-12 x .875) |
| 11 | RANGE ONLY 40W 120V APPL BULB |
| 12 | Cover, Light |
| 13 | Retainer, Light |
| 14 | Switch, Broil |
| 15 | Switch, Bake |
| 16 | Channel, Arm (2) |
| 17 | Plug Button |
| 18 | Bracket, Oven (Mounting) |
| 19 | WP308685 Whirlpool Microwave Screw |
| 19 | Vent, Oven |
| 20 | 98005642 Whirlpool Clip |
| 21 | WP307986 Whirlpool Hinge Pin |
| 22 | Retainer Ring (2) |
| 23 | WP308126 Whirlpool Door Spring |
| 24 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 25 | Switch, Door |
| 33 | Ballast (Alt.) |
| 33 | Ballast (Alt.) |
| 34 | Screw, 8-32 x 5/16 (2) |
| 34 | locator, cooktop |
