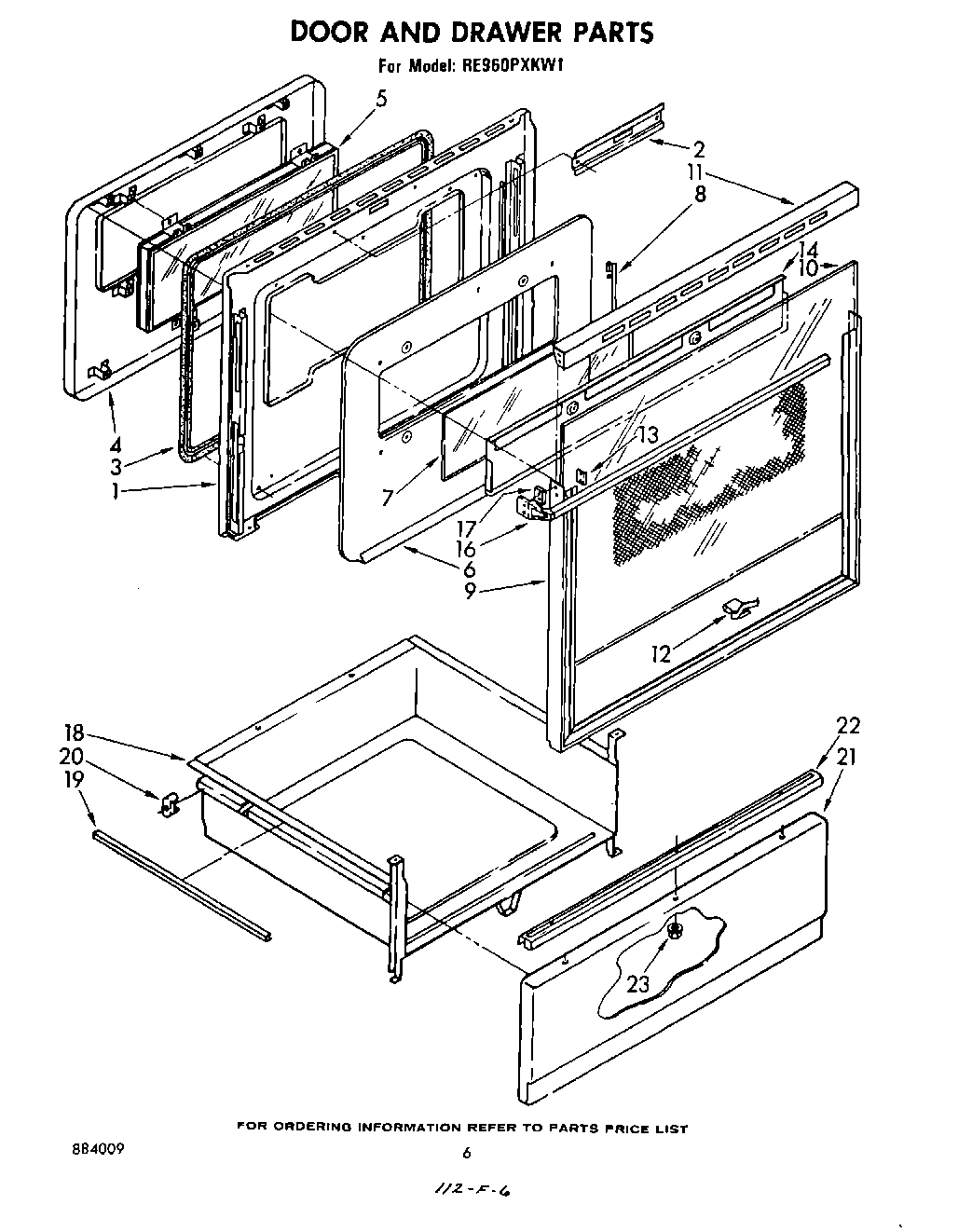

RE960PXKW1 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
1	Clip (2)
2	Screw (2)
2	Channel, Latch
3	Seal, Fiberglass
4	Panel, Inner
5	Window Package
6	Retainer, Insulation
7	Glass (6.81“ x 18.31“)
8	Retainer, Glass (2)
9	frame, door 30“
10	Glass, Outer
11	Screw, 10A x 1/2 (2) (Black)
11	Top, Door Frame
12	clip, glass (10)
13	screw (3)
14	Baffle, Heat
14	WP90296 Whirlpool Clip
16	WP912618 Whirlpool Dishwasher Screw
16	Handle, Oven Door
17	Spacer, Door Handle (2)
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
20	WP308685 Whirlpool Microwave Screw
21	Panel Drawer (Harvest Gold)
21	Panel Drawer (Black)
21	Panel, Drawer (Screw, 8-32 (3))
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
21	Panel, Drawer (New Avocado)
22	Handle, Drawer
23	WP486255 Whirlpool Air Conditioner Nut
