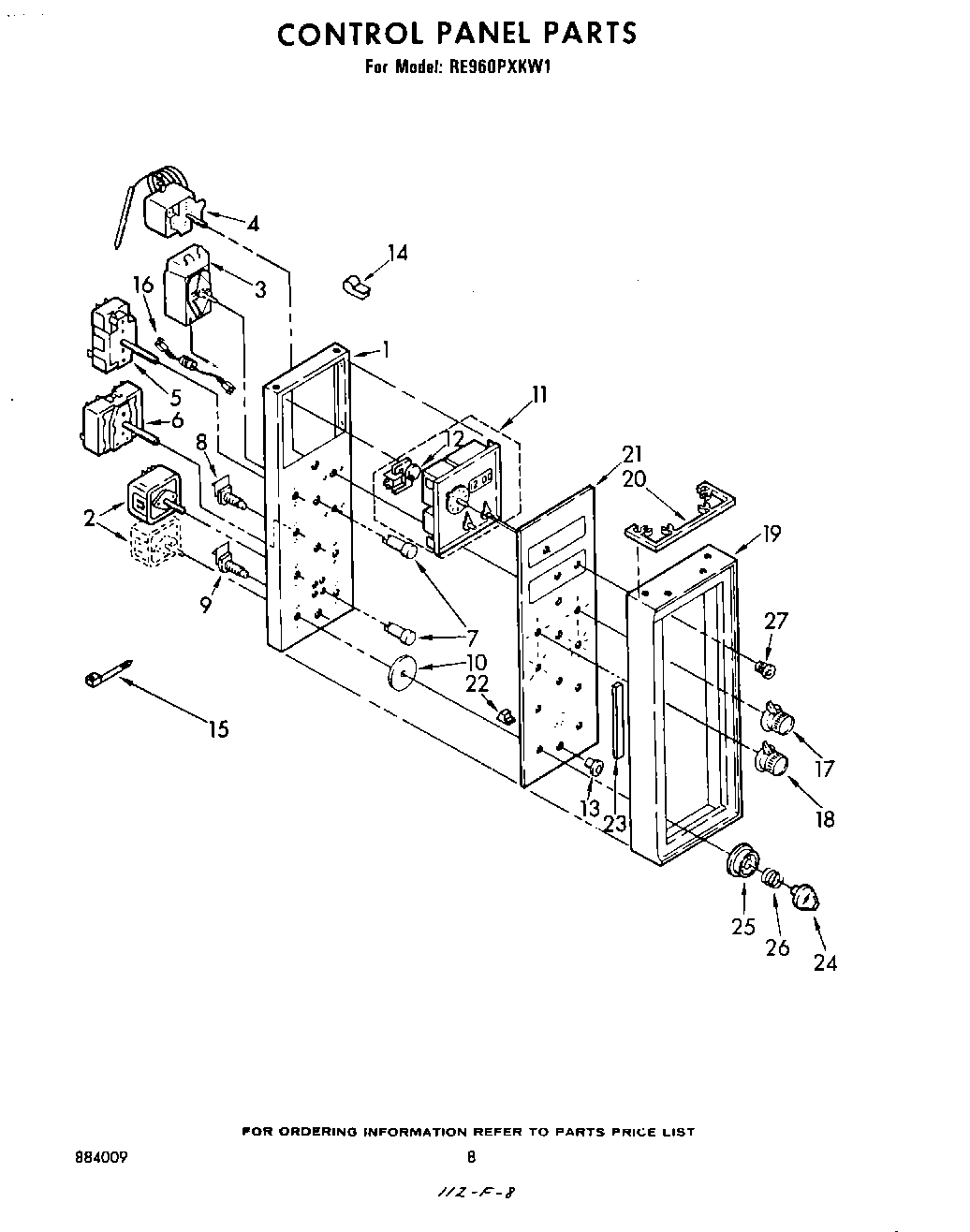

RE960PXKW1 05 – CONTROL PANEL

Products

Position	Product
1	panel, control
2	switch, infinite (4)
3	Thermostat, Oven (Pyro)
4	Thermostat (Upper Oven)
4	screw, 6-32 x 1/4 (2)
5	Switch, Selector (4 Position)
6	Screw, 8-32 x 3/16 (2)
6	Switch, Selector (Pyro)
7	Light, Indicator 250V (6)
8	Switch, Fluorescent Light
9	nut, 3/8 x 27
9	Switch, Oven Light
10	Skirt, Knob (4)
11	timer, digital (includes illus. 12)
11	WP488627 Whirlpool Refrigerator Screw
11	WP486754 Whirlpool Compactor Screw
12	Motor, Timer
13	bezel, switch (2)
14	Strain Relief
14	488946 Whirlpool Air Conditioner Clamp
14	WP308605 Whirlpool Refrigerator Clamp
14	SCREW
14	WP308685 Whirlpool Microwave Screw
14	Strain Relief (3)
15	WPW10339879 Whirlpool Wire Tie
16	Resistor & Terminal Assembly
17	Knob, Thermostat
18	Knob, Selector
19	frame, control panel
19	Screw, 10A x 2
20	Screw,
20	filler, control panel
21	Glass, Control Panel
22	retainer, glass (10)
23	Seal, Foam
24	knob, control
25	bezel control knob (4)
26	spring, bezel (4)
27	knob, timer
