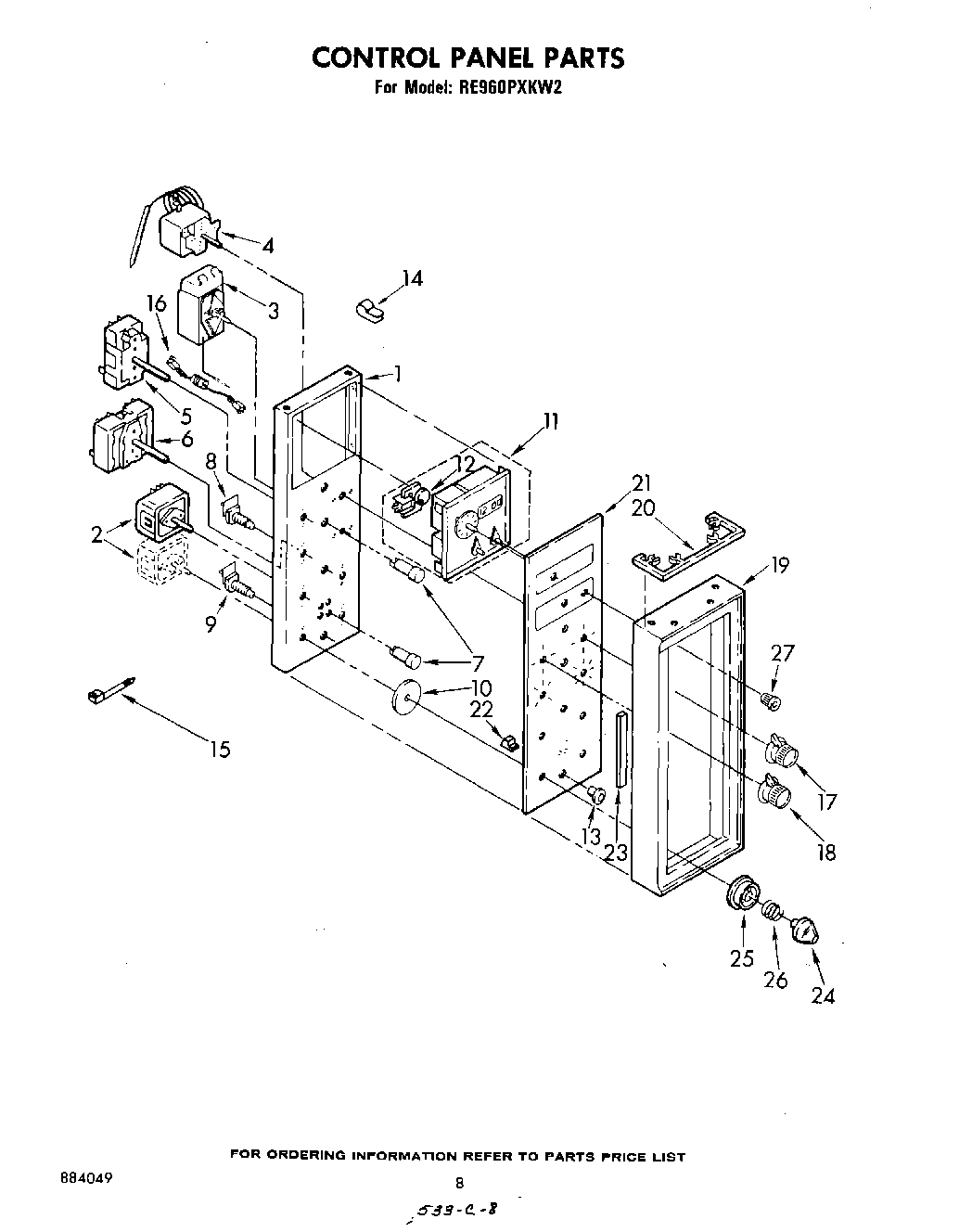

RE960PXKW2 05 – CONTROL

Products

Position	Product
1	panel, control
2	switch, infinite (4)
3	Thermostat, Oven (Pyro)
4	screw, 6-32 x 1/4 (2)
4	Thermostat (Upper Oven)
5	Switch, Selector (4 Position)
6	Switch, Selector (Pyro)
6	Screw, 8-32 x 3/16 (2)
7	Light, Indicator 250V (6)
8	Switch, Fluorescent Light
9	Switch, Oven Light
9	nut, 3/8 x 27
10	Skirt, Knob (4)
11	WP313808 Whirlpool Screw
11	timer, digital (includes illus. 12)
11	WP488627 Whirlpool Refrigerator Screw
12	Motor, Timer
13	Bezel Switch (1)
13	SCREW
14	WP308605 Whirlpool Refrigerator Clamp
14	WP3390631 Whirlpool Screw
14	WP308685 Whirlpool Microwave Screw
14	Strain Relief (3)
15	WPW10339879 Whirlpool Wire Tie
16	Resistor & Terminal Assembly
17	Knob, Thermostat
18	Knob, Selector
18	WP688805 Whirlpool Spring Clip
19	Screw, 10A x 2
19	Frame, Control Panel
20	filler, control panel
20	Screw,
21	Glass, Control Panel
22	retainer, glass (10)
23	Seal, Foam
24	Knob, Control (4)
25	bezel control knob (4)
26	spring, bezel (4)
27	WPL 312808
