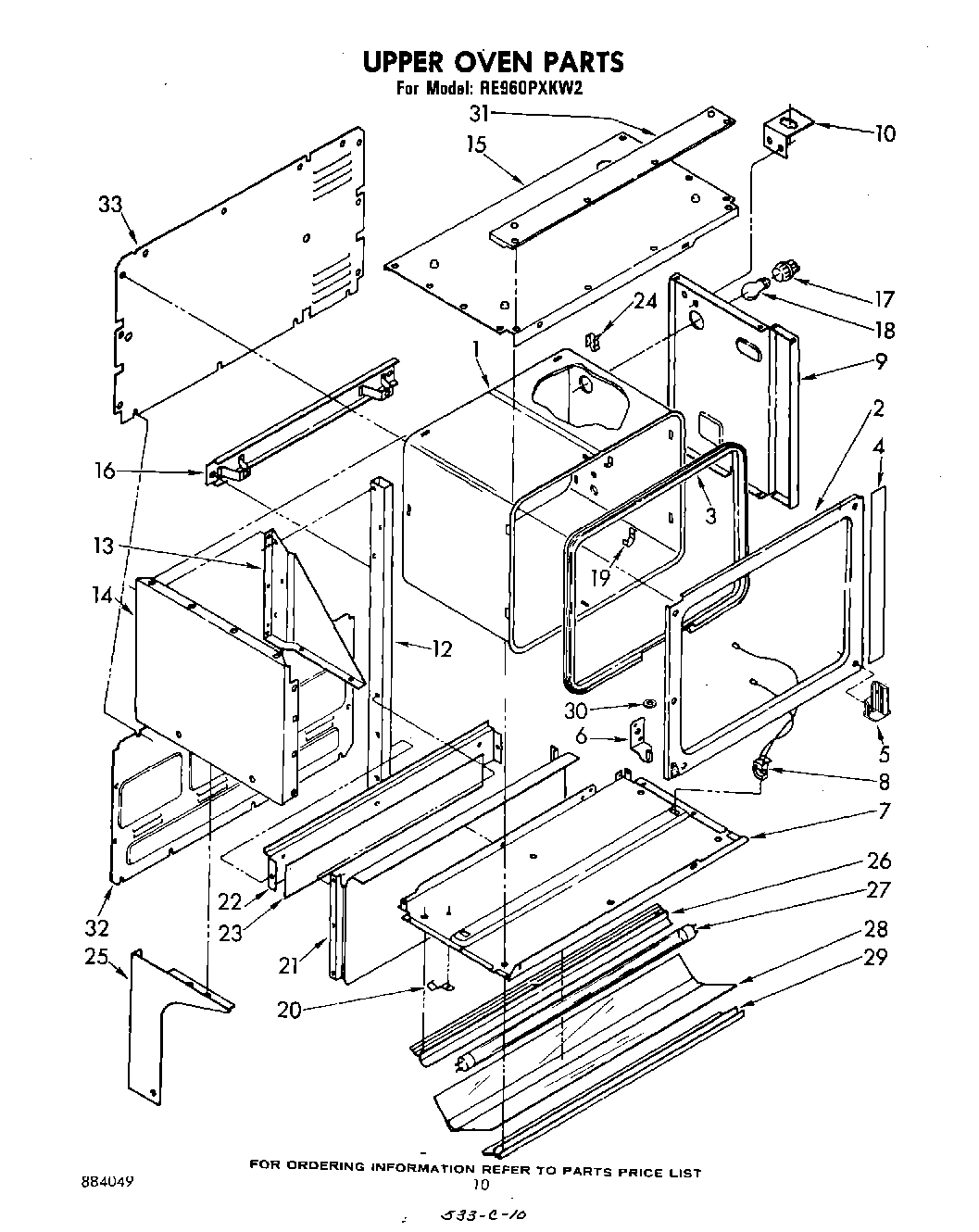

RE960PXKW2 06 – UPPER OVEN

Products

Position	Product
1	Oven (Continuous Clean)
2	frame, front
3	seal, door
4	shield, upper oven
5	latch plate (upper oven)
6	screw, 10-24 x 3/8 (2)
6	bracket, hinge
7	bottom panel
8	Socket Assembly, R.H.
8	Socket Assembly, L. H.
9	baffle
10	Bracket, Receptacle
12	Support, Tubing L.H.
12	Support, Tubing R.H.
13	Gusset, R.H.
13	Gusset, L.H.
14	Panel, Side L.H. (Almond)
14	Panel, Side L.H. (White)
14	Panel, Side L.H. (White)
14	Panel, Side L.H. (Platinum)
14	Panel, Side L.H. (Toast)
14	Panel, Side L.H. (Harvest Gold)
14	Panel, Side L.H. (Platinum Panel, Side R.H.)
14	Panel, Side L.H. (Toast)
14	Panel, Side L.H. (Harvest Gold)
14	panel, side l.h. (almond panel, side r.h.)
15	Panel, Top (White)
15	Panel, Top (Harvest Gold)
15	WPL 312470
15	WPL 312471
15	SCREW
15	Panel, Top (Almond)
16	bolt (2)
16	Nut, Retainer (2)
16	support, oven
17	Socket, Oven Light (Alt.)
17	Socket, Oven Light (Alt.)
17	Screw (10-12 x .875)
18	RANGE ONLY 40W 120V APPL BULB
19	98005642 Whirlpool Clip
20	WP965173 Whirlpool Dishwasher Screw
20	spring, glass (4)
21	WPL 312553
22	WPL 308776
23	panel, top (screw, 10a x 3/8 (3))
23	WPL 309144
24	WPL 309211
25	WPL 246134
25	Trim, End R.H. (Golden Harvest)
25	Bracket-Insulation Retainer (Lt. or Rt.)
25	WPL 310304
25	WPL 328156
25	Trim, End R.H. (Golden Harvest)
25	WPL 308980
25	WPL 328150
25	WPL 328154
25	Trim, End R.H. (White)
25	WPL 328155
25	WPL 328152
25	WPL 328151
26	WPL 308896
27	WP95292 Whirlpool Fluorescent Light Bulb
28	WPL 328306
29	WPL 308897
29	WP488627 Whirlpool Refrigerator Screw
30	WPL 306615
31	WPL 327916
31	WPL 312331
32	WPL 308112
32	WP308544 Whirlpool Screw
33	WPL 309507
