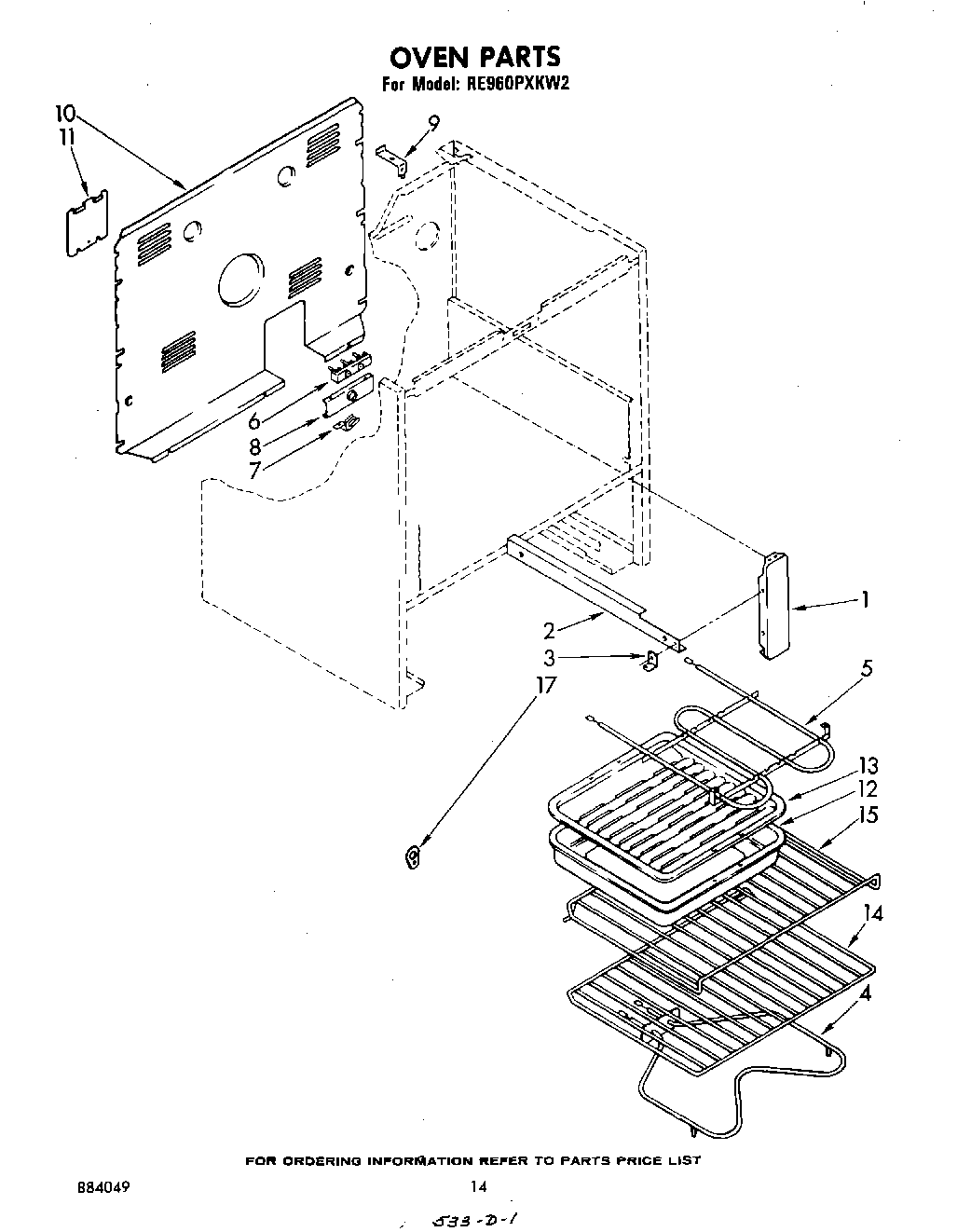

RE960PXKW2 08 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Products

Position	Product
	Golden Harvest (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	511873 Whirlpool Refrigerator Paint
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, New Avocado (1 Qt. Uncut)
1	Bracket, Mounting (2)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	W10841059 Whirlpool Screw
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	SCREW
7	WPL 308498
8	Bracket, Service
9	WPL 309102
10	Cover, Rear
11	Cover, Service
11	WP308544 Whirlpool Screw
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Leveler (Thinner) (2oz.)
17	WPL 884049
17	Wire (14 Ga. 150 c Yellow)
17	Wire (12 Ga. 150 c Black)
17	WPL 312490
17	WPL 308500
17	Wire (14 Ga. 200 c Brown)
17	WPL 311982
17	1
17	Installation Instructions
17	Rotisserie Kit (RCK 81)
17	350930 Whirlpool White Spray Paint
17	WPL 799351
17	Grease
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	350942 Whirlpool Spray Paint
17	WPL 72112
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	Golden Harvest
17	72113 Whirlpool Touch-Up Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	WP72107 Whirlpool Touchup
17	72017 Whirlpool Appliance Touch-Up Paint White
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	Wire, 25` Roll (Black 14 Ga.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	Screw, 10-32 x 5/8 (4)
17	285006 Whirlpool Spray
17	Touch-Up Oven (1 Oz.)
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	Wire, 25“ Roll (White 14 GA.)
17	350956 Whirlpool Spray Assembly
