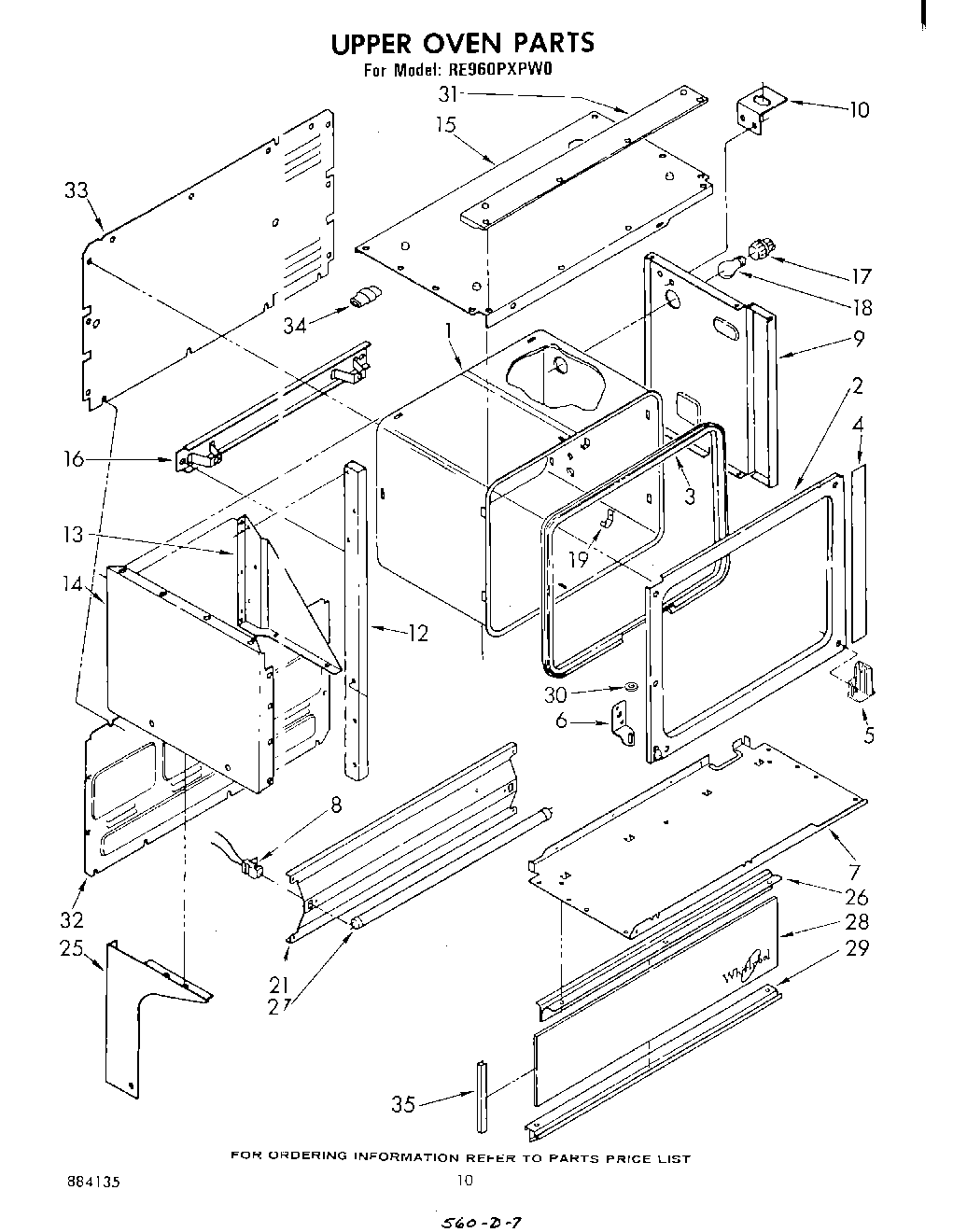

RE960PXPW0 06 – UPPER OVEN

RE960PXPW0 06 – UPPER OVEN

Written by

in

RE960PXPW0 06 – UPPER OVEN

Products

PositionProduct
Screw (10-12 x .875)
1Oven (Continuous Clean)
2frame, front
3seal, door
4shield, upper oven
5latch plate (upper oven)
6bracket, hinge
6screw, 10-24 x 3/8 (2)
7Channel, Rubber (4)
7Bottom Panel
8Socket Assembly R.H.
8Socket Assembly R.H.
9baffle
10Bracket, Receptacle
12Support, Tubing L.H.
12Support, Tubing R.H.
13Gusset, L.H.
13Gusset, R.H.
14Panel, Side L.H. (Toast)
14Panel, Side L.H. (Harvest Gold)
14Panel, Side L.H. (White)
14Panel, Side L.H. (Almond)
14Panel, Side L.H. (White)
14Panel, Side L.H. (Platinum)
14Panel, Side L.H. (Harvest Gold)
14panel, side l.h. (almond panel, side r.h.)
14Panel, Side L.H. (Platinum Panel, Side R.H.)
14Panel, Side L.H. (Toast)
15WPL 312470
15Panel, Top (Harvest Gold)
15panel, top (screw, 10a x 3/8 (3))
15Panel, Top (White)
15Panel, Top (Almond)
15WPL 312471
16bolt (2)
16Nut, Retainer (2)
16support, oven
17Socket, Oven Light
17Socket, Oven Light (Alt.)
17Socket, Oven Light (Alt.)
18RANGE ONLY 40W 120V APPL BULB
1998005642 Whirlpool Clip
21Panel, Backguard
25WPL 246134
25WPL 330195
25WPL 330196
25WPL 330197
25WPL 330201
25WPL 330202
25WPL 330204
25WPL 330198
25WPL 330194
25WPL 330200
25WPL 330203
26WPL 313320
27WP95292 Whirlpool Fluorescent Light Bulb
28WPL 313322
29WP488627 Whirlpool Refrigerator Screw
29WP965173 Whirlpool Dishwasher Screw
29WPL 313321
30WPL 306615
31WPL 312331
31WPL 327916
32WPL 308112
33WPL 309507
33SCREW
34WP75614 Whirlpool Connector
35WPL 313319
