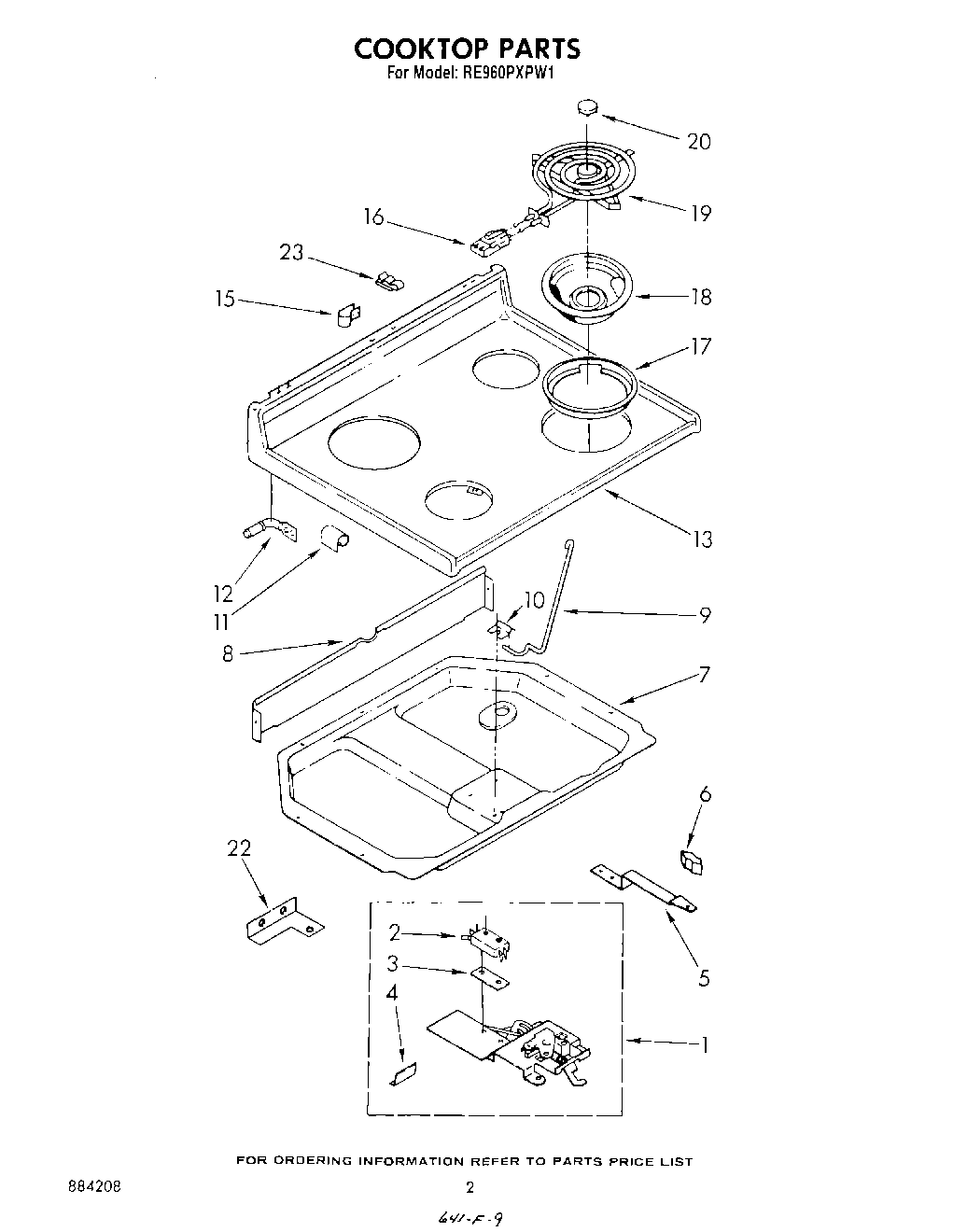

RE960PXPW1 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw (3)
5	WP488627 Whirlpool Refrigerator Screw
5	Handle, Latch
5	Screw
6	Knob, Latch
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Bracket, Cooktop (2)
12	SCREW
12	Pin, Cooktop (2)
13	Cooktop (Harvest Gold)
13	Cooktop (Platinum)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (White)
13	Cooktop (Almond)
13	Cooktop (Toast)
15	WP308605 Whirlpool Refrigerator Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	WP313808 Whirlpool Screw
16	BURNER RECEPTACLE KIT
17	W10854470 Whirlpool Trim Ring
17	W10858781 Whirlpool Trim Ring
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WPY04100165 Whirlpool Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
22	WPL 312320
22	Screw, 10A x 1/2 (2) (Black)
23	Clip, Tube
