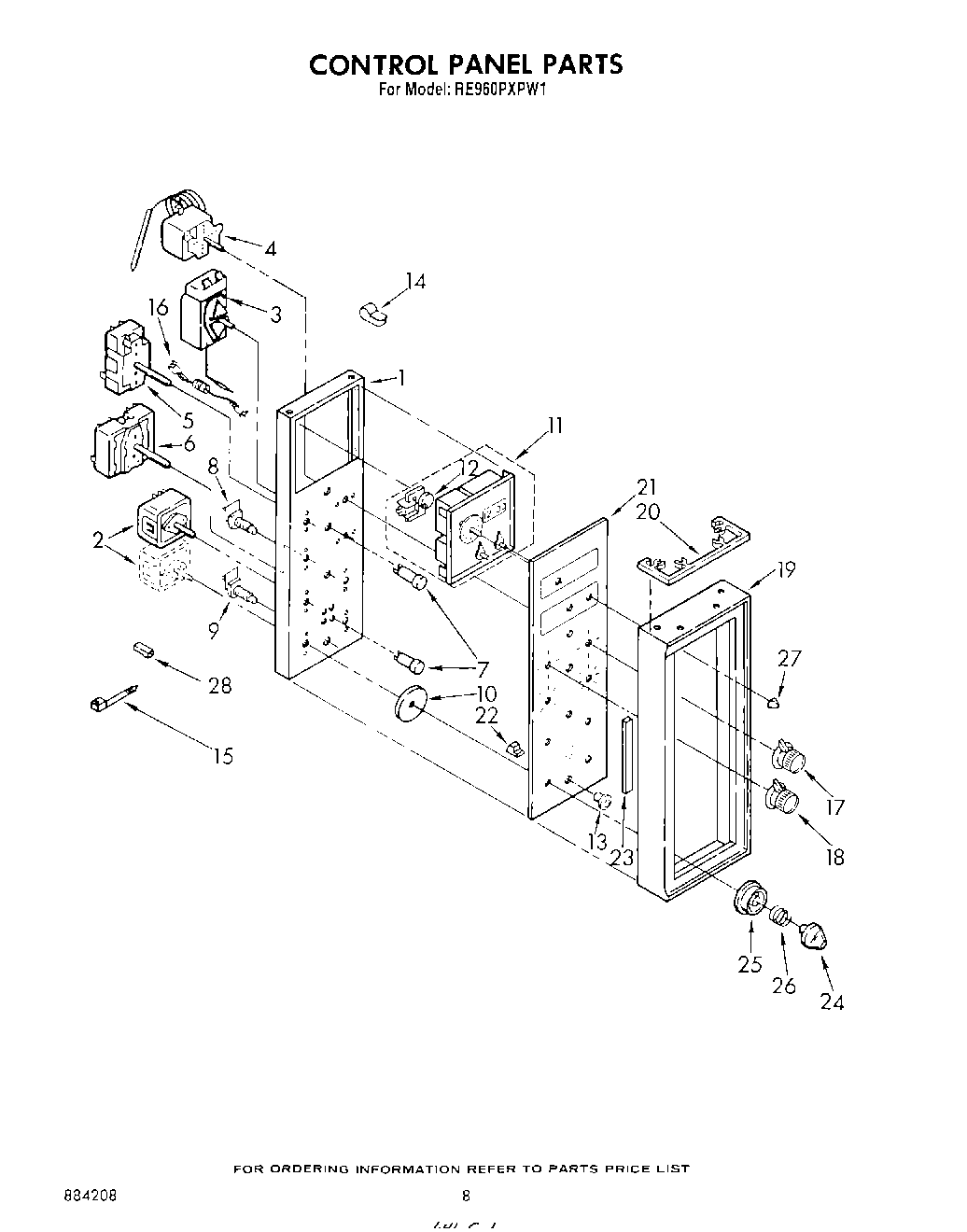

RE960PXPW1 05 – CONTROL PANEL

Products

Position	Product
1	panel, control
2	switch, infinite (4)
3	Thermostat, Oven (Pyro)
4	Thermostat (Upper Oven)
5	Switch, Selector (4 Position)
6	Switch, Selector (Pyro)
6	Screw, 8-32 x 3/16 (2)
7	Light, Indicator 250V (6)
8	Switch, Fluorescent Light
9	Switch, Oven Light
9	nut, 3/8 x 27
10	Skirt, Knob (4)
11	WP488627 Whirlpool Refrigerator Screw
11	Timer, Digital (Includes Illus. 12)
11	SCREW
11	WP313808 Whirlpool Screw
12	Motor, Timer
13	Bezel Switch (1)
14	WP308685 Whirlpool Microwave Screw
14	WP3390631 Whirlpool Screw
14	Strain Relief (3)
14	WP308605 Whirlpool Refrigerator Clamp
15	WPW10339879 Whirlpool Wire Tie
16	Resistor & Terminal Assembly
17	Knob, Thermostat
18	WP688805 Whirlpool Spring Clip
18	Screw
18	Knob, Selector
19	Frame, Control Panel
19	Screw, 10A x 2
20	filler, control panel
20	Screw,
21	Glass, Control Panel
22	retainer, glass (10)
23	Seal, Foam
24	Knob, Control (4)
25	bezel control knob (4)
26	spring, bezel (4)
27	Spring (3)
27	WP3169181 Whirlpool Knob
28	Housing, Receptical
