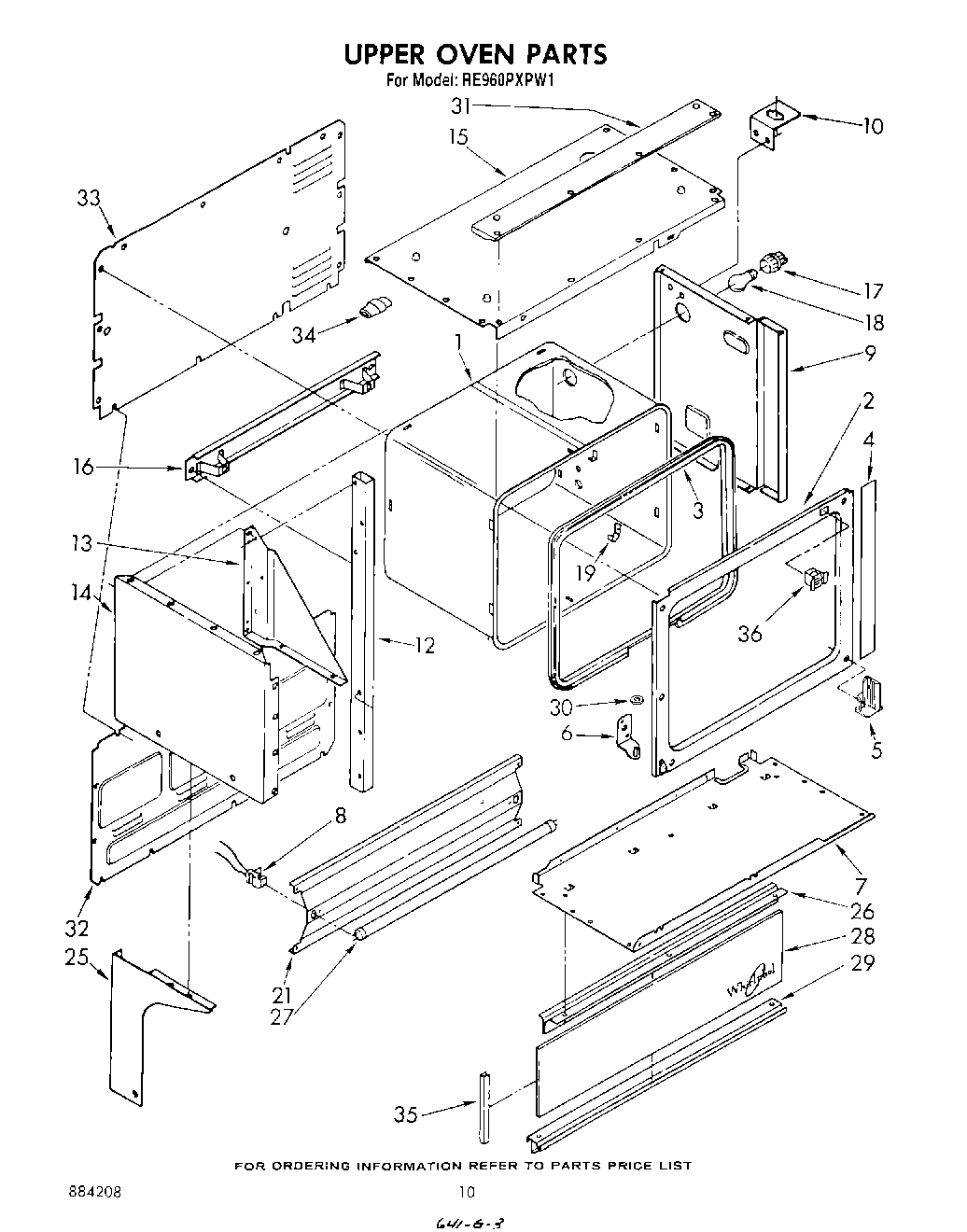

RE960PXPW1 06 – UPPER OVEN

Products

Position	Product
	Screw (10-12 x .875)
1	Oven (Continuous Clean)
2	Frame, Front
3	seal, door
4	shield, upper oven
5	latch plate (upper oven)
6	bracket, hinge
6	screw, 10-24 x 3/8 (2)
7	Channel, Rubber (4)
7	Bottom Panel
8	Socket Assembly R.H.
8	Socket Assembly L.H.
9	baffle
10	Bracket, Receptacle
12	Support, Tubing L.H.
12	Support, Tubing R.H.
13	Gusset, R.H.
13	Gusset, L.H.
14	Panel, Side L.H. (White)
14	Panel, Side L.H. (Almond)
14	Panel, Side L.H. (White)
14	Panel, Side L.H. (Harvest Gold)
14	Panel, Side L.H. (Platinum)
14	Panel, Side L.H. (Toast)
14	Panel, Side L.H. (Harvest Gold)
14	Panel, Side L.H. (Platinum Panel, Side R.H.)
14	Panel, Side L.H. (Toast)
14	panel, side l.h. (almond panel, side r.h.)
15	Panel, Top (White)
15	WPL 313799
15	WPL 313800
15	Panel, Top (Almond)
15	panel, top (screw, 10a x 3/8 (3))
15	Panel, Top (Harvest Gold)
16	Nut, Retainer (2)
16	bolt (2)
16	support, oven
17	Socket, Oven Light (Alt.)
17	Socket, Oven Light (Alt.)
17	Socket, Oven Light
18	RANGE ONLY 40W 120V APPL BULB
19	98005642 Whirlpool Clip
21	Panel, Backguard
25	WPL 330195
25	WPL 330196
25	WPL 330198
25	WPL 330201
25	WPL 330202
25	WPL 246134
25	WPL 330194
25	WPL 330204
25	WPL 330200
25	WPL 330203
25	WPL 330197
26	WPL 313320
27	WP95292 Whirlpool Fluorescent Light Bulb
28	WPL 313322
29	WP488627 Whirlpool Refrigerator Screw
29	WP965173 Whirlpool Dishwasher Screw
29	WPL 313321
30	WPL 306615
31	WPL 312331
31	WPL 327916
32	WPL 308112
33	WPL 309507
33	SCREW
34	WP75614 Whirlpool Connector
35	WPL 313319
36	WPL 313793
