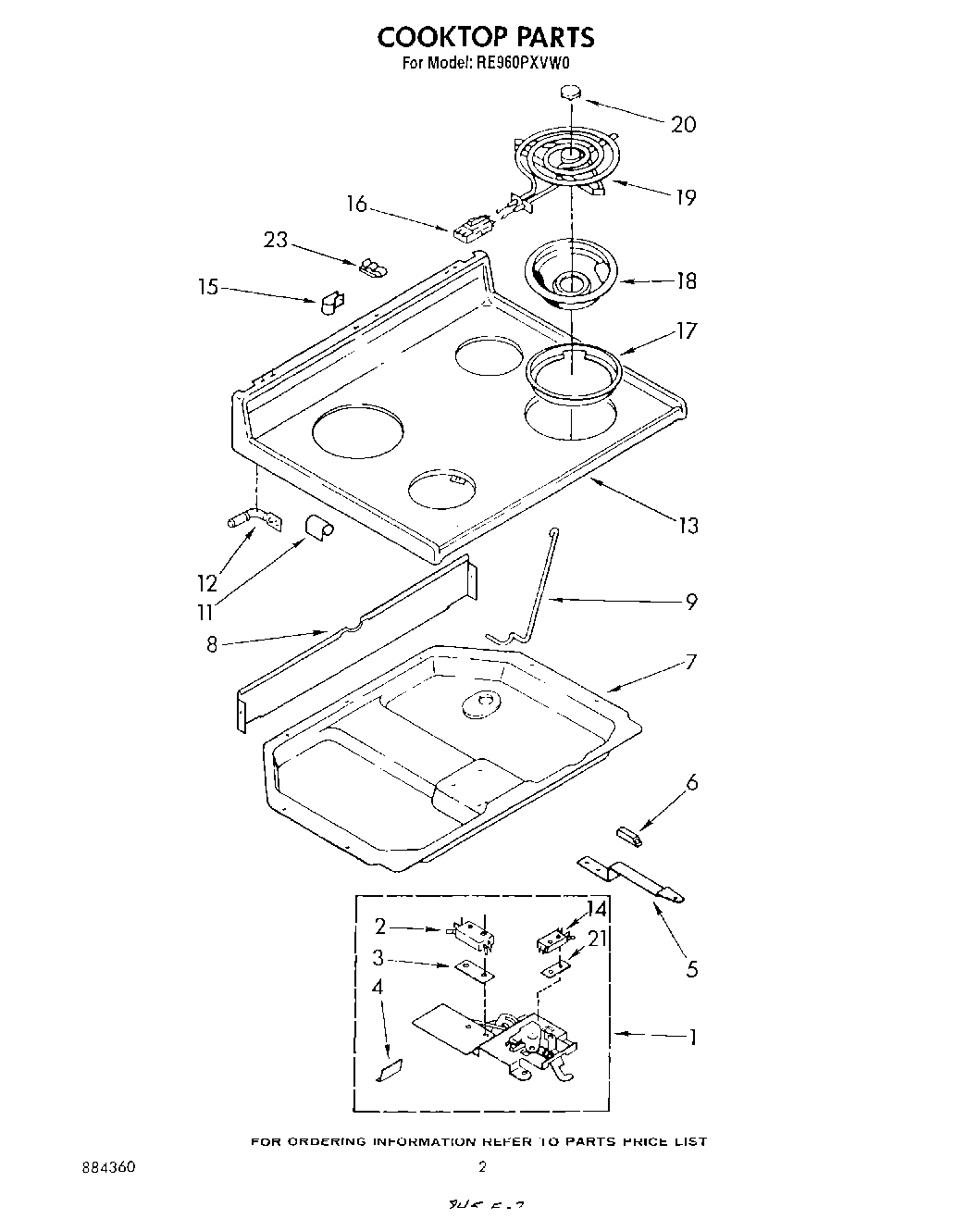

RE960PXVN0 02 – COOKTOP

Products

Position	Product
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
4	WP313808 Whirlpool Screw
5	Screw (3)
5	Handle, Latch
5	Screw
5	WP488627 Whirlpool Refrigerator Screw
6	Knob, Latch
7	Burner Box
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
12	SCREW
13	Cooktop (Almond)
13	Cooktop (White)
13	WP308685 Whirlpool Microwave Screw
14	Screw (2)
14	Switch, Lock
15	WP965173 Whirlpool Dishwasher Screw
15	WP308605 Whirlpool Refrigerator Clamp
16	WP4332752 Whirlpool Clip
17	W10858781 Whirlpool Trim Ring
17	W10854470 Whirlpool Trim Ring
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
21	WPL 3147864
23	Clip, Tube
