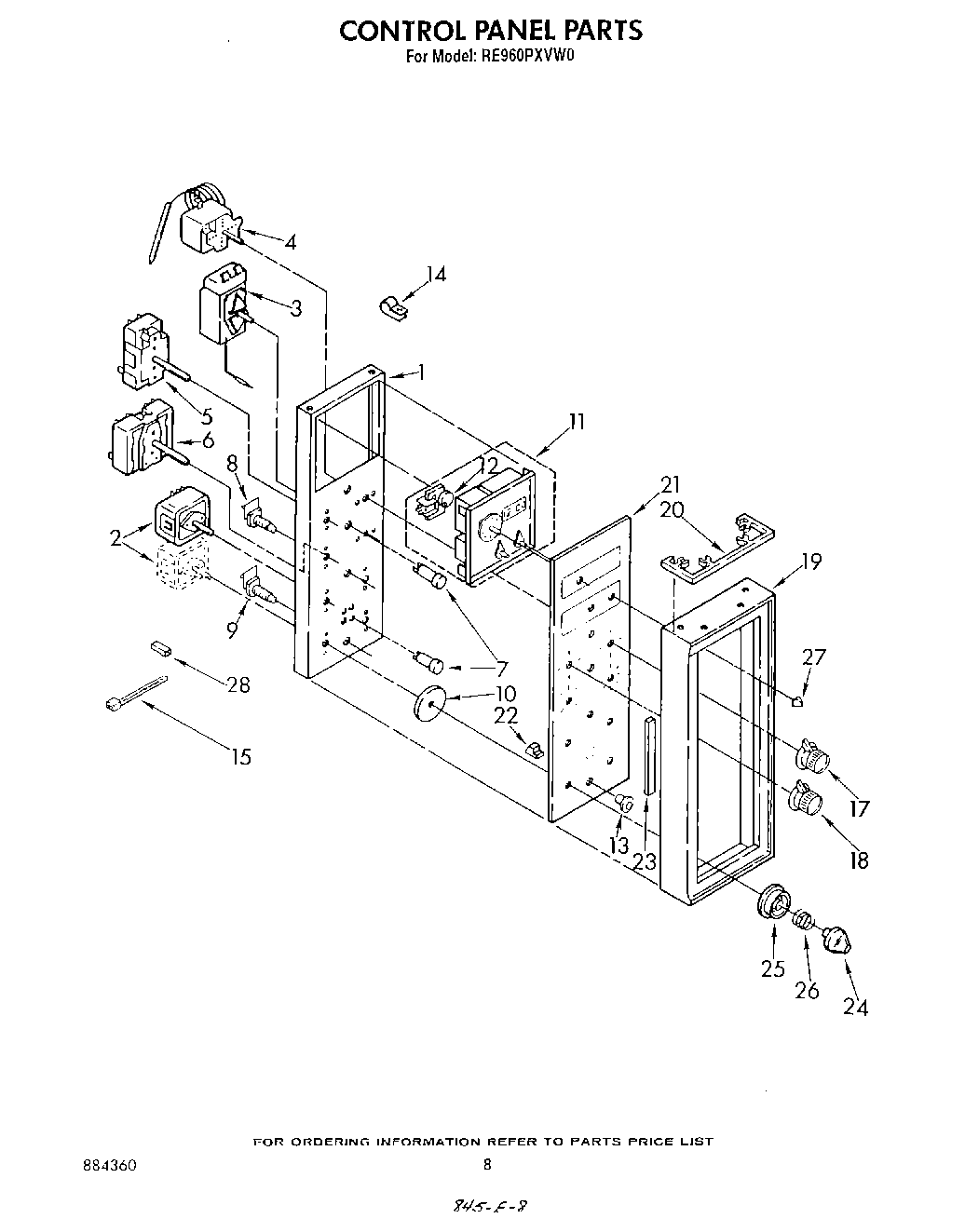

RE960PXVN0 05 – CONTROL PANEL

RE960PXVN0 05 – CONTROL PANEL

Written by

in

RE960PXVN0 05 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2switch, infinite (4)
3Thermostat, Oven (Pyro)
4Thermostat (Upper Oven)
5Switch, Selector (4 Position)
6Switch, Selector (Pyro)
6Screw, 8-32 x 3/16 (2)
7Indicator Light, Lock (1)
8Switch, Fluorescent Light
9Lockwasher
9Switch, Oven Light
10Skirt, Knob (4)
11WP488627 Whirlpool Refrigerator Screw
11WP313808 Whirlpool Screw
11Timer, Digital (Includes Illus. 12)
11SCREW
12Motor, Timer
13Bezel Switch (1)
14WP308685 Whirlpool Microwave Screw
14Strain Relief
14WP3390631 Whirlpool Screw
15WPW10339879 Whirlpool Wire Tie
17Knob, Thermostat
18Screw
18Knob, Selector
18WP688805 Whirlpool Spring Clip
19Screw, 10A x 2
19Frame, Control Panel
20Screw,
20filler, control panel
21Glass, Control Panel
22retainer, glass (10)
23Seal, Foam
24Knob, Control (4)
25bezel control knob (4)
26spring, bezel (4)
27WP3169181 Whirlpool Knob
27Spring (3)
28Housing, Receptical
